Marvell AQC 107 controller
Supports 16K frames
Supports IP, TCP, UDP checksum offloading – Reduced CPU usage
Supports IEEE 802.1Q VLAN ID tagging, IEEE 802.1q QoS
Includes an RJ45 port. Fast and easy networking without fiber
Compatible with 10GbE, 5GbE, 2.5GbE, Gigabit and 100MbE speeds
Compatible with ASUSTOR ADM (3.5.6 and above), Windows, MacOS, Linux and VMware ESXi
10Gbps fast network performance

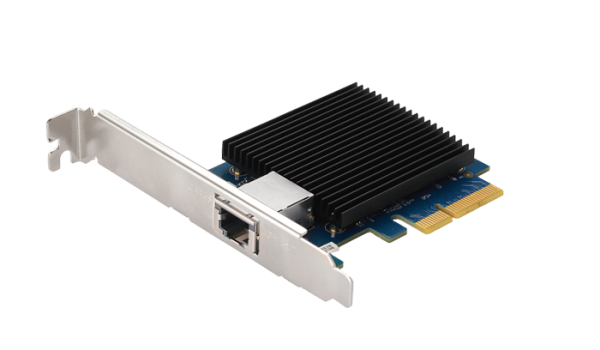

The AS-T10G2 is equipped with a 10-Gigabit RJ-45 port that delivers up to 10 times the performance than a typical Gigabit Ethernet connection. The AS-T10G2 is an affordable solution that is suitable for small and medium business as well as home users, breaking through traditional bottlenecks.
Excellent 10Gbps network performance
The AS-T10G2 provides incredible speeds of up to 1126 MB/s when reading and 1123 MB/s when writing when tested in the lab.
Complete Compatibility!
The AS-T10G2 works with any ASUSTOR NAS with a standard PCI Express slot, including the Lockerstor 12R Pro and 16R Pro as well as the Lockerstor 4RD, 4RS and 12RD. The AS-T10G2 is one of the best additions to a 10-Gigabit Ethernet network and is able to multiply network performance by up to 10 times the file transfer performance of Gigabit Ethernet in your home and/or office PC. The AS-T10G2 supports 100/1000/2500/5000/10000 speeds, making it incredibly versatile and compatible with virtually any network type. Insert an AS-T10G2 into any compatible ASUSTOR NAS running ADM 3.5.6 and above while installing another one to your desktop or workstation PC and connect them each to a 10-Gigabit Ethernet switch or router to experience blazing fast speeds using regular Ethernet cables.
Giving You Control
AS-T10G2 supports Quality of Service (QoS) technology, which gives you control over apps that use the network. Maintain smooth connections by allocating speed limits to specific programs and apps when needed. The AS-T10G2 gives you control over your speeds, allowing you to easily enjoy games, video conferencing and/or streaming without usage conflicts.。
Hardware Specifications
Supported Standards:
IEEE 802.3an: 10GBase-T Gigabit Ethernet
IEEE 802.3ab 1000Base-TGigabit Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3bz NBASE-T
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1p Priority Queuing
IEEE 802.3x: Flow Control and Back Pressure
IEEE 802.1Q Tagged VLAN support
IEEE 802.1Qav,AVB (Audio Video Bridging)
IEEE 1588 v2 PTP (Precision Time Protocol)
Maximum speed: 10 Gbps
Transmission mode:Full Duplex
Interface: PCI Express Gen-3/2 x4 Host Bus
Bracket support: Full-height, Low-profile
Operating temperature: 0-50°C
Non-operating temperatures: -40–85°C
Humidity: 5-95% relative humidity
Certifications: FCC, CE
Size and Weight
Size: 86.95 (W) x 67.9 (D) mm
Weight: 77 g
