Power for the power user Bringing Double Performance, and SSD Caching to the Small Business
Two 2.5 GbE ports with up to 5 Gbps under Link Aggregation
Dual M.2 NVMe SSD ports for fast caching
Overwhelming 4K experience
Intel Celeron quad core CPU – 30% faster than previous generation.
4GB DDR4-2400 – 30% faster than DDR3
Supports Wake on LAN and Wake on WAN

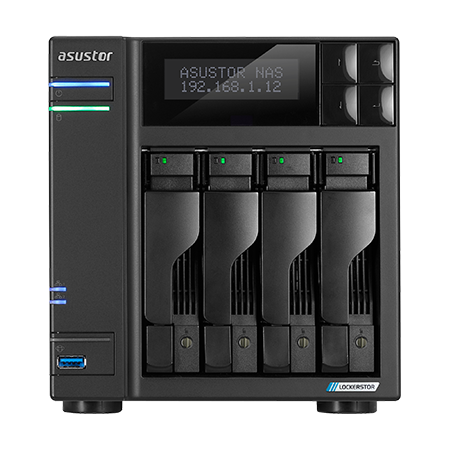

All New Hardware – Same Great Case
Two 2.5 GbE ports with up to 5 Gbps under Link Aggregation
Dual M.2 NVMe SSD ports for fast caching
Overwhelming 4K experience
Intel Celeron quad core CPU – 30% faster than previous generation.
4GB DDR4-2400 – 30% faster than DDR3
Supports Wake on LAN and Wake on WAN
360° Backup solution and enterprise virtualization application
MyArchive cold storage backups
Snapshot Center, Cloud Backup Center, DataSync Center
Complete iSCSI/IP-SAN and NFS support
VMware, Citrix and Hyper-V ready
Supports Virtualization and Docker apps
Powered by the latest Intel Celeron J4125 (Gemini Lake) quad-core processors
The Lockerstor 4 utilizes the Intel Gemini Lake Celeron J4125 Quad Core CPU and is 30% faster than Apollo lake. The Celeron J4125 also doubles the on-chip cache to 4MB, making the Lockerstor 4 one of our fastest NAS devices ever.
CPU
CPU Model
Intel Celeron J4125
CPU Architecture
x64 64-bit
CPU Frequency
Quad-Core 2.0GHz (burst up 2.70 GHz)
Memory
Memory
4GB SO-DIMM DDR4
Memory Module Pre-installed
4GB (1x 4GB)
Total Memory Slots
2
Memory Expandable up to
8GB (2x 4GB) Support mixed capacity
Flash Memory
8GB eMMC
Storage
Drive Bays
4
M.2 Drive Slots
2
Compatible Drive Type
3.5″ SATA HDD
2.5″ SATA HDD
2.5″ SATA SSD
M.2 2280 NVMe
Maximum Drive Bays with Expansion Unit
16

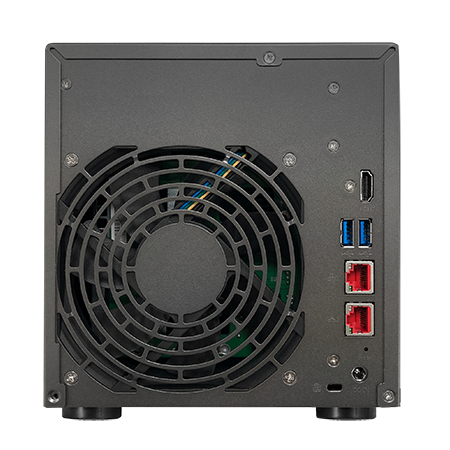

External Ports
Expansion
3x USB 3.2 Gen 1
Network
2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
HDMI Output
1x HDMI 2.0a
Others
System Fan
1x 120mm
Power Supply Unit / Adapter
90W x1
Input Power Voltage
100V to 240V AC
Certification
FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC
Warranty
3 Years
Operation
Power Consumption
27.6 W (Operation);
12.6 W (Disk Hibernation);
0.75 W (Sleep Mode)
Noise Level
17.6dB (HDD idle)
Operation Temperature
0°C~40°C (32°F~104°F)
Humidity
5% to 95% RH
Size and Weight
Size
185.5(H) x 170(W) x 230(D) mm
Weight
2.96 kg / 6.52 lb
