Description
  • Intel Xeon 9th generation Quad-Core CPU
  • Server-grade ECC memory: 8 GB ECC DDR4-2666 (Max 128GB, 32GB x 4)
  • 3U chassis design, 16 SATA drive bays
  • Dual M.2 NVMe SSD ports for fast caching
  • Complete iSCSI/IP-SAN and NFS support. VMware, Citrix and Hyper-V ready.
  • Supports Virtualization and Docker apps
  • PCIe slots for 10/25/40/50 Gigabit Ethernet cards as well as SAS cards.
  • Windows ACL support combined with Windows AD infrastructure enhances management efficiency for business applications

CPU
CPU Model Intel Xeon E-2224
CPU Architecture x64 64-bit
CPU Frequency Quad-Core 3.4GHz up to 4.6GHz

Memory
Memory 8GB DDR4 ECC UDIMM
Memory Module Pre-installed 8GB (1x 8GB)
Total Memory Slots 4
Memory Expandable up to 128GB (4x 32GB)
Support mixed capacity
Flash Memory 8GB USB DOM

Storage
Drive Bays 16
M.2 Drive Slots 2
Compatible Drive Type
3.5″ SATA HDD
2.5″ SATA HDD
2.5″ SATA SSD
M.2 22110 NVMe
M.2 2280 NVMe
M.2 2280 SATA 3
M.2 2260 SATA 3
M.2 2242 SATA 3
Maximum Drive Bays with Expansion Unit 40
Supports Hot Swappable Drives

External Ports
Expansion 4x USB 3.2 Gen 2 (10Gbps) Type-A ; 2x USB 3.2 Gen 2 (10Gbps) Type-C
Network 4x Gigabit Ethernet (1G/100M)
PCIe Expansion Slots 2x Gen3x4 slots (x4 link) ; 1x Gen3x8 slots (x8 link)
for optional 10/25/40/50 GbE card and SAS card
Multimedia Output N/A

Others
System Fan 3x 60mm
Power Supply Unit / Adapter 550W x2
Input Power Voltage 100V to 240V AC
Redundant power supply
Service LED Indicator
Certification FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS
Warranty 5 Years

Operation
Power Consumption 121.7W (Operation);
51.5W (Disk Hibernation)
7.55 W (Sleep Mode);
Noise Level N/A
Operation Temperature 0°C~40°C (32°F~104°F)
Humidity 5% to 95% RH

Size and Weight

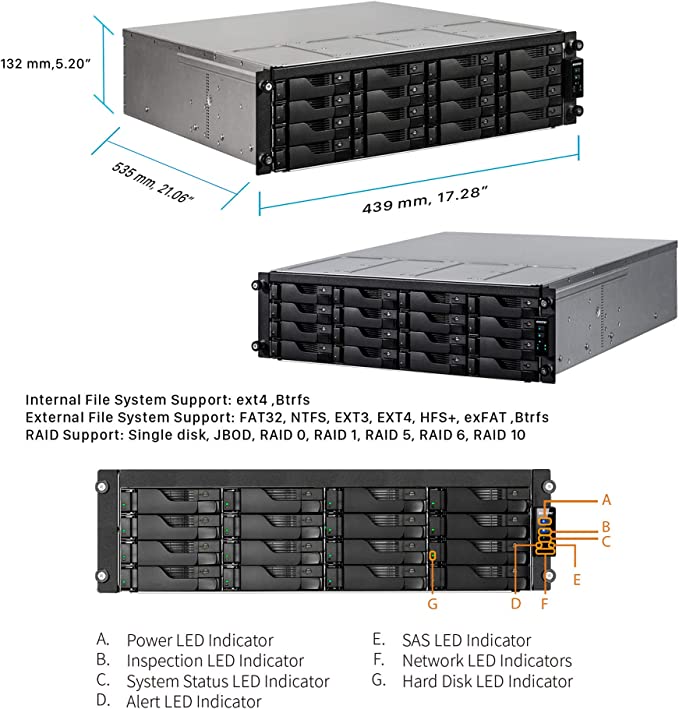

Size 132(H) x 439(W) x 535(D) mm
Weight 15.3 (kg) / 39.6(lb)
