Uncompressed 1080p60 for the pros
ExtremeCap UVC is created for DSLR or prosumer-grade video camcorders to improve your streaming,no matter where you go. Compact and convenient for any event, render premium quality images with maximum clarity with the ExtremeCap UVC. Capture any HDMI video source in purely unaltered 1080p60, without any lossy compression.

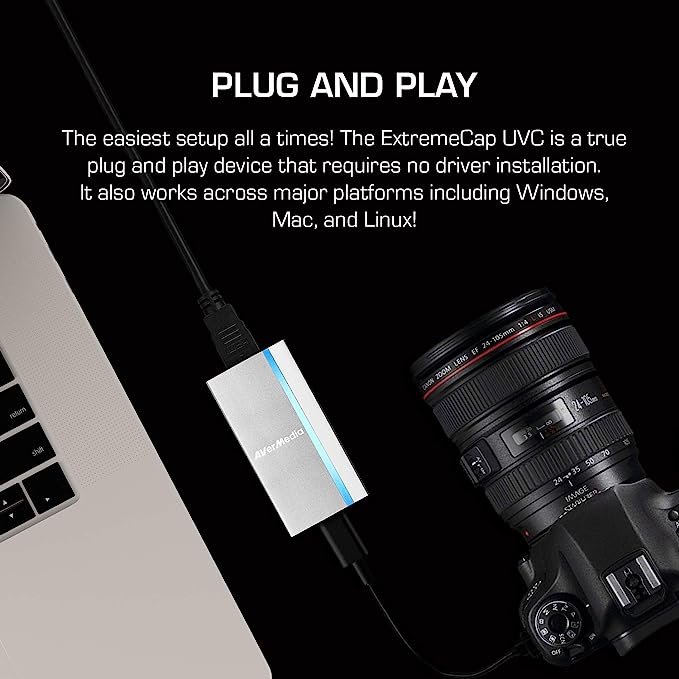

Plug and play
Yes, it’s that simple. The ExtremeCap UVC is a truly plug and play device that requires no driver installation.
It also works across major platforms including Windows, Mac, and Linux.
Superb third-party software support
Another benefit of the ExtremeCap UVC is its compatibility with many third-party streaming software applications like OBS, XSplit, StreamlabsOBS, and more.
Pro streaming on the go
Simply connect a DSLR to your cell phone* through ExtremeCap UVC, open a streaming app** that supports USB camera, and you’re ready to stream high quality videos up to 1080p60 at live conferences and events.。
Interface:
USB 3.0 (plug and play, UVC)
Input:
HDMI
Output:
USB 3.0 Type-C (USB 2.0 compatible)
Output format:
MJPEG, YUY2
Audio sampling rate:
48 KHz PCM over HDMI
Resolutions:
640×480, 720×480, 720×576, 800×600, 1024×768,
1280×720, 1280×1024, 1600×1200, 1920×1080
Dimensions (W x D x H):
85 x 43 x 17 mm
Weight: 82 g
System Requirements:
Windows® 10 / Windows 8.1 / Windows 7 (SP1)
Desktop: Intel® Core™ i5-4440 3.10 GHz + NVIDIA® GeForce® GTX 660 or above
Laptop: Intel Core i7-4810MQ + NVIDIA GeForce GTX 870M or above
4 GB RAM (8 GB recommended)

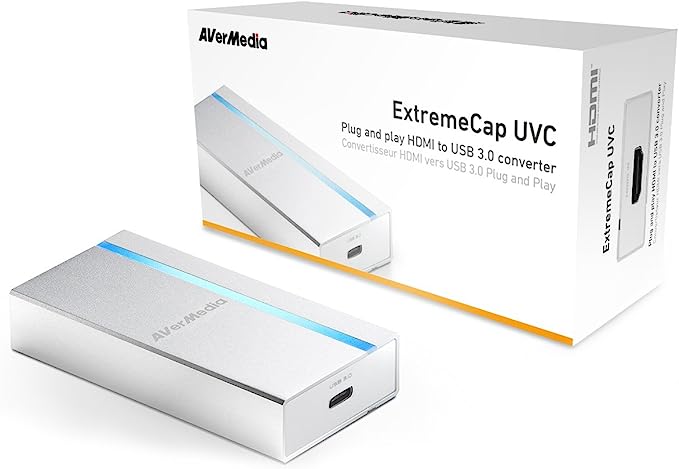

In the Box
ExtremeCap UVC
USB Type-C cable
Quick guide
