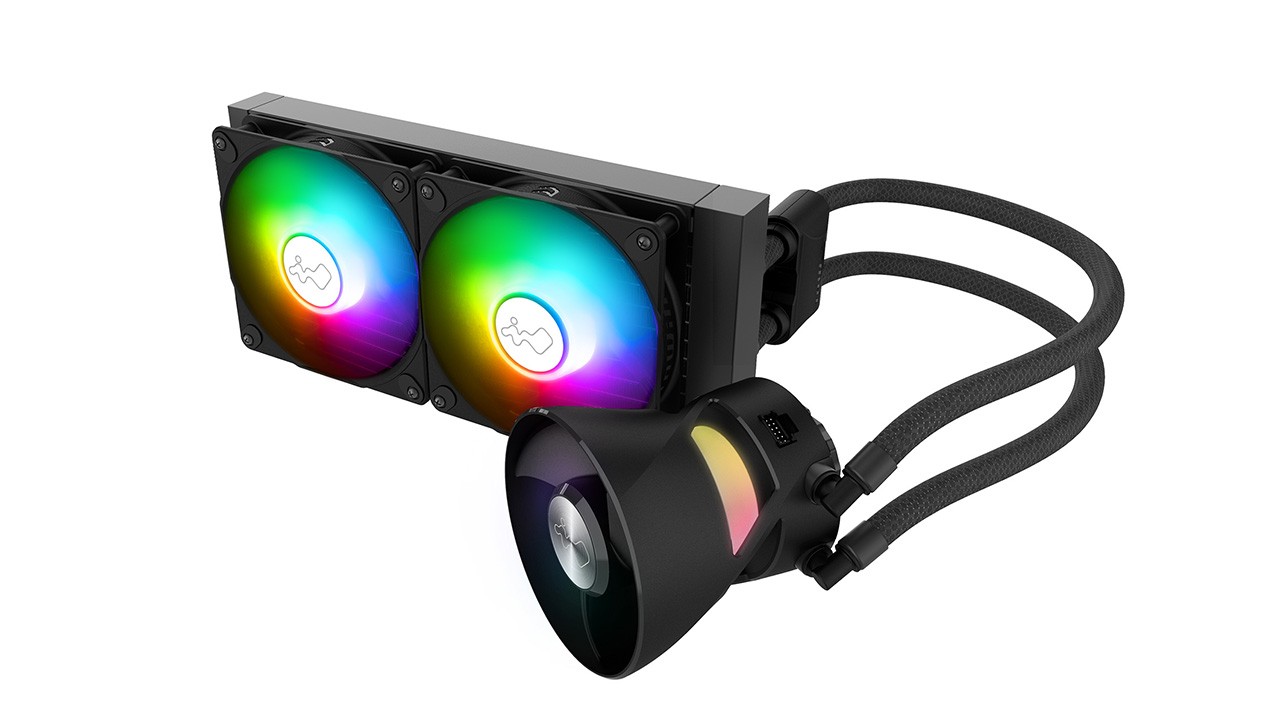

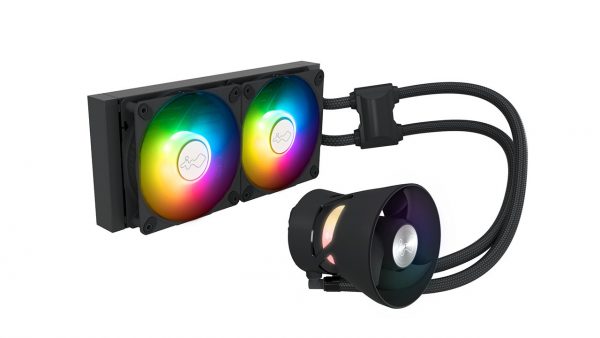

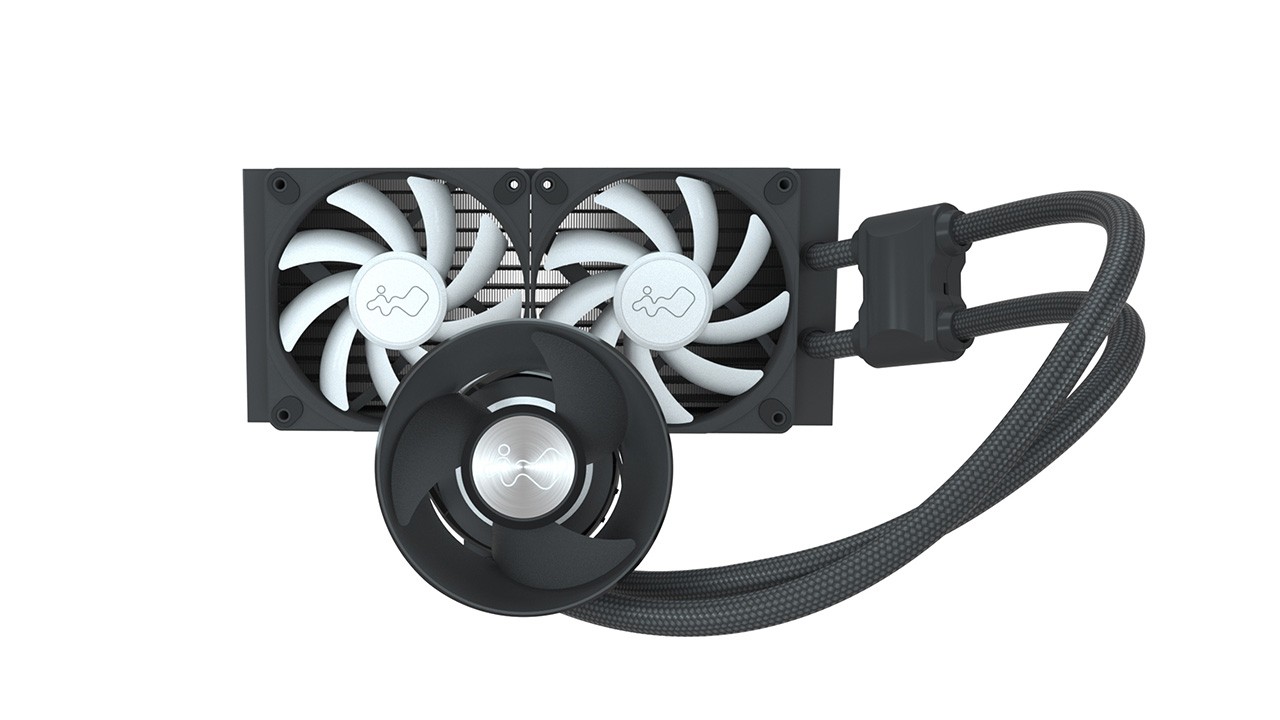

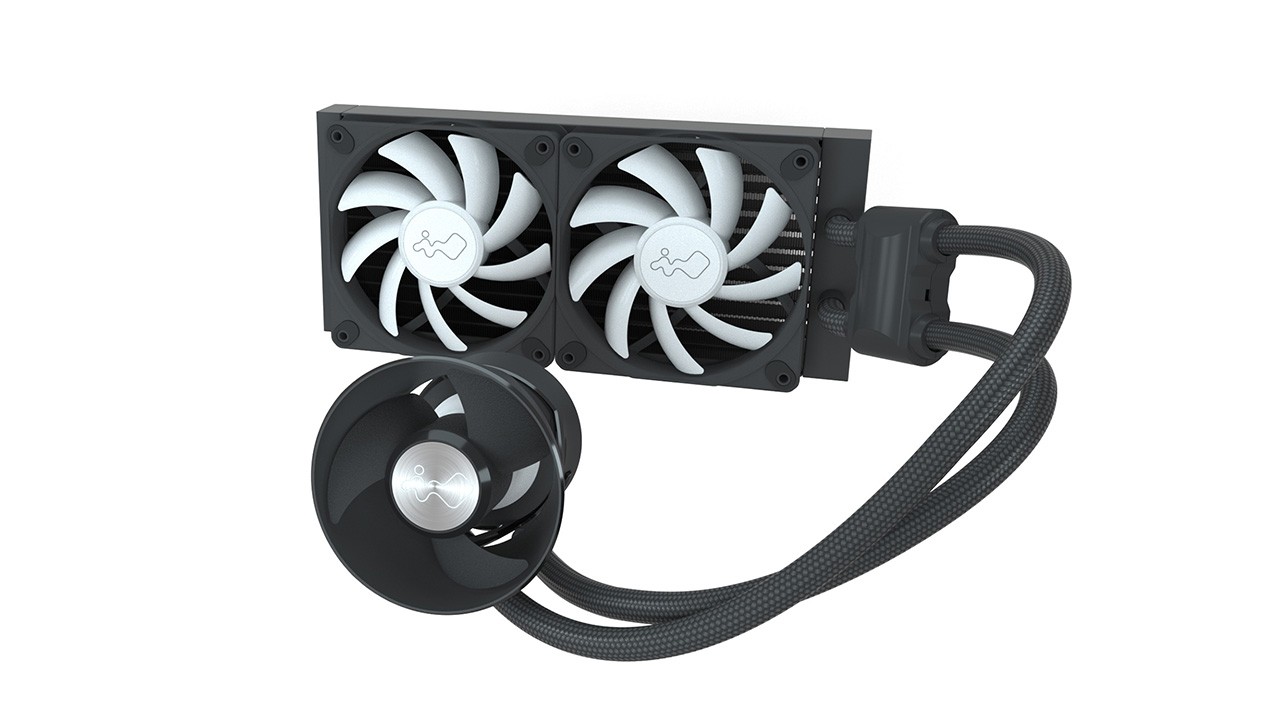

BR Series PUMP
– LIQUID CPU + UMA COOLING DESIGN IN 1 SOLUTION.
(UPPER MOTHERBOARD AREA)
– UNIQUE PUMP DESIGN ON TUBES
– ADDRESSABLE RGB WITH CONTROLLER INCLUDED
– PUMP SPEED: 5200 RPM (+10%)
– FAN SPEED: 2400 RPM (+10%)
Model
BR24
Model Number
IW-LC-BR24
CPU Socket Support
Intel® LGA 1700/ 1200/ 2066/ 2011-V3/ 2011/ 1366/ 1156/ 1155/ 1151/ 1150
AMD® AM5/ AM4/ AM3+/ AM3/ AM2+/ AM2/ FM2+/ FM2/ FM1/ TR4
Radiator
Dimensions
(L x W x H)
277 x 120 x 27 mm
10.9 x 4.7 x 1.1″
Material
Aluminium
Tube Length
400 mm
Tube Material
Rubber with Nylon Braided Sleeve
Water Block
Dimensions
(L x W x H)
100 x 75 x 100 mm
3.9 x 2.9 x 3.9″
Materials
Copper, Plastic
Fan Speed Mode
PWM 400 – 2500 +/- 10% RPM
Fan Airflow
26.93 CFM (Max.)
Fan Air Pressure
2.28 mm/ H2O
Fan Bearing Type
Long Lifespan Sleeve Bearing

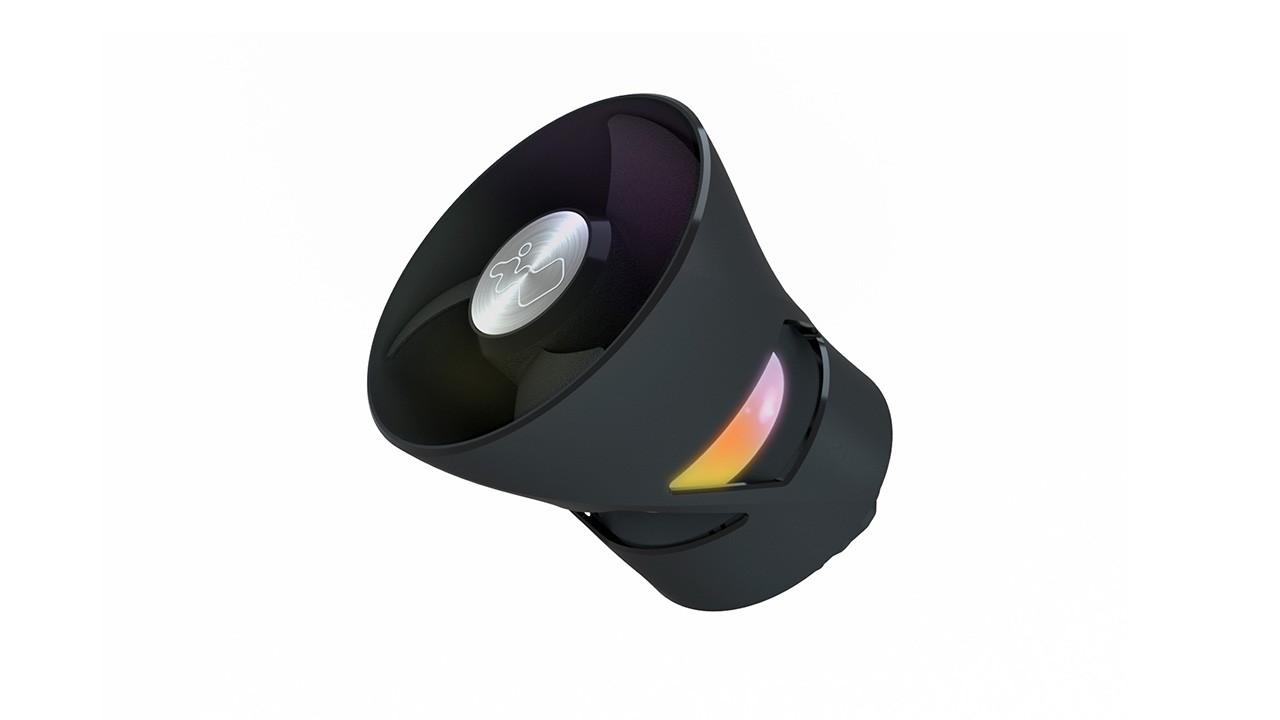

Pump
Dimensions
(L x W x H)
65 x 50 x 31 mm
2.6 x 2.0 x 1.2″
Materials
PPS, GF
Pump Speed
5200 RPM +/- 10%
Fan
Model Luna Series AL120
Quantity Included
2 PCS
Dimensions
(L x W x H)
120 x 120 x 25 mm
4.7 x 4.7 x 1.0″
Speed Mode
PWM 600 – 1800 +/- 10% RPM
Noise Level
35.5 dBA (Max.)
Airflow
82.96 CFM (Max)
Air Pressure
2.31 mm / H2O
Connectors
4-Pin (12V, PWM), 3-Pin (5V, ARGB)
Rated Voltage
DC 12V
Bearing Type
Long Lifespan Sleeve Bearing

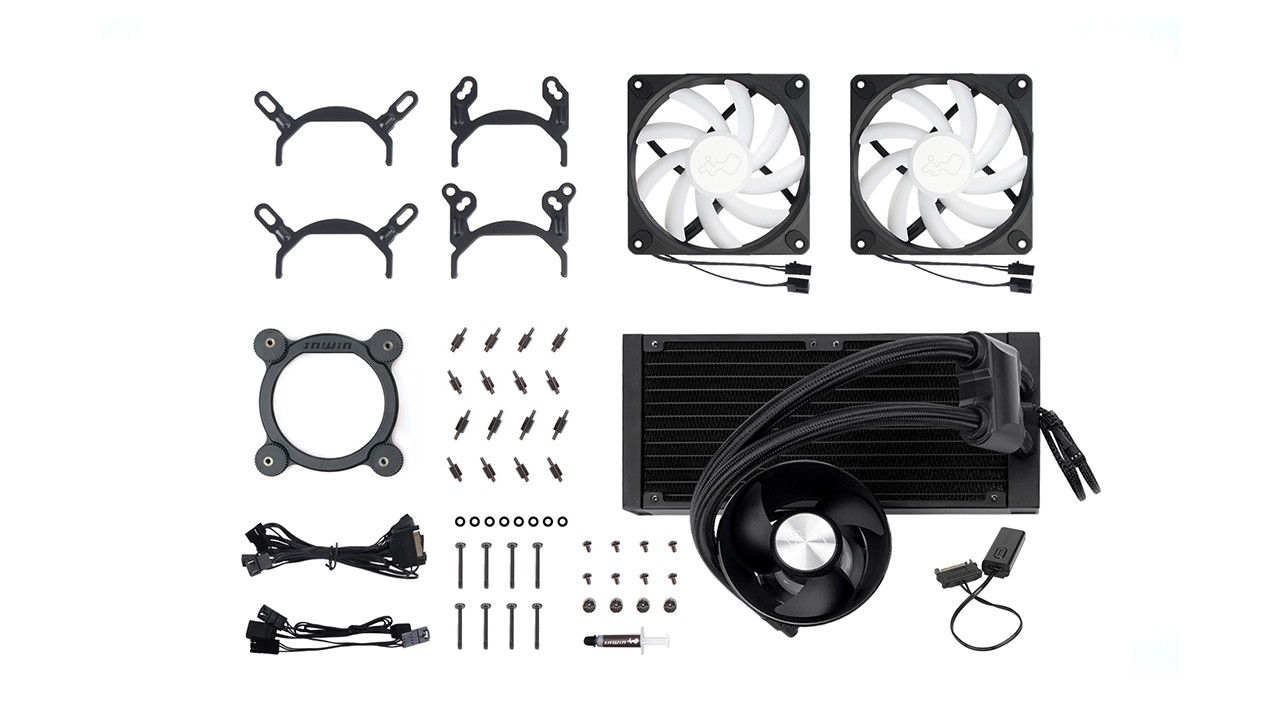

Package Contents
InWin BR series 240mm CPU Liquid Cooler x 1
InWin AL120 Addressable Fan x 2
ARGB One-Click Controller
Fan and Radiator Mounting Screws Pack
Mounting Kit for CPU Sockets
Cable Pack
Package Dimension
(L x W x H)
331 x 265 x 136 mm
13 x 10.4 x 5.3″
Net Weight
0.9 kg / 2 lb
Gross Weight
2.1 kg / 4.6 lb
Warranty
3 Years
