– 11.9L SLIM SMALL FORM FACTOR

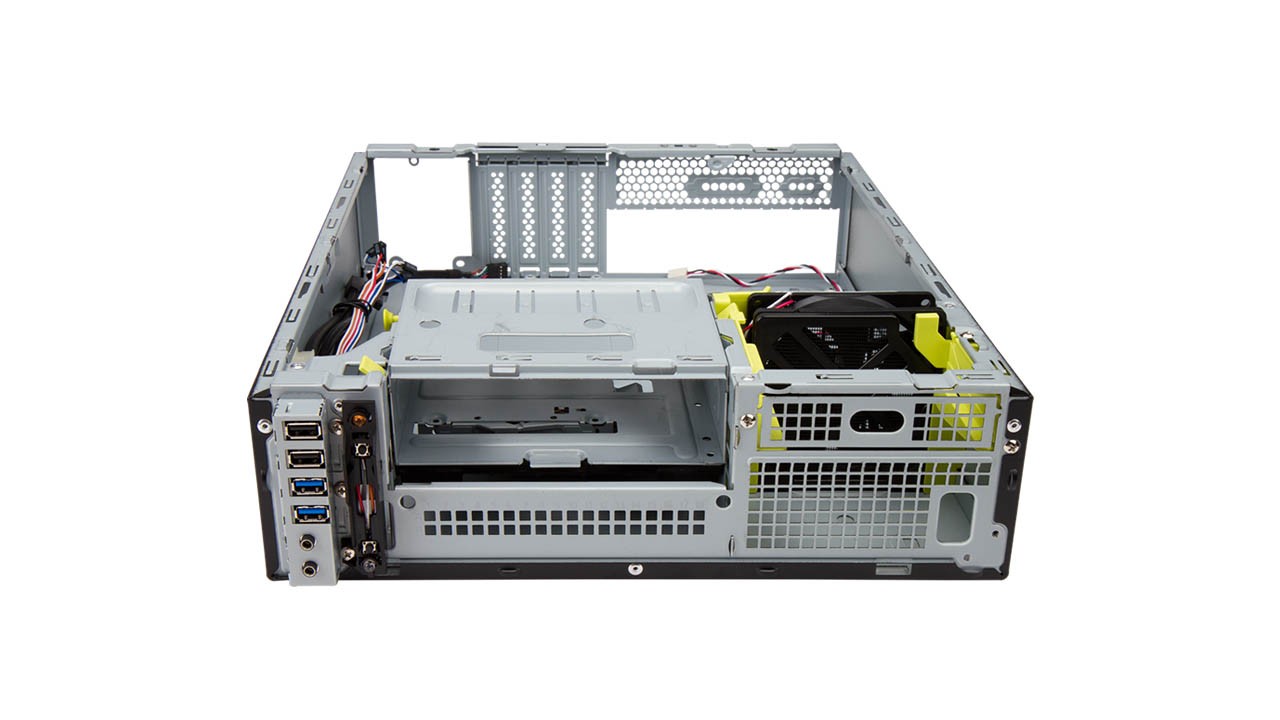

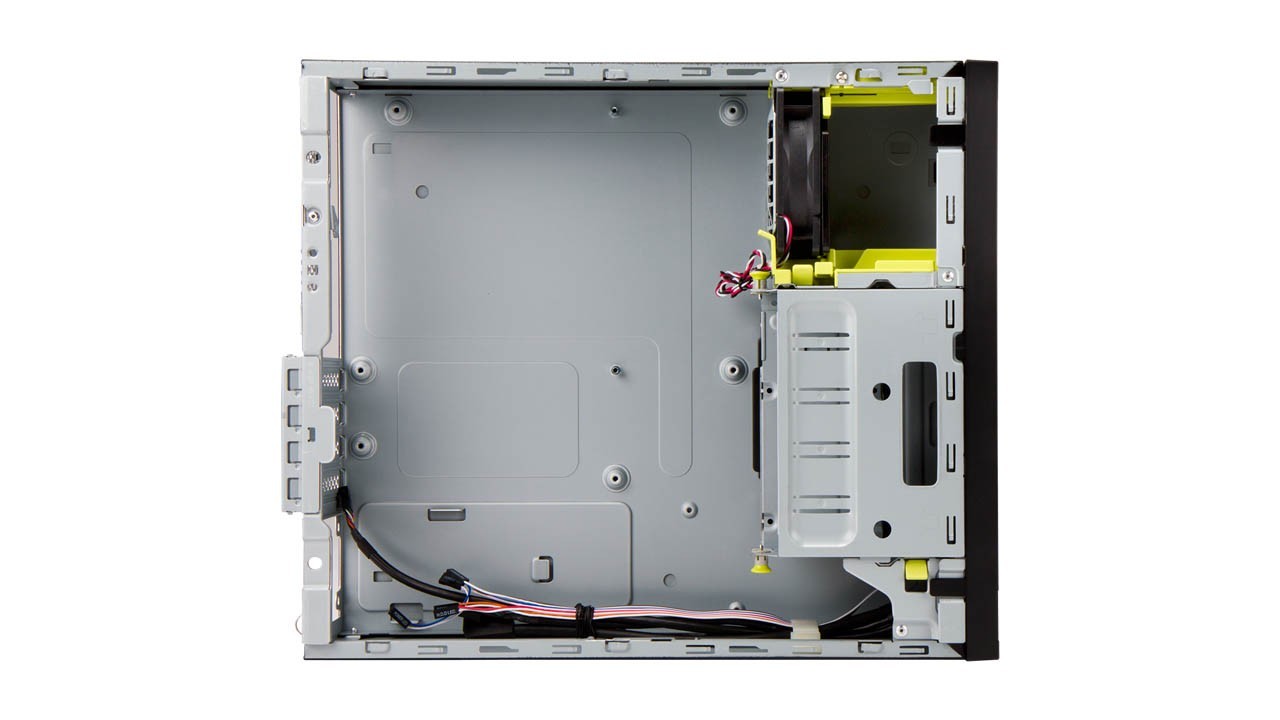

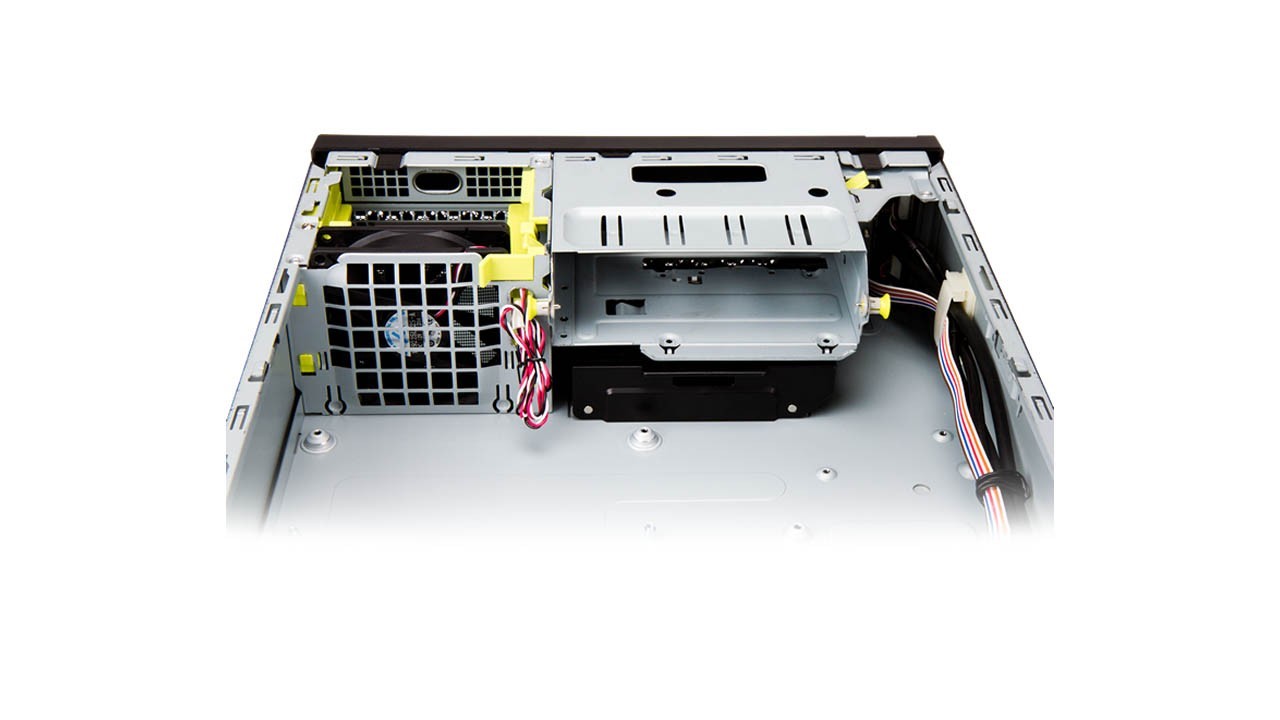

– TOOL-FREE INTERNAL DESIGN FOR BAY AND PCIE SLOTS
– BAYS: 1x SLIM ODD BAY (9.5mm THICKNESS)
– PORTS: 2x USB3.0 | 2X USB2.0 | HD AUDIO
– DRIVE: 1x 3.5″ | 1x 2.5″
– CPU HEATSINK HEIGHT: 45mm MAX
– 300W 80+ BRONZE PSU INCLUDED
– PADLOCK LOOP / KENSINGTON SLOT
Model
CE052
MB Form Factor
Micro-ATX / Mini-ITX
Case Size
11.9L
S.F.F Slim Chassis
Color
Black
External Drive Bays
5.25″ x 1, 3.5″ x1 (Up to 92mm)
Internal Drive Bays
3.5″ x 1, 2.5″ x 1
Front Ports
USB 3.0 x 2, USB 2.0 x 2,
HD Audio
Product Dimensions
(H x W x D)
Front Panel
334 x 97 x 402 mm
(13.1” x 3.8” x 15.6”)
Product Dimensions
(H x W x D)
w/o Front Panel
334 x 96 x 370 mm (11.9L)
13.1″ x 3.8″ x 14.6

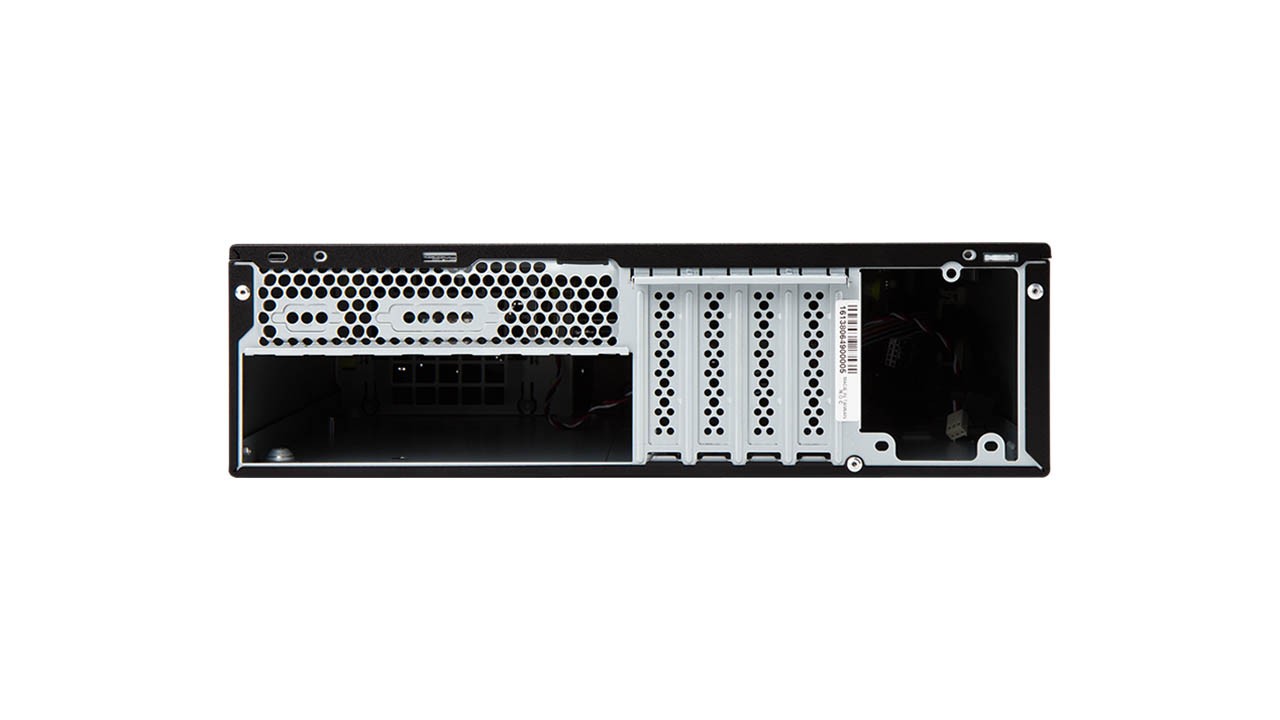

I/O Expansion Slots
Low Profile Slot x 4
Model
CE052
Compatibility
．Maximum Graphics Card Length / Width: 187 mm / 80 mm
．Maximum CPU Cooler Height: 81 mm
Power Supply
Standard TFX 12V Form Factor
Thermal Solution
．90mm Front Fan x 1
．Supports Removable Air Filter
Safety
Meets RoHS, CE and FCC Class B Requirements
Security
Padlock Loop / Kensington Slot
Optional
．5.25″ to 3.5″/2.5″ HDD Bracket
．Removable Air Filter
．Type-C 3.2 Gen 2 x 2 (10 Gbps x 2)
．Chassis Intrusion Switch
．Tool-Free Side Cover
．Key Lock Side Panel
Packing Dimensions
(H x W x D)
475 x 400 x 153 mm
(18.7” x 15.7” x 6”)
Shipping Information
Single Packing:
-20’: 1,040, 40’: 2,152 40’ H: 2,443
Single Packing + Pallets:
-20’: 700, 40’: 1,680, 40’ H: 2,016
