80 PLUS® Gold Certified with Up to 90% Conversion Efficiency
The P Series delivers up to 90% efficiency, generating less heat and effectively reducing operating cost.
5V and 3.3V DC to DC Design
The P Series is equipped with a DC to DC converter design, that provides a superior dynamic response, and supports a foundation for greater system stability.
Highly Reliable Japanese Aluminium Electrolytic Capacitors
Premium Japanese capacitors with 105°C rating improves power stability at higher temperatures and provides an ultra-long lifespan.
Multi-Protection Safeguards
The P Series comes with plenty of safety protections safeguards. These precautions are to ensure quality and a safe power usage.
Fully Modular with High Quality Flat Cables
The fully modular and flexible flat cables allow builders limits the cables present in a PC. Easier cable management results in cleaner builds with better airflow
Model
P65
Model Number
IW-PS-P650W
Total Power
650W
Material
SECC
Type
ATX12V V2.4
EPS12V V2.92
Cable Management
Fully Modular
PFC
Active PFC ( >0.95)
Efficiency
80 PLUS® Gold (Up to 90%)
MTBF (Hours)
>100,000 hrs.
AC Input
100-240Vac.,10A, 50-60Hz

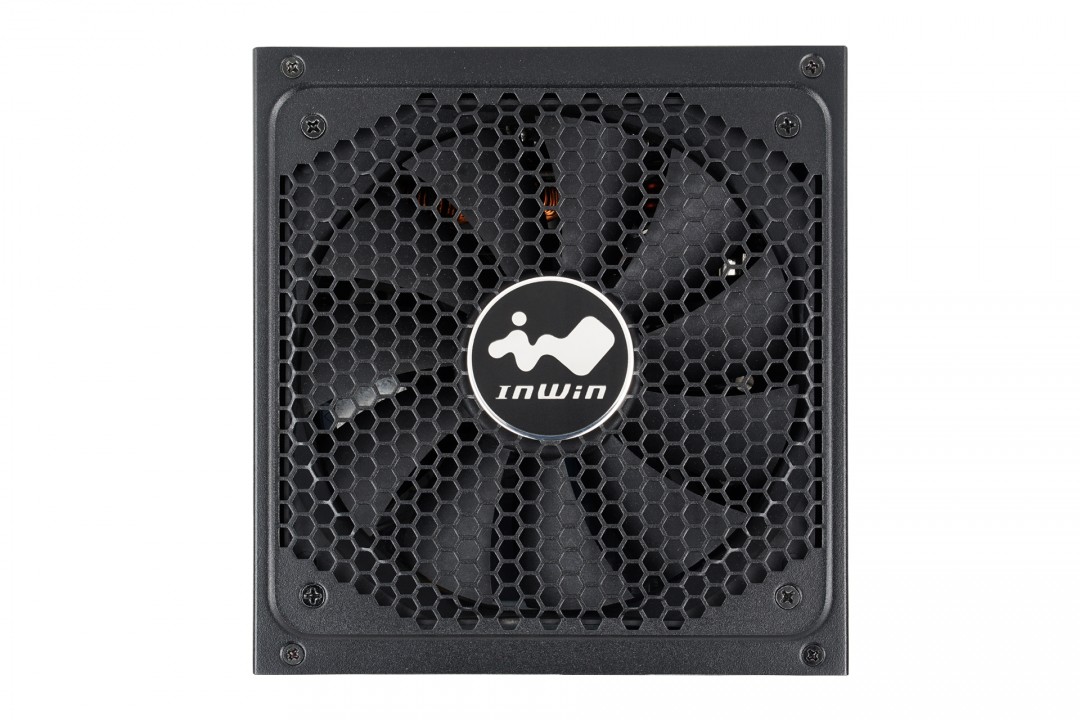

Fan
135mm FDB Fan
Typical Load Fan Noise(dBA)
(50% Loading) <25dBA
Operating Temperature Range (°C)
0~40 °C
Full Protection
OCP/ OVP/ UVP/ SCP/ OTP/ OPP
Safety Certifications
cTUVus/ TUV/ CB/ BSMI/ CE/ FCC/ EAC/ CCC/ RCM
Dimensions (L x W x H)
160 x 150 x 86mm
Package Dimensions (L x W x H)
210 x 325 x 100mm
Net Weight
2.35 kg
Gross Weight
2.81 kg
Warranty
5 Years

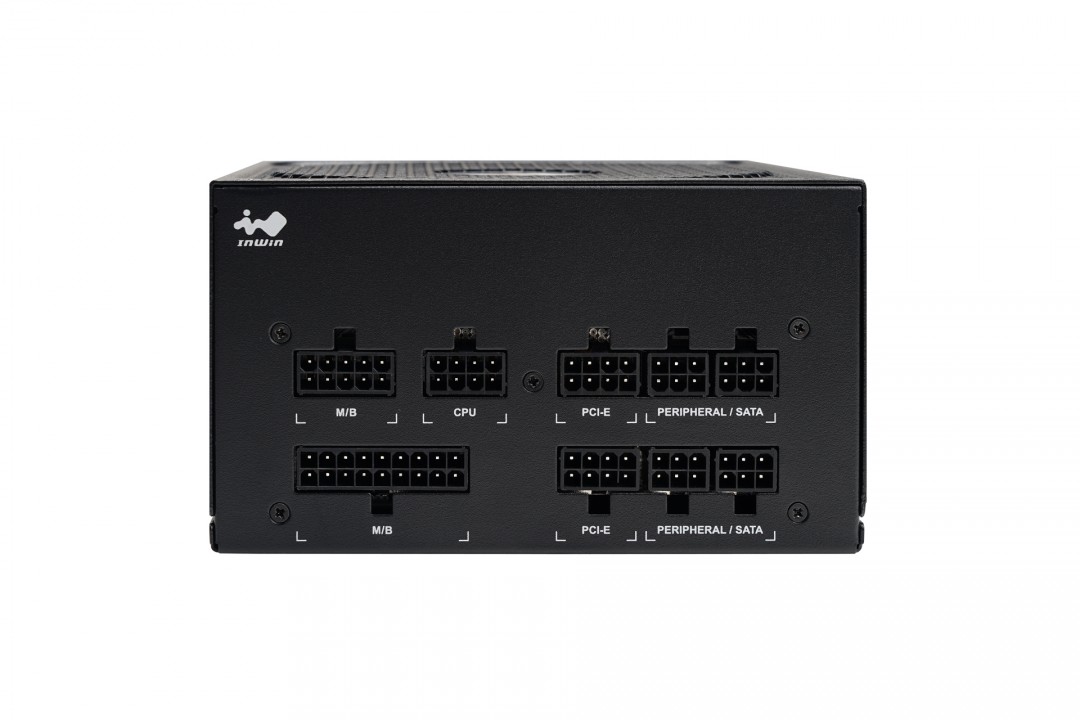

Connectors
20+4 Pin Motherboard
1
8 (4+4) Pin CPU
1
8 (6+2) Pin PCI-E
4
4 Pin Peripheral
4
SATA (90 Degree)
9
Floppy
1
* InWin products comply with RoHS regulations.
* Specifications may vary based on different regions.

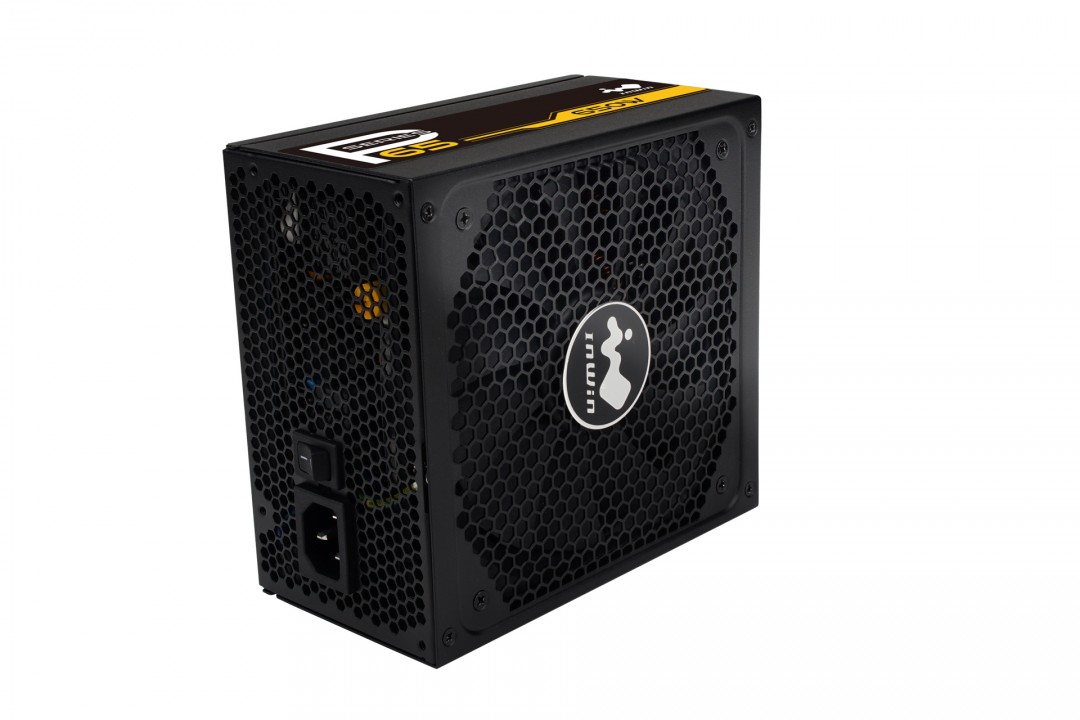

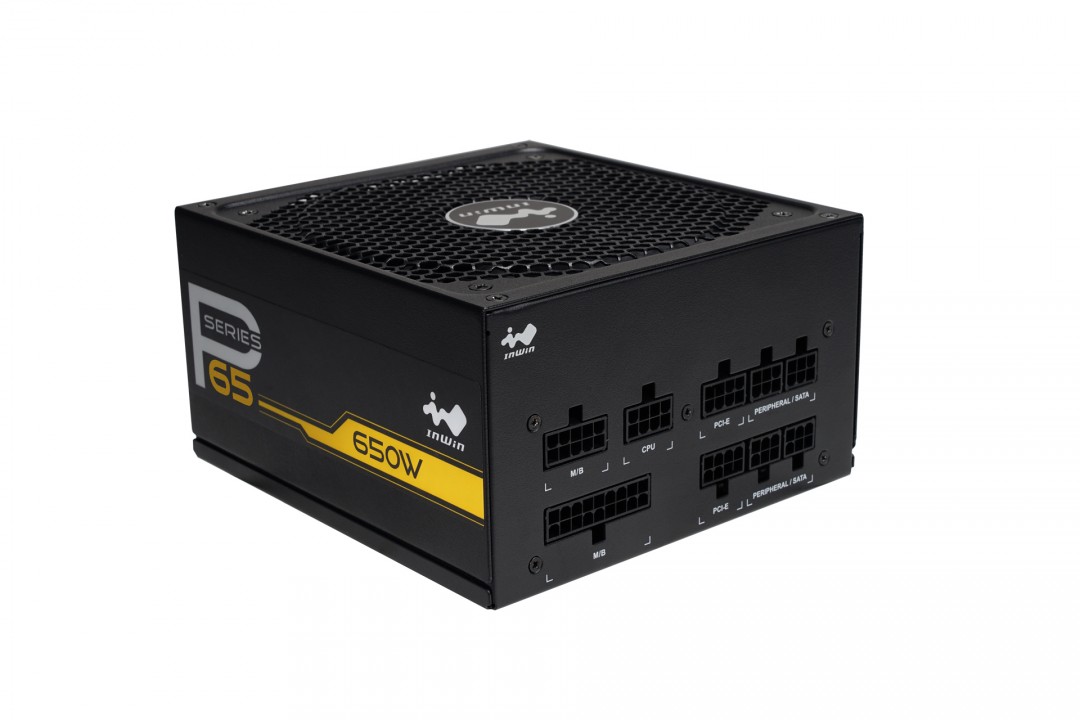

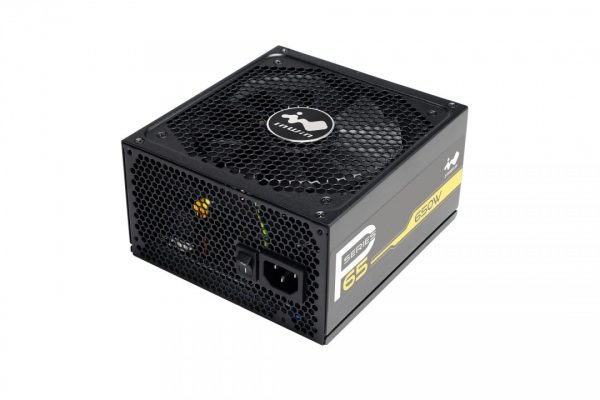

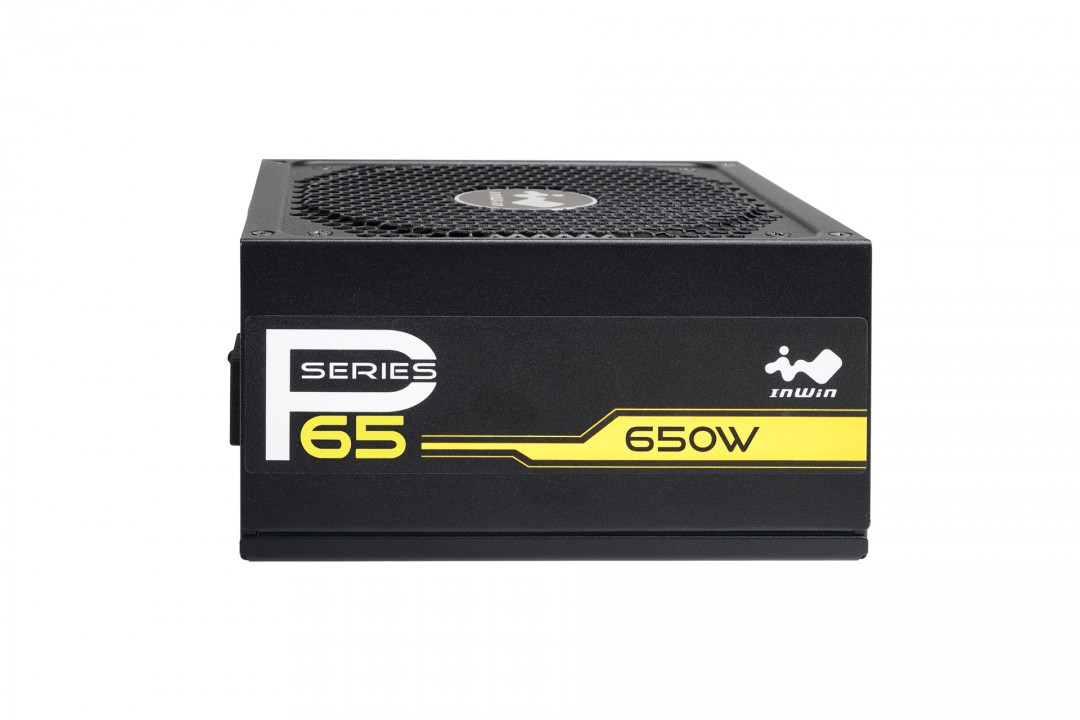

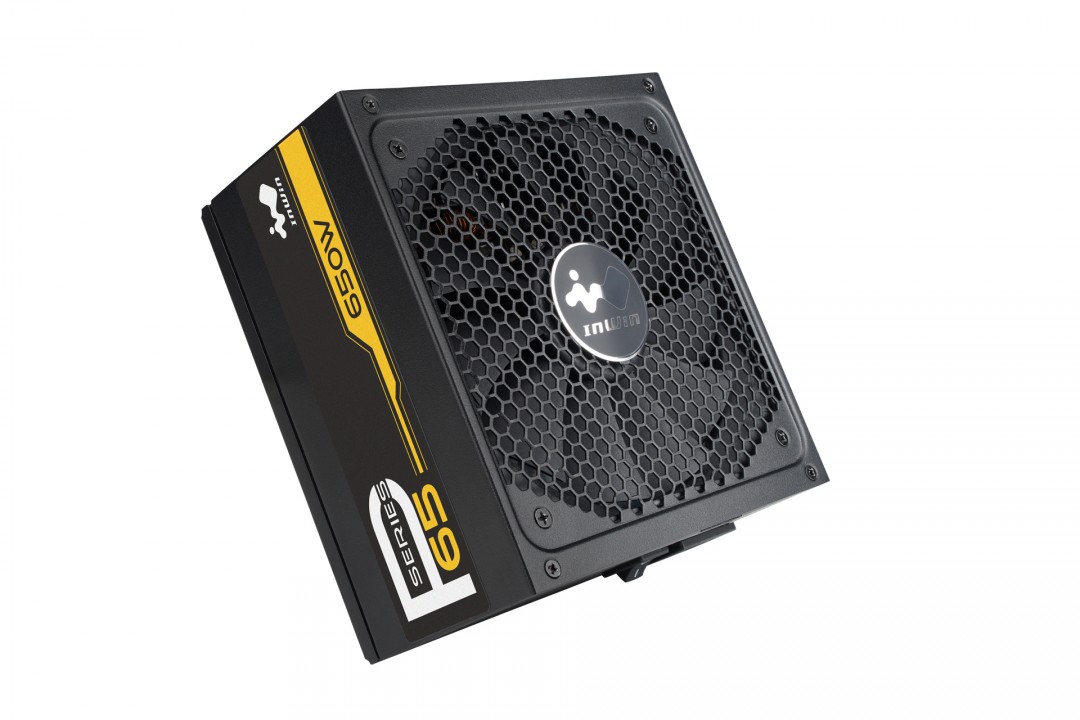

P65 650W
