SR36 PRO 360

SGD 191.74

Availability:Out Of Stock

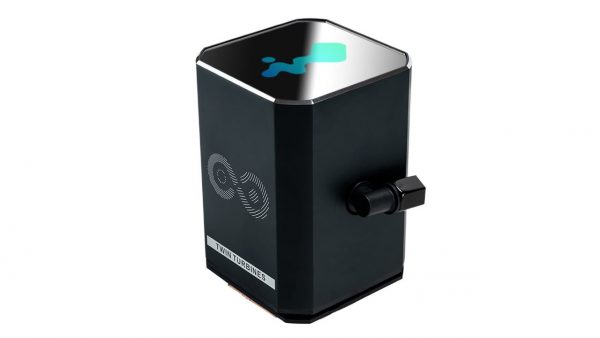

Patented Integrated Twin Turbines

The patented twin-turbine function pushes both currents toward the copper cold-plate to significantly reduce the temperature.



Rock the Aluminium Block!

The gorgeous water block shell is made of anodized aluminium alloy with laser engraving and is complemented with a diamond-cut outline.

Enhanced AIO Thermal Performance

To provide excellent thermal performance, the cooling surface matters! InWin improved the radiator and the array of microchannel fins to increase the heat conducting efficiency!

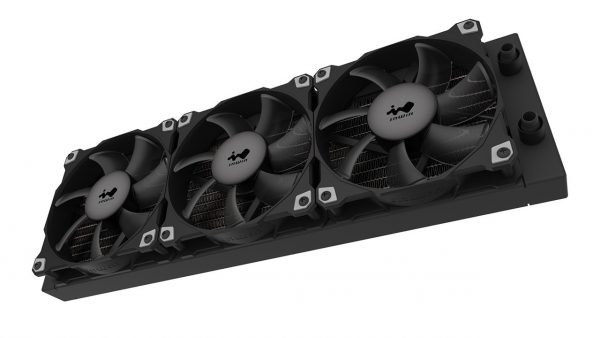

Thriving Under Pressure!

The Jupiter Series AJF120 fans are specially designed for liquid-cooling. The fans feature high airflow, high static pressure and possess a high-speed mode that ramp up the RPMs to 2500.

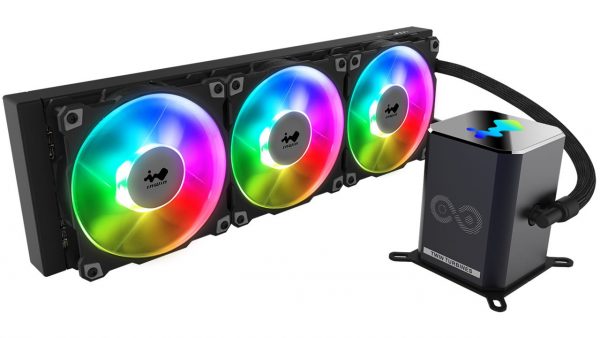

Syncs with Addressable Motherboards

The SR PRO is equipped with a vibrant ARGB logo, and also comes with Jupiter AJF120 ARGB static pressure fans. Control the lighting by using the provided One-Click controller or sync with an ARGB motherboard.

Cautionary LEDs

When the fans or pumps detect an unusual current or excessive heat, the LEDs will flash red and blue to prevent damaging components.



Model
SR36 PRO

Model Number
IW-LC-SR36PRO

CPU Socket Support
Intel® LGA 1200/ 2066/ 2011-V3/ 2011/ 1366/ 1156/ 1155/ 1151/ 1150
AMD® AM4/ AM3+/ AM3/ AM2+/ AM2/ FM2+/ FM2/ FM1/ TR4

Radiator
Dimensions
(L x W x H)
397 x 120 x 27 mm
15.6 x 4.7 x 1.1″

Materials
Aluminium

Tube Length
400 mm

Tube Material
Rubber with Nylon Braided Sleeve

Water Block & Pump
Dimensions
(L x W x H)
68 x 68 x 100 mm
2.7 x 2.7 x 3.9″

Materials
Aluminium, Copper, Acrylic

Pump Speed
2400 ± 10% RPM

Fan
Model Jupiter Series AJF120
Quantity Included 3 PCS
Dimensions
(L x W x H)
120 x 120 x 26 mm
4.7 x 4.7 x 1.0″
Speed Mode (PWM)
PWM 500-2500 ± 10% RPM
Noise Level
23 dBA (Normal)

Airflow 101.5 CFM Max.
Static Pressure 4.22 mm / H2O
Connectors 4-Pin (12V, PWM),
3-Pin (5V, ARGB)
Bearing Type Double Ball Bearing

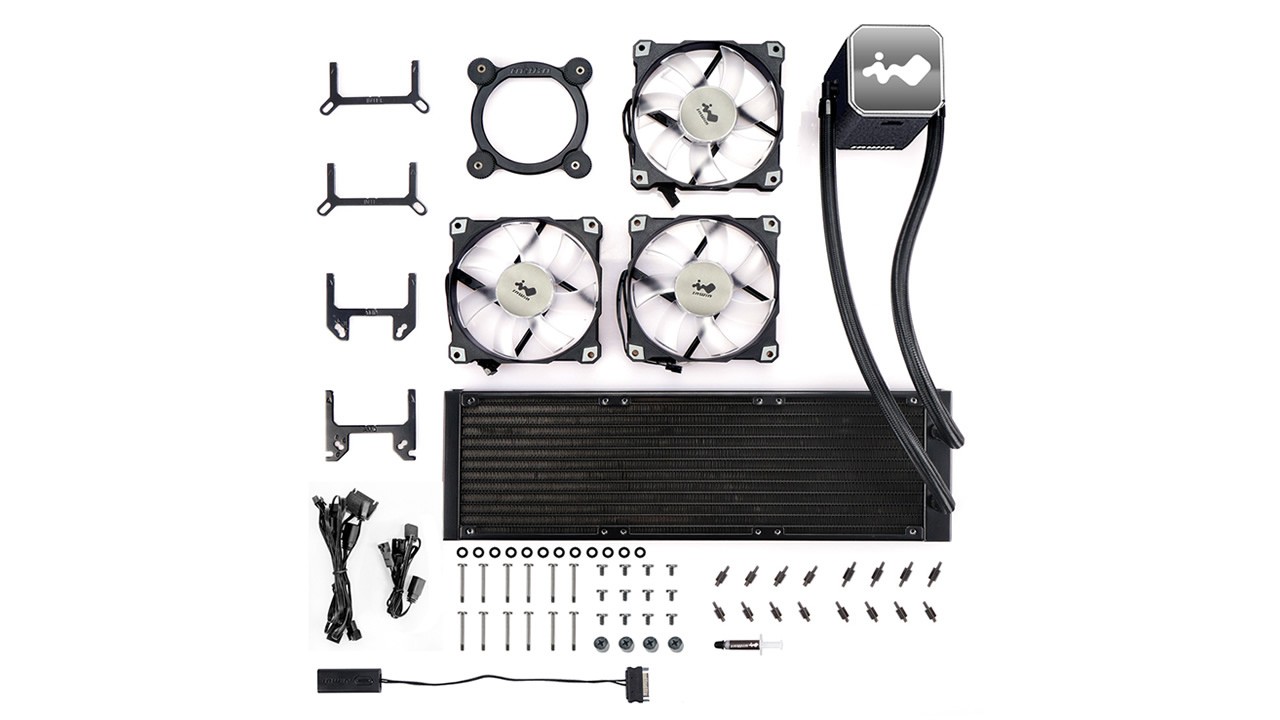

Package Contents
InWin SR PRO Series 360mm CPU Liquid Cooler x 1
InWin AJF120 Addressable Fan x 3
ARGB One-Click Controller
Fan and Radiator Mounting Screws Pack
Mounting Kit for CPU Sockets
Cable Pack

Package Dimension
(L x W x H)
459 x 244 x 142 mm
18.1 x 9.6 x 5.6″

Net Weight
2.2 kg / 4.9 lb

Gross Weight

2.8 kg / 6.2 lb

Warranty
5 Years
