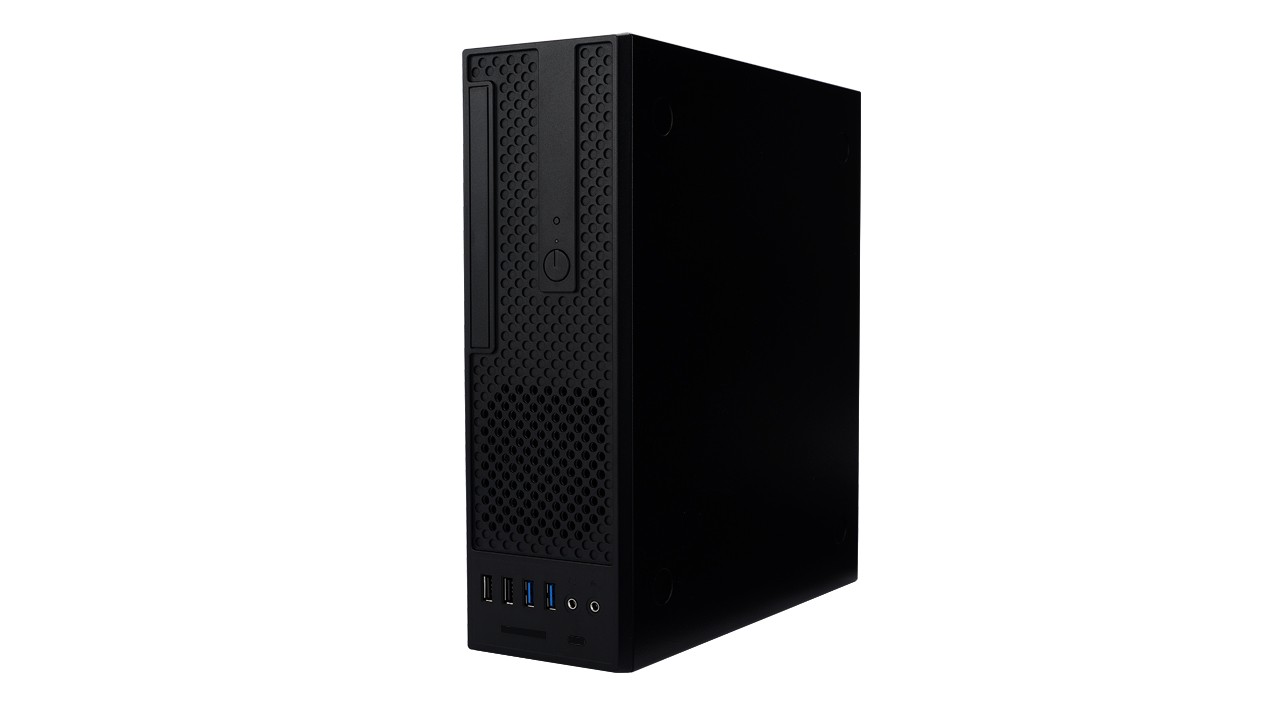

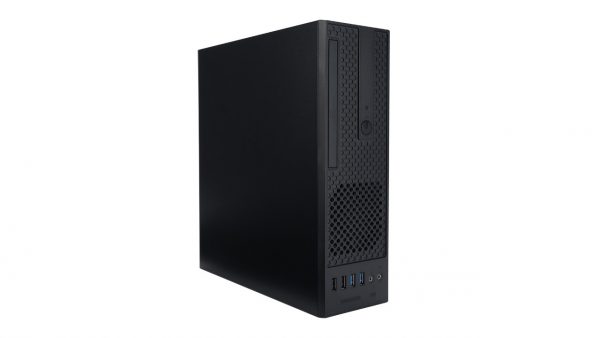

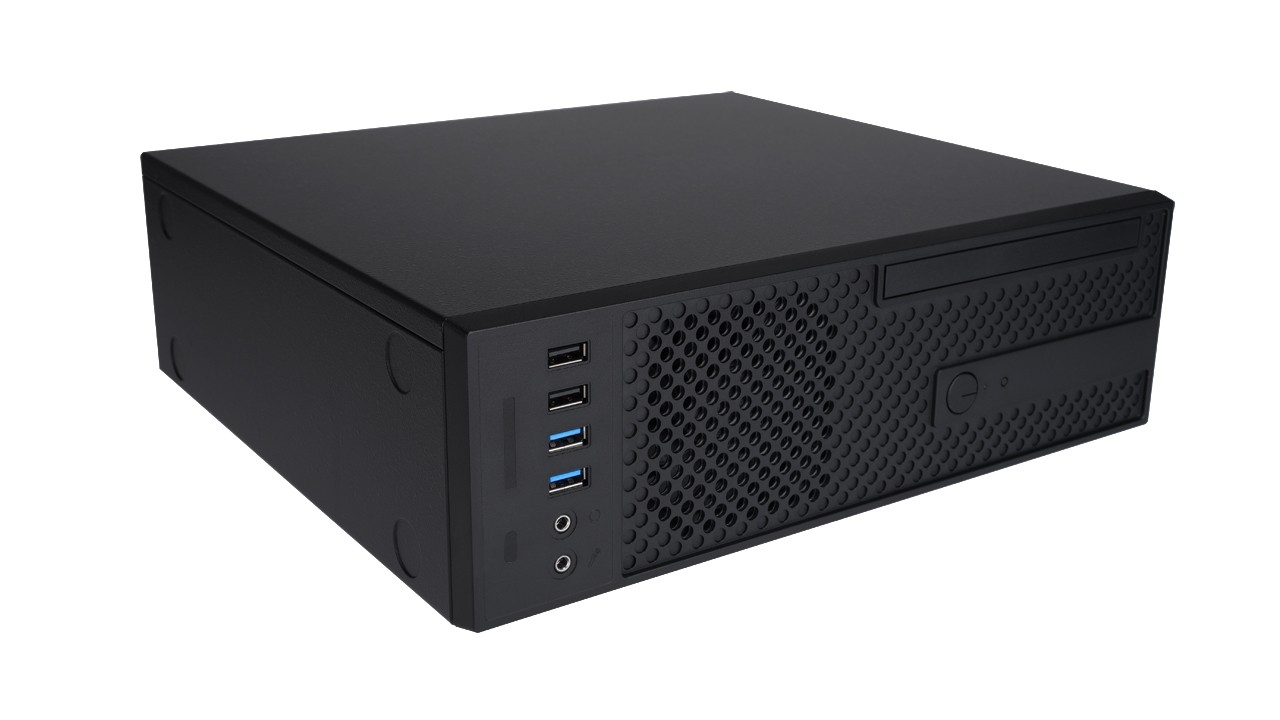

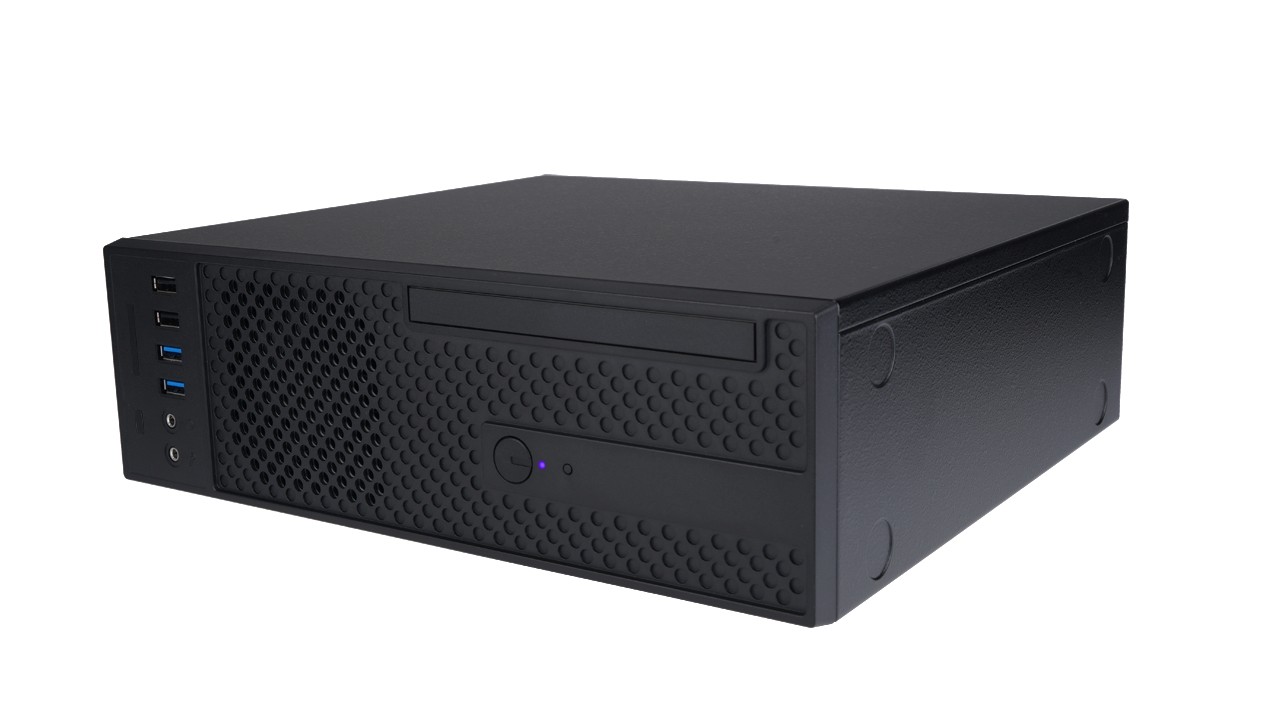

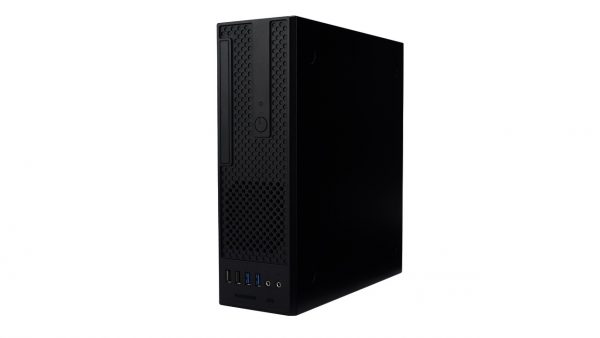

– 8L ULTRA SMALL FORM FACTOR

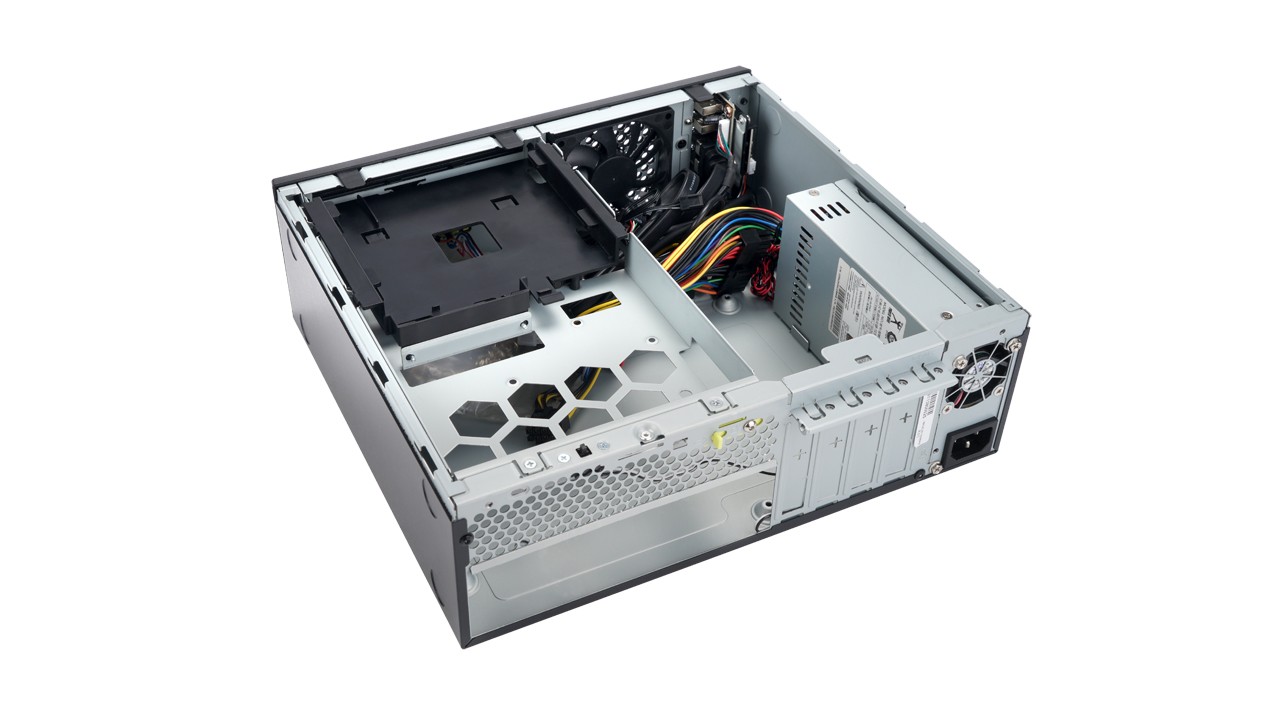

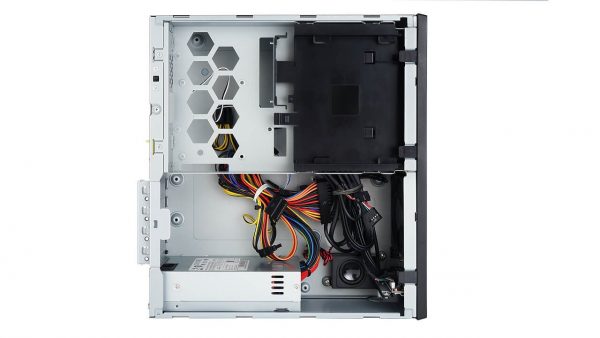

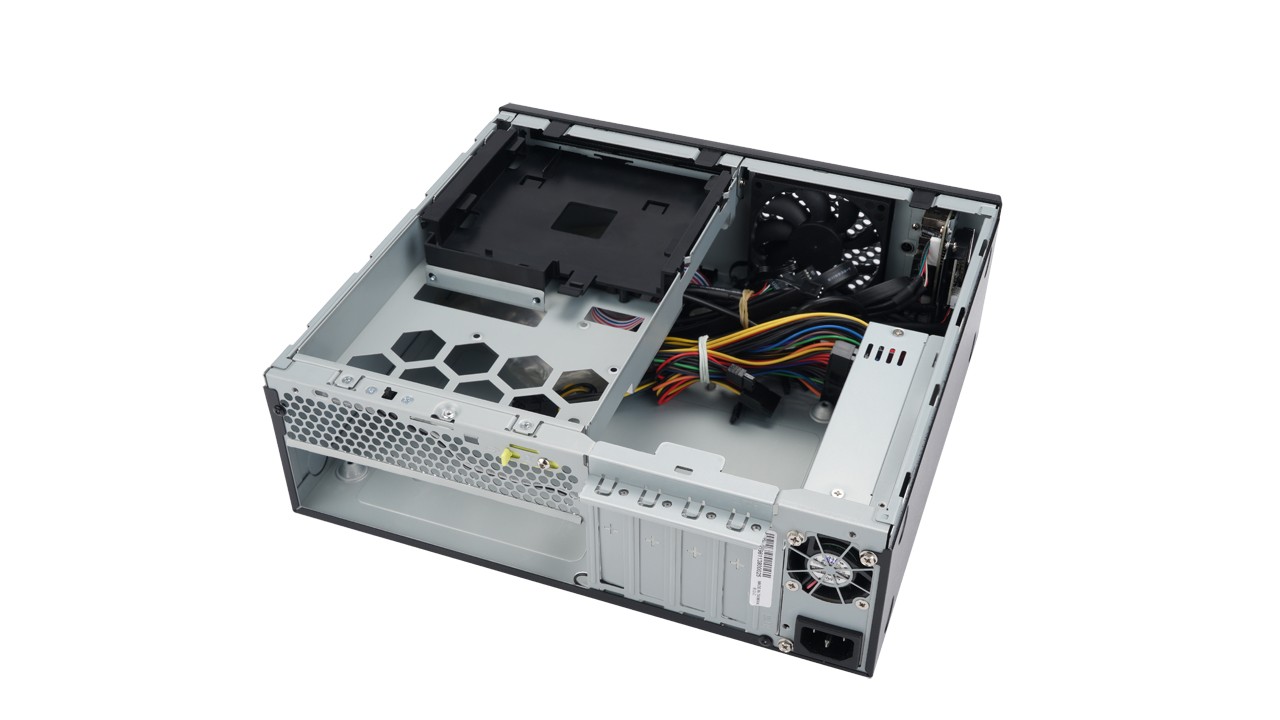

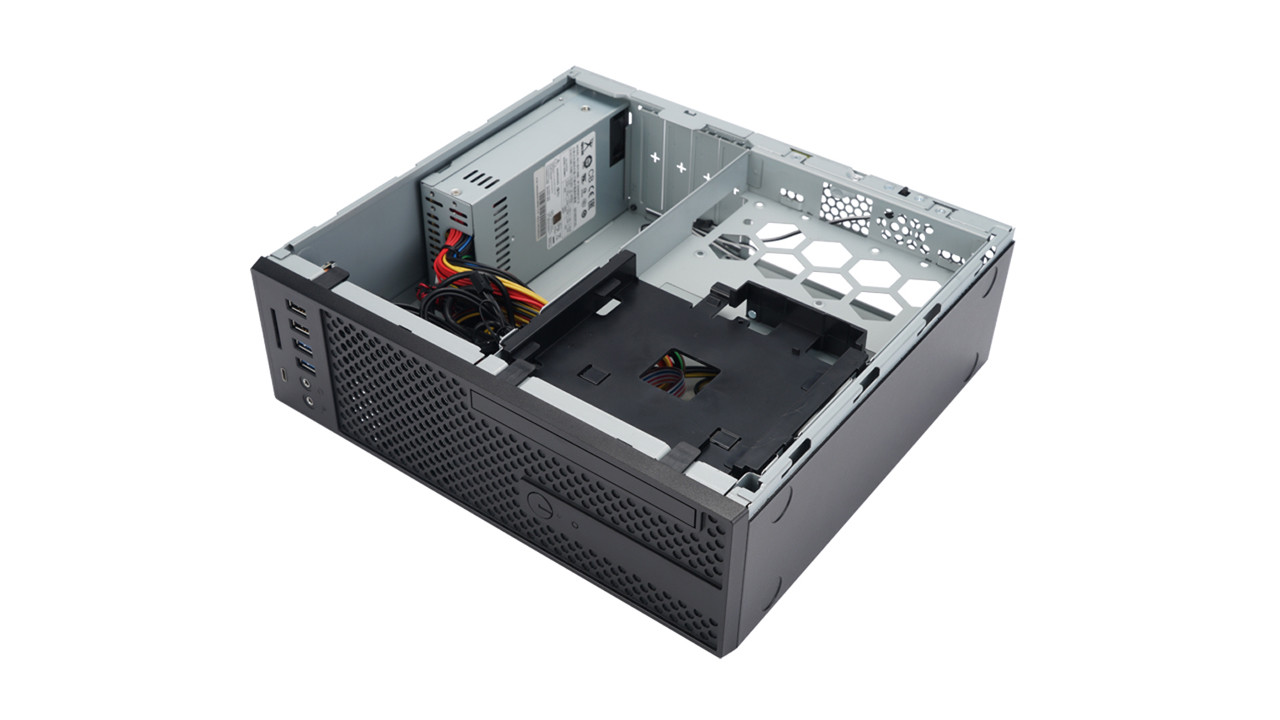

– TOOL-FREE INTERNAL DESIGN FOR BAY AND PCIE SLOTS
– BAYS: 1x SLIM ODD BAY (9.5mm THICKNESS)
– PORTS: 2x USB3.0 | 2X USB2.0 | HD AUDIO
– DRIVE: 1x 3.5″ | 1X 2.5″
– CPU HEATSINK HEIGHT: 45mm MAX
– 265W 80+ BRONZE PSU INCLUDED
– PADLOCK LOOP / KENSINGTON SLOT
Model
CJ708
MB Form Factor
Micro-ATX, Mini-ITX
Case Size
8L
S.F.F. Slim Chassis
(Ultra Small Form Factor)
Color
Black
External Drive Bays
Slim ODD x 1 (9.5mm Thickness)
Internal Drive Bays
3.5″/2.5″ HDD x 1,
2.5″ HDD x 1

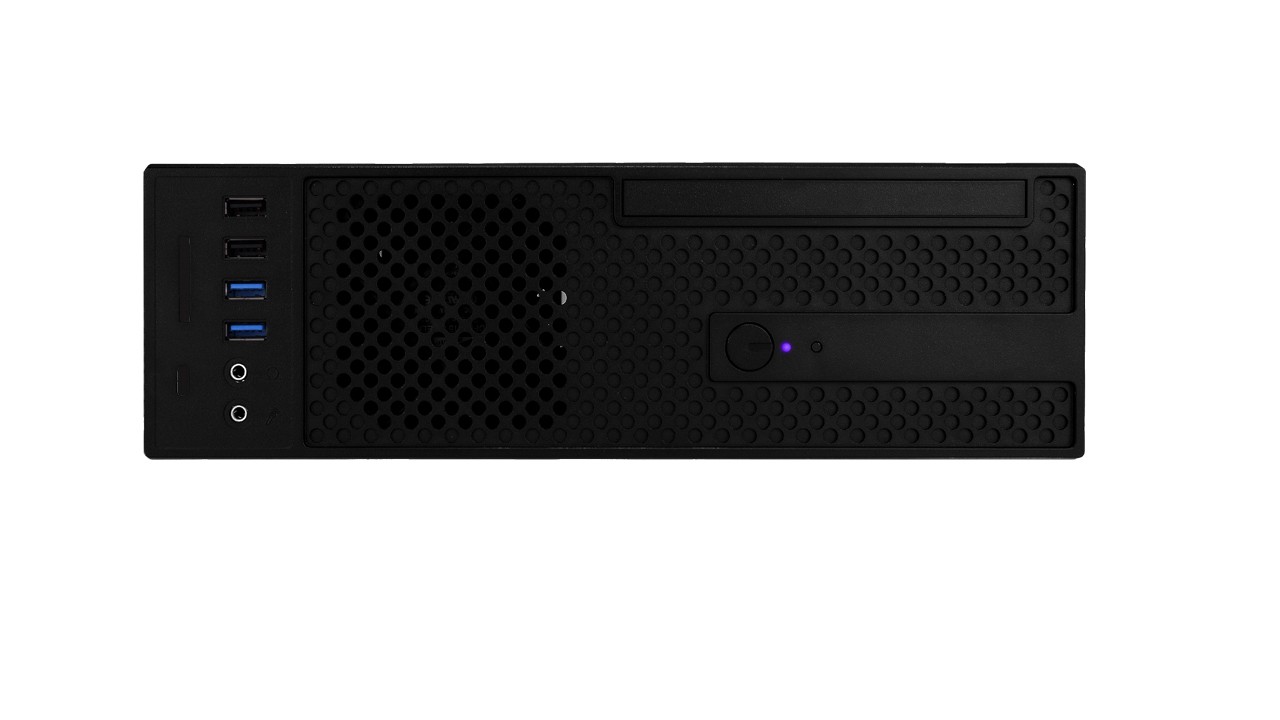

Front Ports
Micro-ATX, Mini-ITX
USB 3.0 x 2 + USB 2.0 x 2 (or USB 3.0 x 2),
HD Audio
Product Dimensions
(H x W x D)
with Front Panel
305 x 95 x 276 mm (8L)
(12” x 3.7” x 10.9”)
307 x 95 x 290 mm
(12.1” x 3.7” x 11.4”)
(with Foot Stand, Clip)
Product Dimensions
(H x W x D)
w/o Front Panel
305 x 95 x 266 mm (7.7L)
12″x 3.7″ x 10.5″

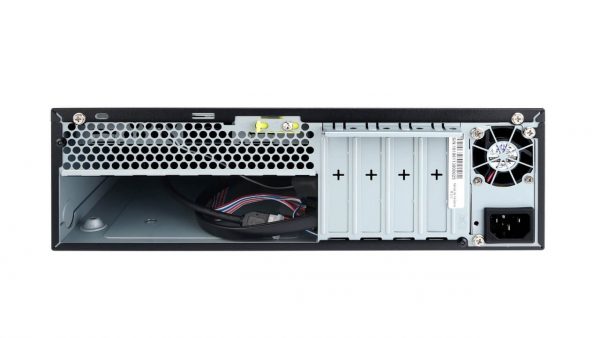

I/O Expansion Slots
Low Profile Card Slot x 4
Model
CJ708
Compatibility
Maximum Graphics Card Length / Width: 251 mm / 60.9 mm
．Maximum CPU Cooler Height: 45 mm
Power Supply
Standard Flex ATX 265W
Thermal Solution
Front: 80x80x15mm PWM Fan
(up to 20mm thickness)
Safety
Meets RoHS, CE and FCC Class B Requirements
Security
Padlock Loop / Kensington Slot
Optional
‧Partition Plate Cooling Technology (PPCT) Cage
‧ Type-C 3.2 Gen 2×2 (10Gbps*2)
‧ Card Reader
‧ Internal Speaker
‧ Chassis Intrusion Switch
Packing Dimensions
(H x W x D)
337 x 361 x 148 mm
(13.3” x 14.2” x 5.8”)
Shipping Information
Single Packing:
-20’: 1,588, 40’: 3,231, 40’ H: 3,717
Single Packing + Pallets:
-20’: 1,260, 40’: 2,772, 40’ H: 3,234
