SGD 599.00

Availability: In-Stock!


  • 14-inch FHD (1920 x 1080) IPS portable monitor with 10-point touch and active stylus support
  • MPP 2.0 stylus with 4096-level pressure sensitivity and low latency for precise and exceptional writing experiences
  • Rich connectivity with two USB-C® (DP Alt mode) and micro HDMI®

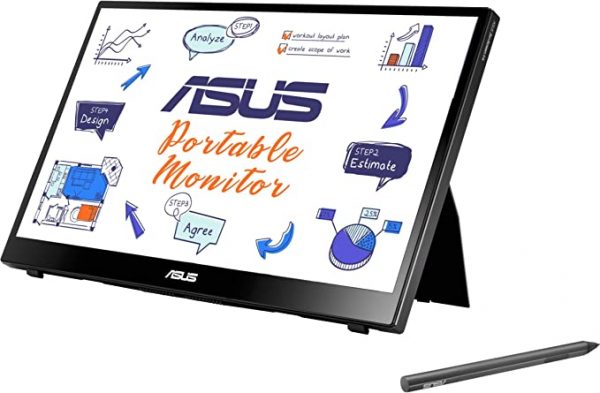

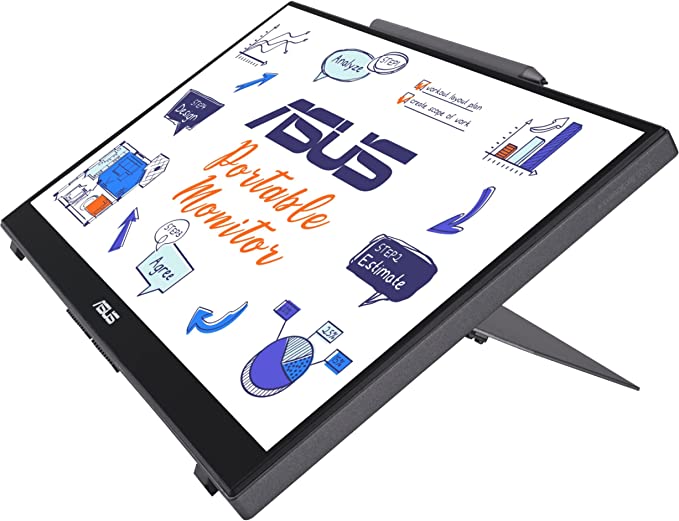

  • Integrated stepless kickstand offers up to 150° of hinge movement in both landscape and portrait orientation to suit different scenarios
  • Built-in ¼”-threaded socket for compatibility with a standard tripod

ZenScreen Ink MB14AHD

Panel Size (inch) : 14
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 309.37 x 174.02 mm
Display Surface : Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 170°/ 170°
Pixel Pitch : 0.161mm
Resolution : 1920×1080
Brightness (Typ.) : 220cd/㎡
Contrast Ratio (Typ.) : 800:1
Display Colors : 262K
Response Time : 5ms(GTG)
Refresh Rate (Max) : 60Hz
Touch : PCT + MPP2.0 Active Pen
Protection Glass : Yes
Flicker-free : Yes
Video Feature
Trace Free Technology : Yes
SPLENDID Technology : Yes
Color Temp. Selection : Yes(4 modes)
GamePlus : Yes
QuickFit : Yes
HDCP : Yes
HDCP : Yes, 1.4
DisplayWidget : Yes
Low Blue Light : Yes

Audio Feature
Speaker : No

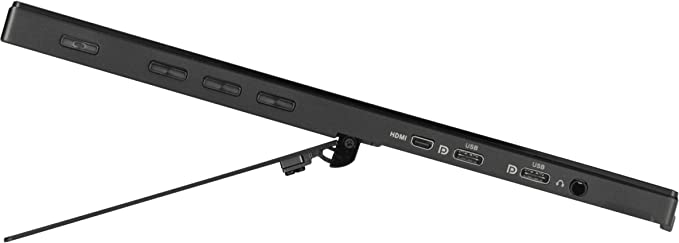

I/O Ports
USB-C x 2 (DP Alt Mode)
Micro HDMI x 1
Earphone Jack : Yes

Signal Frequency
Digital Signal Frequency : HDMI:24Khz~83KHz
USB-C: 83KHz

Power Consumption
Power Consumption : 8.21 W
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Power Off Mode : <0.5W
Voltage : 100-240V, 50/60Hz

Mechanical Design
Height Adjustment : No
1/4″ Tripod Socket : Yes

Dimensions (Esti.)
Phys. Dimension without Stand (W x H x D) : 324.2 x 201.2 x 12.5 mm
Box Dimension (W x H x D) : 454 X 310 x 78 mm

Weight (Esti.)
Net Weight without Stand : 0.87 kg
Gross Weight : 2.64 kg

Accessories (vary by regions)
ASUS Pen (MPP2.0)
Micro HDMI to HDMI cable
Power adapter
Quick start guide
USB Type-C to A adapter
USB-C cable
USB-C to A cable
Warranty Card
ZenScreen sleeve

TÜV Flicker-free
TÜV Low Blue Light

* Battery goes with inbox stylus pen, please remember to remove isolation sheet in the stylus pen in the first use
* Please be noted that the battery size/format for the stylus pen is AAAA
* The warranty period of stylus pen is 12 months
