– CONCENTRATED AIR FLOW + LOW PROFILE (20mm)
– DAISY CHAIN-ABLE Y-CABLE (500mm + 130mm)
– IN BUILT SHOCK PROOF MOUNTS
– ADDRESSABLE RGB WITH CONTROLLER INCLUDED
– FAN RATED: 1.4W | 0.28A
– CFM: 60.71
– SPEED: 400 ~ 2000 RPM

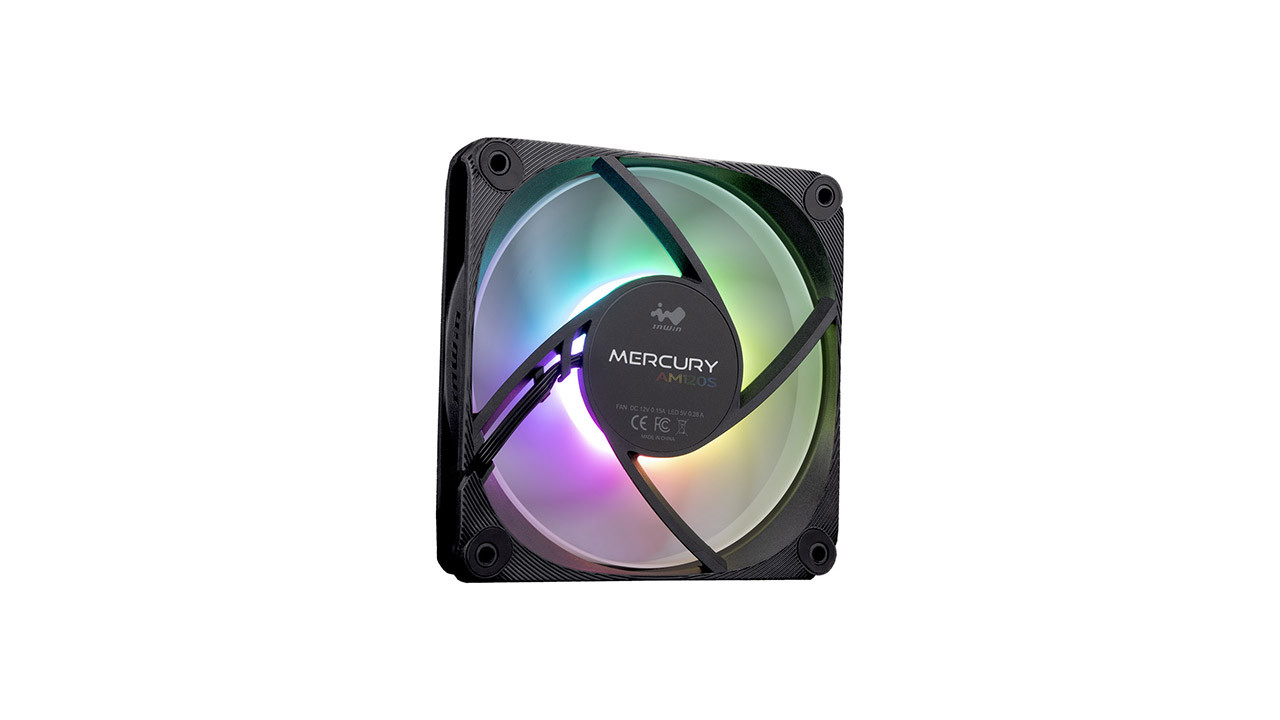

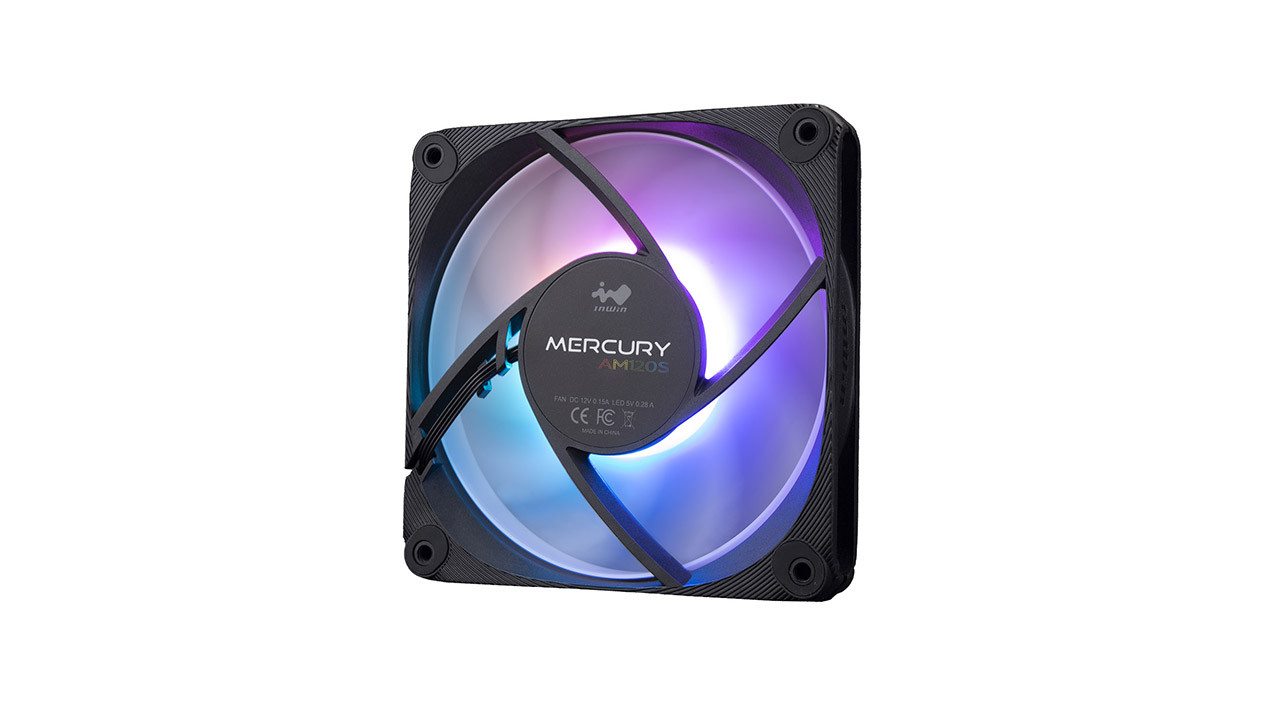

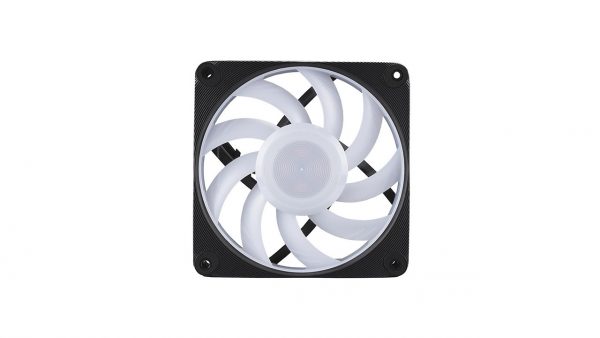

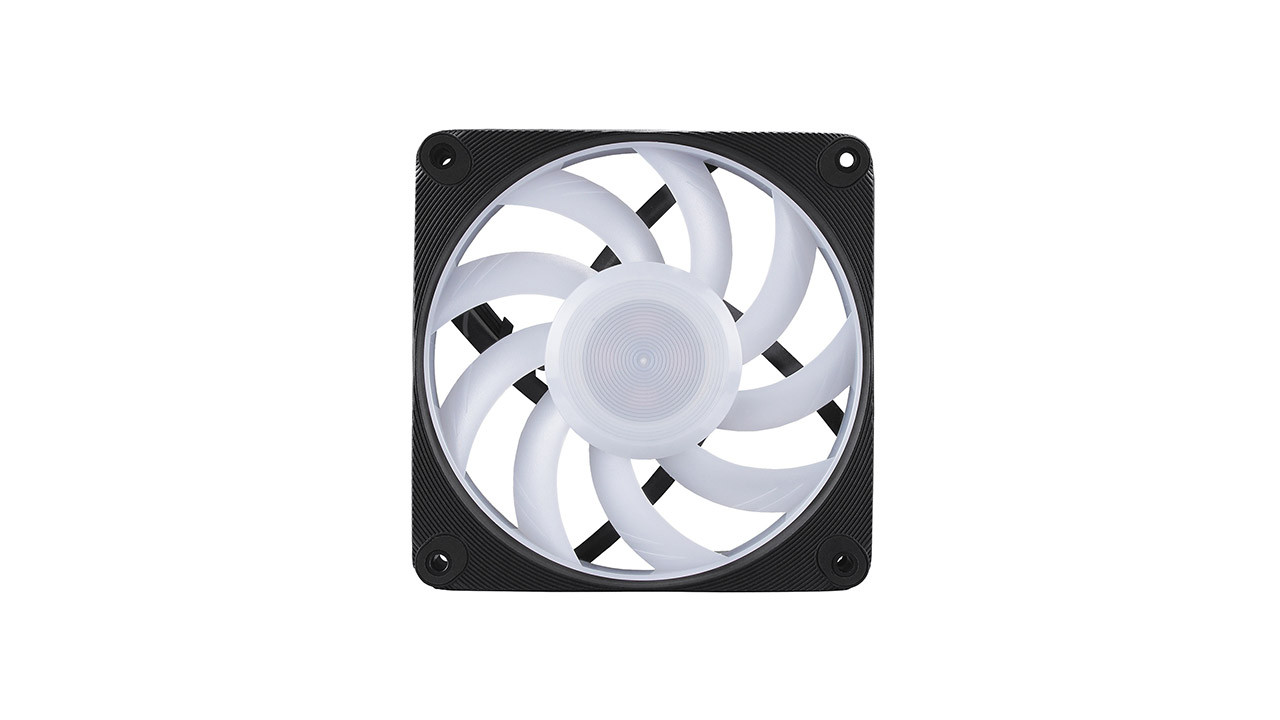

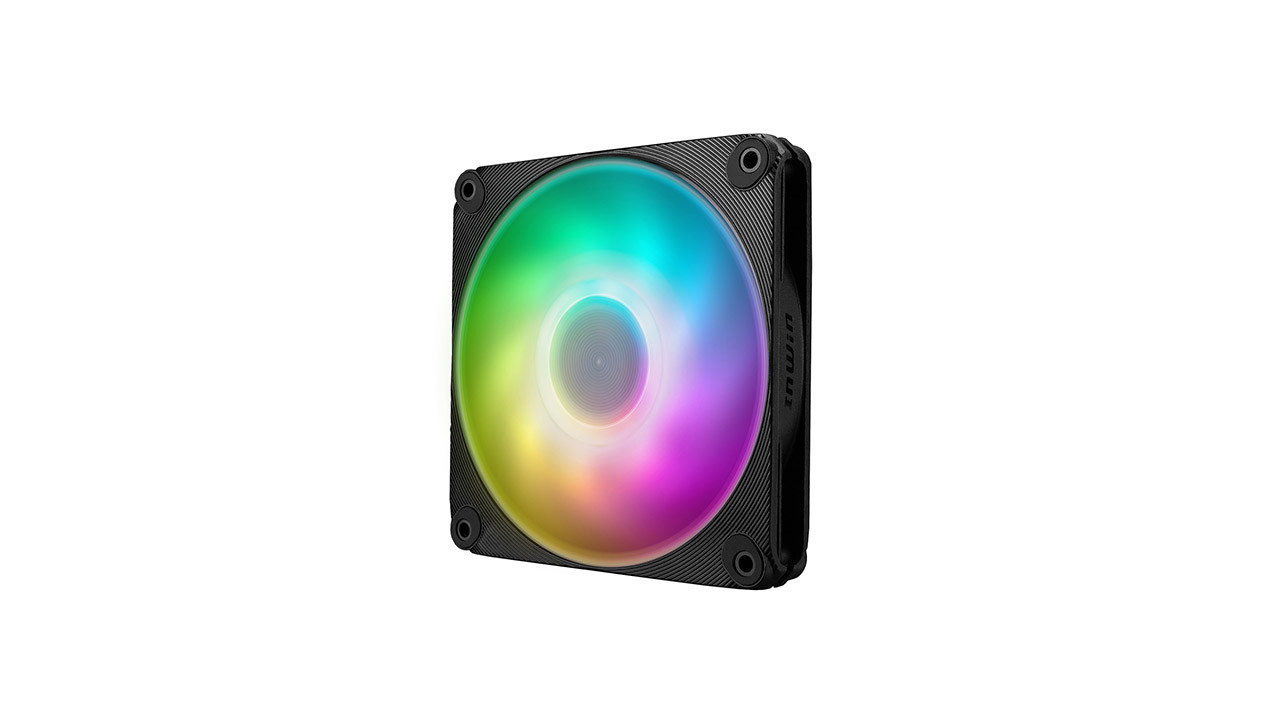

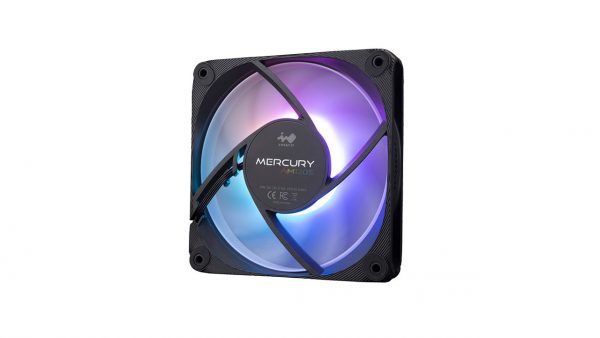

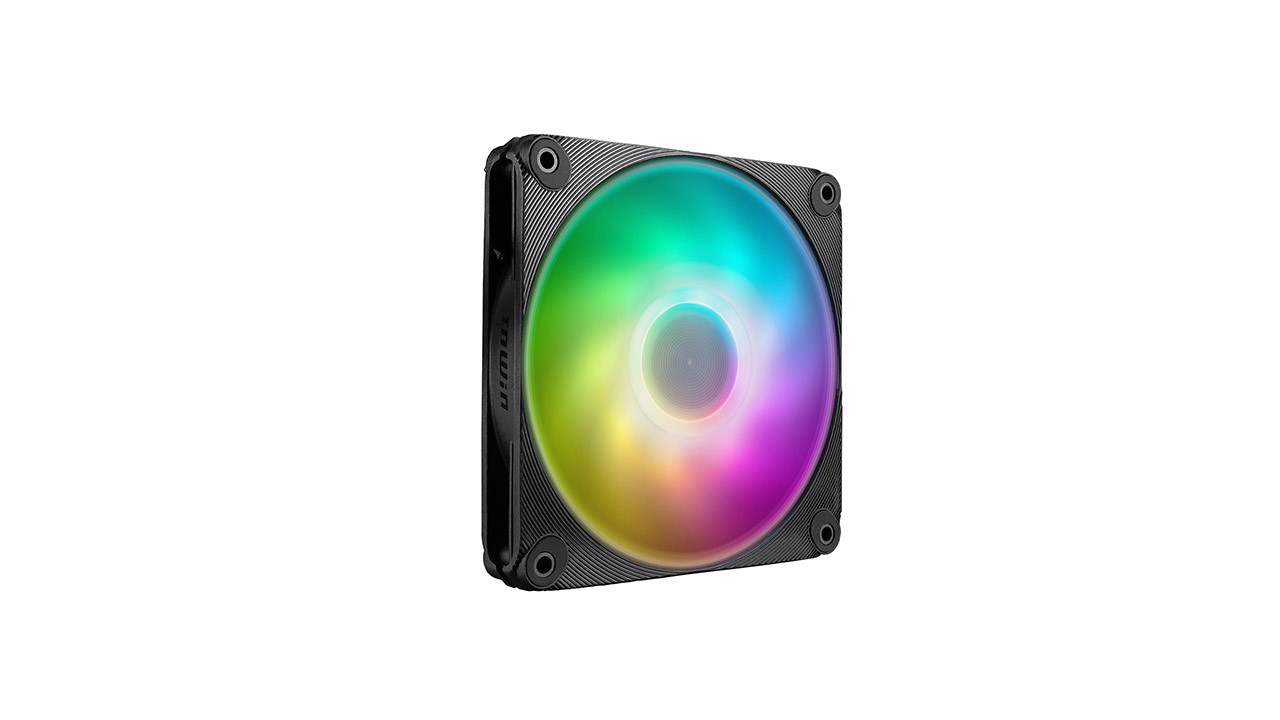

Model
Mercury AM120S
Quantity Included
Single Pack

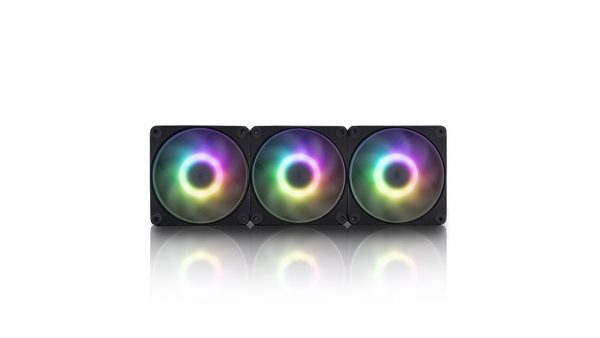

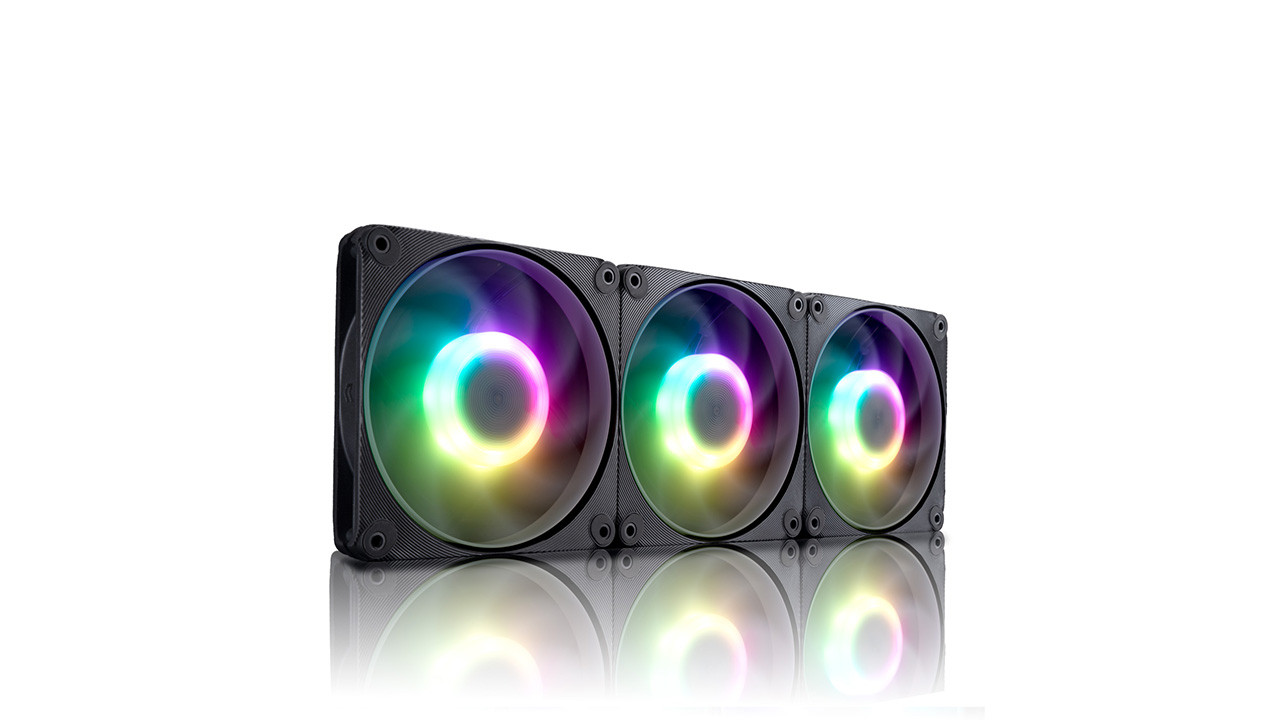

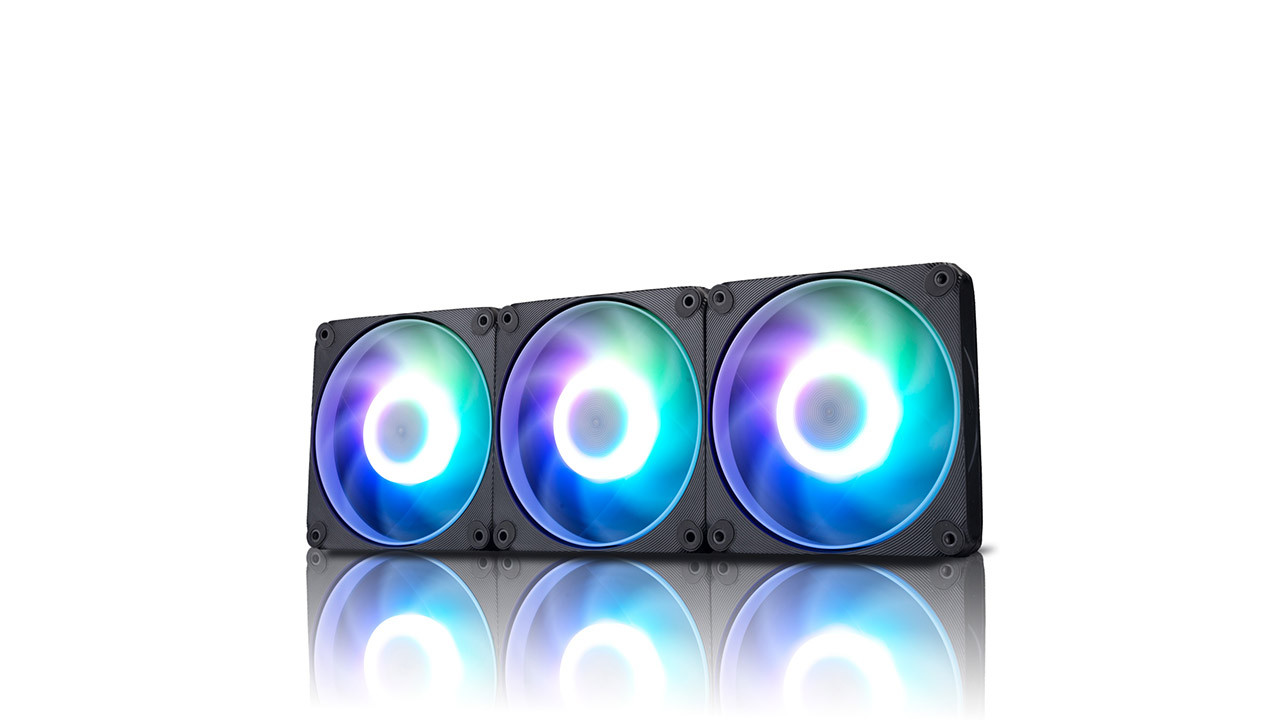

Triple Pack
Model Number
IW-FN-AM120S-1PK
IW-FN-AM120S-3PK
Colors
Black
Fan Size
120 x 120 x 20 mm
Materials
PC, PBT
Rated Voltage
DC 12V
Rated Power
1.8W
Rated Current
0.15A
ARGB Rated Voltage
DC 5V
ARGB Rated Power
1.4W
ARGB Rated Current
0.28A
Speed Mode
PWM 400 – 2000 +/- 10% RPM
Air Flow
60.71 CFM
Air Pressure
2.72 mm / H2O
LED
Addressable RGB
Connector
(Fan to Fan)
Non-Modular Cables
Connector to M/B
4-Pin (12V, PWM), 3-Pin (5V, ARGB)
Noise Level
17 – 29 dB(A)
Bearing Type
Long Lifespan Sleeve Bearing
MTBF
>60,000 hrs.
Net Weight
138 g / 0.3 lbs 418 g / 0.92 lbs
Gross Weight
184 g / 0.4 lbs 519 g / 1.14 lbs
Package Dimensions
(L x W x H) 165 x 125 x 25 mm
6.49 x 4.92 x 0.98″ 165 x 125 x 65 mm
6.49 x 4.92 x 2.55″
Warranty
3 Years
