CPU: AMD Ryzen™ 7 5700U /GPU: Integrated – Radeon™ Graphics
Ram: 16GB 3200MHz DDR4 / Storage: NVME 512GB SSD
Wifi: Realtek WI-FI 6 + BlueTooth 5.0 / Lan: Intel® LAN 1000 Mbps
Accessories: Wireless KB + Mouse + Vesa Mount + Power Adaptor
OS: Windows 11 PRO / Warranty: 3 Years On-Site Warranty
Model

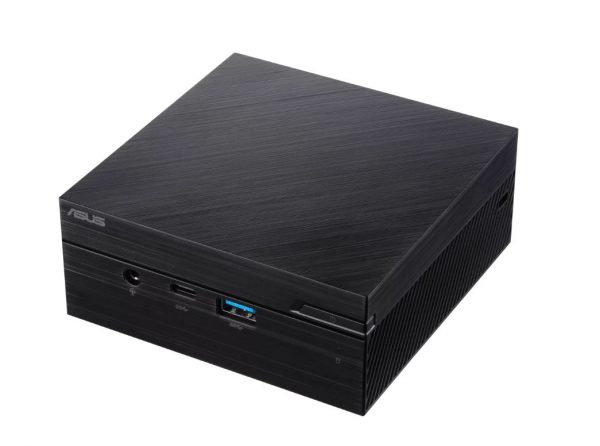

Mini PC PN51-S1
Operating System
Windows 11 PRO
CPU
AMD Ryzen™ 7 5700U
Chipset
Integrated
TPM module on board (on selected model)
Graphics
Memory
16GB 3200MHz DDR4
Storage
1 x M.2 2280 PCIe Gen3x4 slot, 1 x SATA 6Gb/s connector for 2.5” HDD
256GB M.2 NVMe™ PCIe® 3.0 SSD
512GB M.2 NVMe™ PCIe® 3.0 SSD
128GB M.2 NVMe™ PCIe® 3.0 SSD
* 2.5″ HDD bay only supports 7mm height
Wireless Data Network
Realtek WI-FI 6 + BlueTooth 5.0
LAN
Intel® LAN 1000 Mbps
Audio
Realtek® ALC897 or ALC3251 HD Audio CODEC(optional)

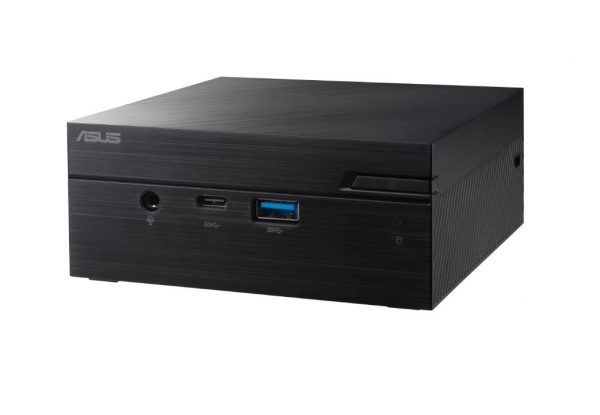

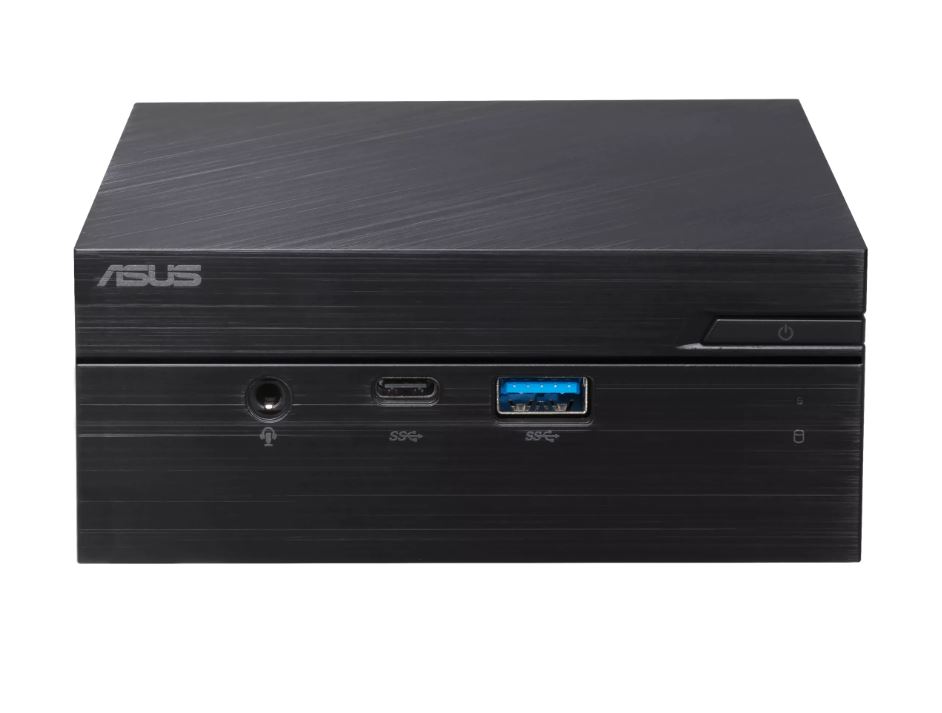

Side(Front) I/O Ports
1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen1, 1 x Audio Jack

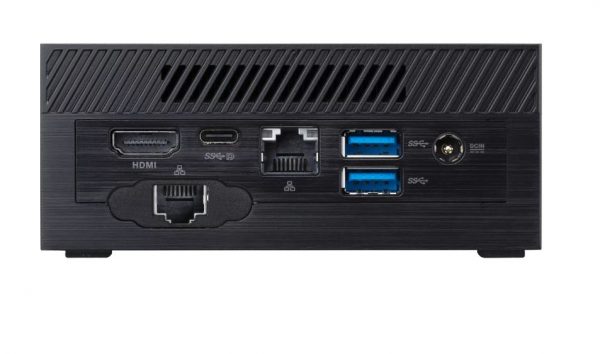

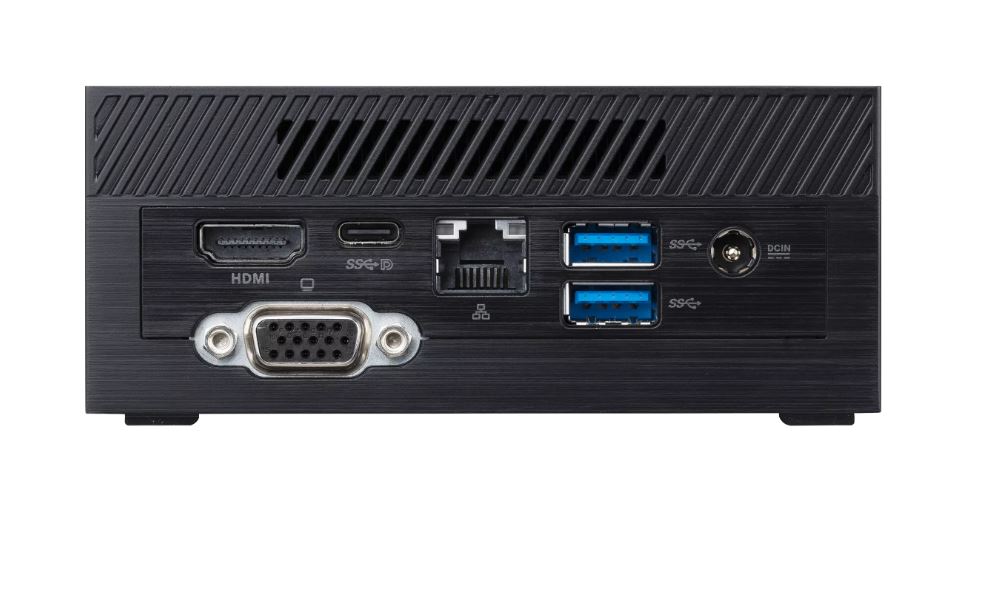

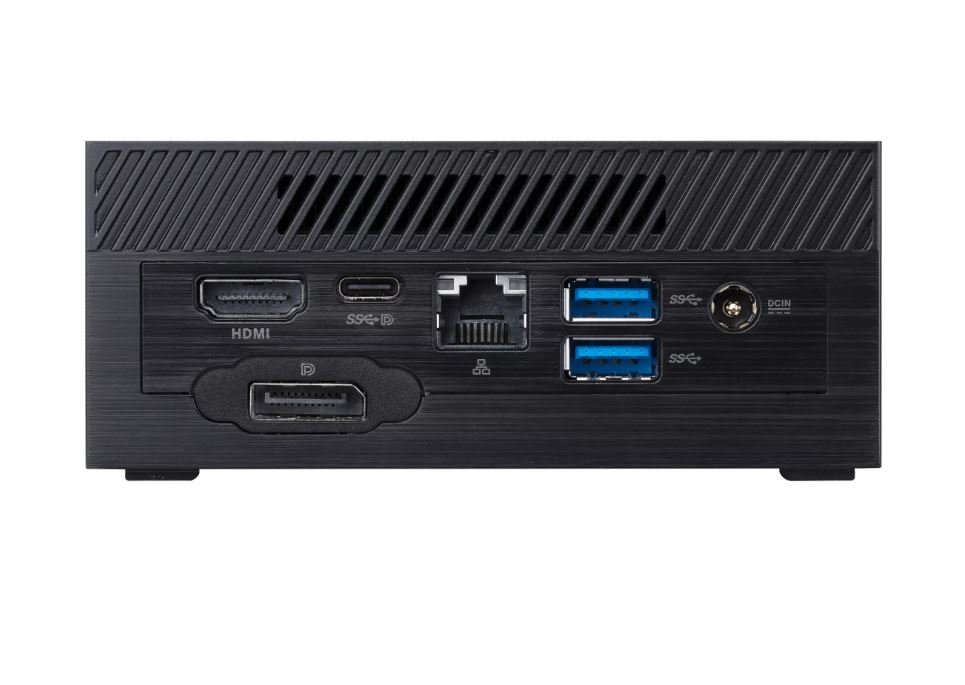

Back I/O Ports
1 x USB 3.2 Gen1 Type-C (w/ DP output, PD input), 1 x HDMI, 2 x USB 3.2 Gen1, 1 x Configurable Port (option: VGA/COM/DP/LAN), 1 x 2.5G(RJ45) LAN, 1 x DC-in
Configurable I/O
1 x Display1.4 Port
1 x LAN(RJ-45) Port
1 x VGA Port
Speaker
No
Power Supply
19Vdc, 4.74A, 90W Power Adapter
19Vdc, 3.42A, 65W Power Adapter
Dimensions (W x D x H)
115 x 115 x 49 mm
Weight
700g (include 2.5″ HDD)
Color
Black
Accessories
Wireless KB + Mouse + Vesa Mount + Power Adaptor
Certificates
BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
Remark
¹The Windows 11 upgrade will be delivered to qualifying devices late 2021 into 2022. Timing will vary by device. Certain features require specific hardware (see aka.ms/windows11-spec).
