Prime B460-Plus

SGD 181.65

Availability:Out Of Stock

Description

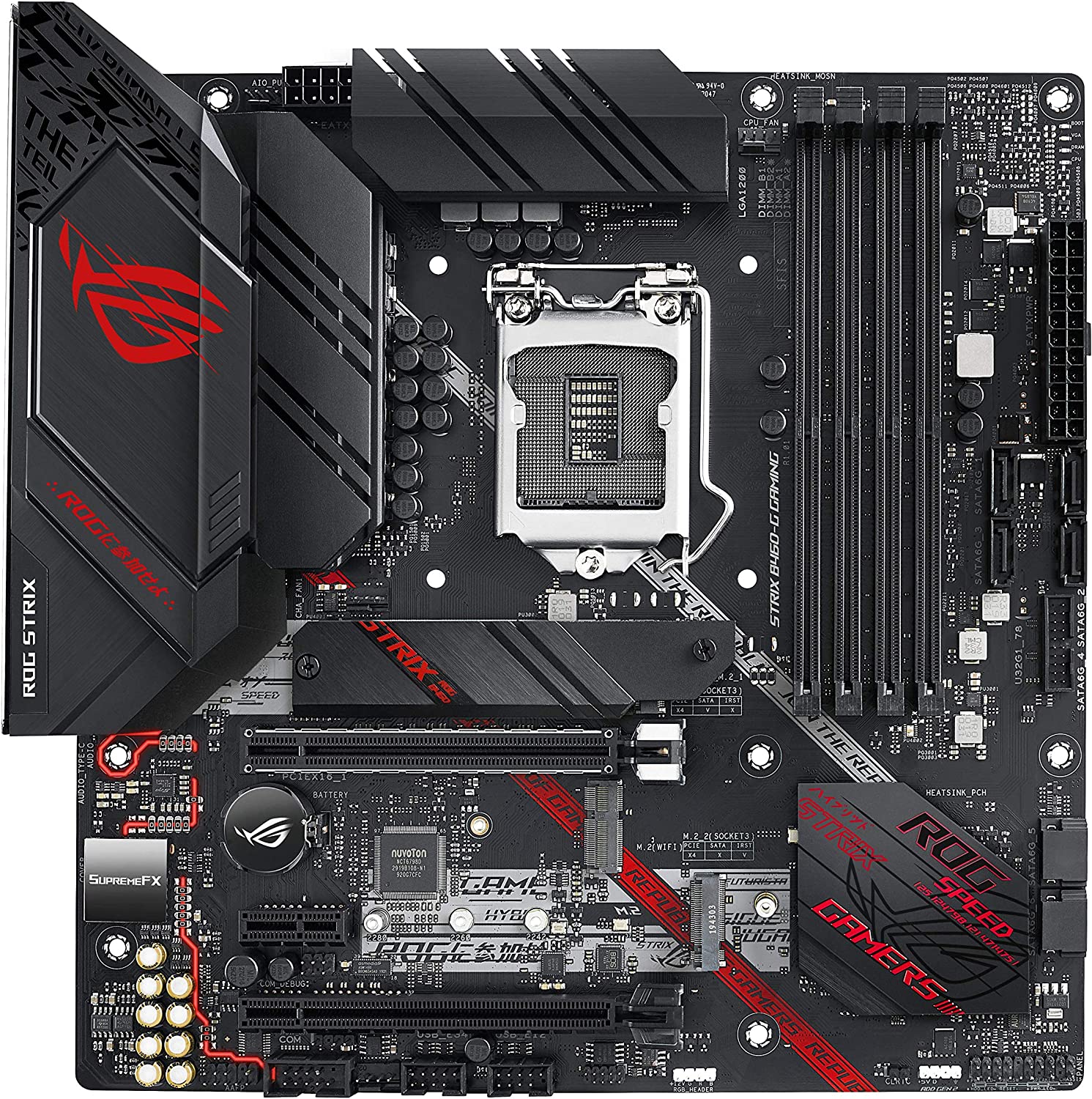

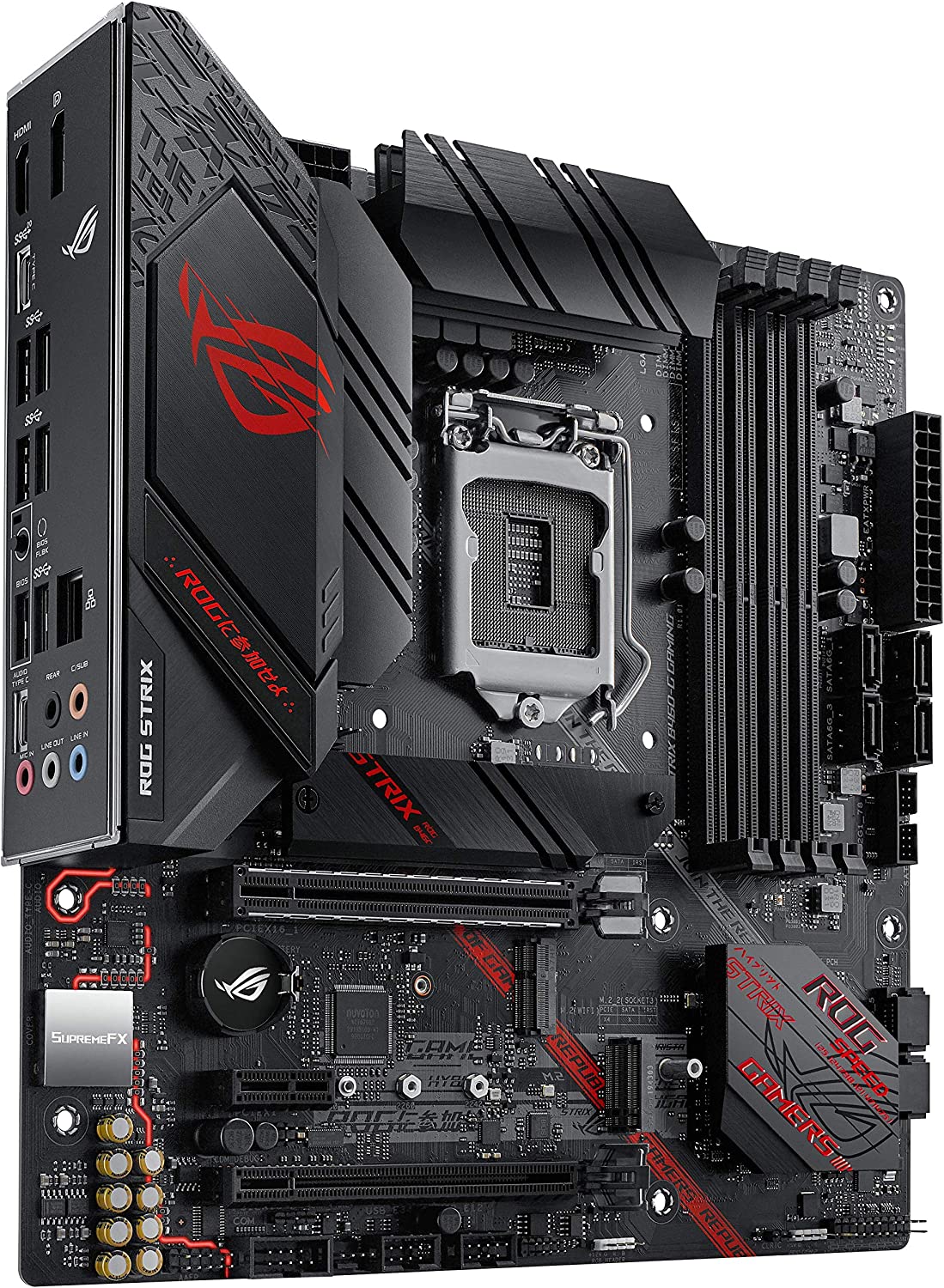

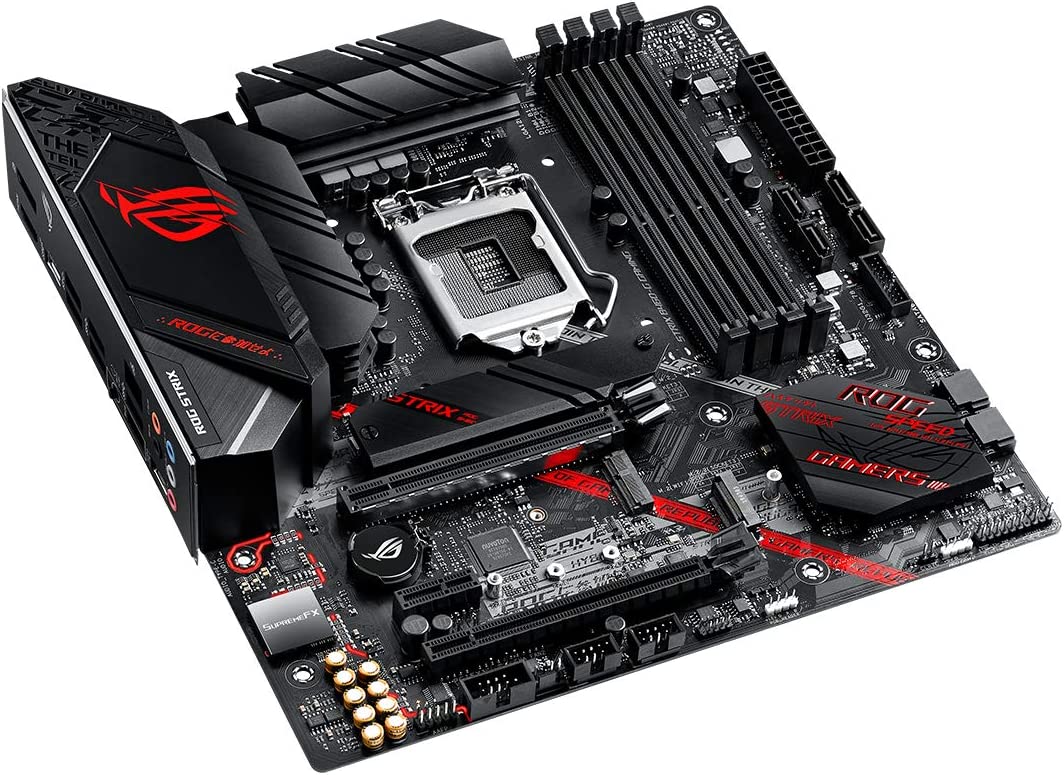

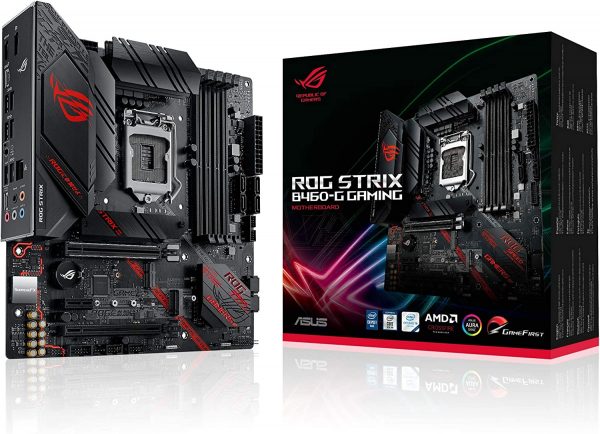

ROG Strix B460-G Gaming motherboard is instantly recognizable with its classic red-and-black color scheme and futuristic cybertext markings. It’s packed with all the essentials, including robust hardware and intuitive ROG software to make it ideal for gamers and builders of all levels.

TEAMED POWER STAGES

Teamed power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.

PROCOOL POWER CONNECTOR

The ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.

ALLOY CHOKE & CAPACITOR

Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.

CPU

Intel® Socket 1200for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Supports Intel® 14nm CPU
* Refer to www.asus.com for CPU support list

Chipset

Intel® B460

Memory

4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Supports Intel® Extreme Memory Profile (XMP)
Dual Channel Memory Architecture

Graphic

1 x DisplayPort 1.4 **

**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.

1 x HDMI 1.4b

*Graphics specifications may vary between CPU types.

Integrated Graphics Processor

Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

Expansion Slots

Intel® B460 Chipset
Intel® 10th Gen Processors
1 x PCIe 3.0 x1
1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x4 mode) *1

Storage

1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*2
Intel® B460 Chipset :
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready
6 x SATA 6Gb/s port(s)

LAN

Intel® I219-V 1Gb Ethernet
ASUS LANGuard

Wireless Data Network

M.2 slot only (Key E) (Support PCIe interface)*
*Wi-Fi module is sold separately.

Audio

– Rear audio USB Type-C® port
ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220A
– Premium Japanese audio capacitors
– Audio Cover
– SupremeFX Shielding™ Technology
– Dual OP Amplifiers
– Impedance sense for front and rear headphone outputs
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality120dBSNR stereo playback outputand113dBSNR recording input
– Supports up to 32-Bit/192kHz playback
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
Audio Feature :

USB Ports

1 x USB 2.0 port(s)(1 x USB Type-C®)
1 x USB 3.2 Gen 2×2 port(s)(1 x USB Type-C®)
Front USB Port ( Total 6 )
Rear USB Port ( Total 8 )
6 x USB 3.2 Gen 1 port(s)(6 x Type-A)
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)

Software Features

[ROG Exclusive Software]
– RAMCache III
– ROG CPU-Z
– GameFirst VI
– Sonic Studio III + Sonic Studio Virtual Mixer
– Sonic Radar III
– DTS® Sound Unbound
– Overwolf
– Anti-virus software

[ASUS Exclusive Software]
Armoury Crate
– Aura Creator
– Aura Sync
AI Suite 3
– Performance And Power Saving Utility:
-TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4
– EZ update
AI Charger
WinRAR

[UEFI BIOS]
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

ASUS Special Features

ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– ASUS Q-Slot

ASUS Thermal Solution
– Aluminum M.2 heatsink

ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS header
– Pre-mounted I/O shield
– SafeSlot

AURA Sync
– Standard RGB header(s)
– Addressable Gen 2 RGB header(s)

Onboard red LED lighting accent
Rear audio USB Type-C® connector

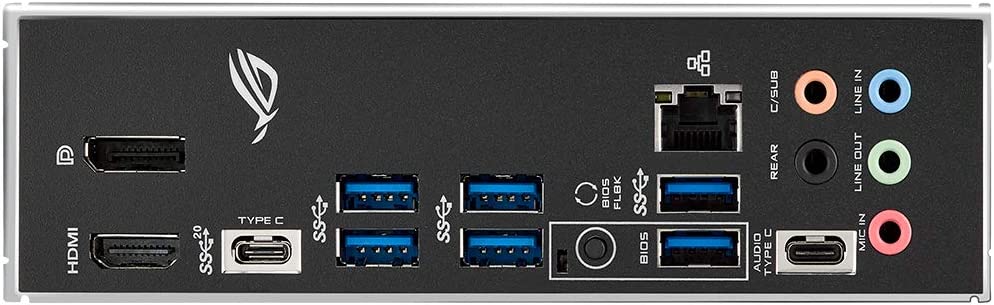

Back I/O Ports

1 x USB 2.0 (1 for audio USB Type-C®)
1 x Intel® I219-V 1Gb Ethernet
1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
6 x USB 3.2 Gen 1
1 x USB BIOS FlashBack™ Button(s)
1 x DisplayPort
1 x HDMI
5 x Audio jack(s)

Internal I/O Ports

1 x M.2 with E key for Wi-Fi module
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x Addressable RGB header
1 x Aura RGB Strip Headers
2 x M.2 Socket 3
2 x Chassis Fan connector(s)
1 x AAFP connector
1 x System panel connector
1 x CPU Fan connector(s)
1 x AIO_PUMP connector
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Clear CMOS jumper(s)

Accessories

1 x ROG audio USB Type-C® cable
1 xM.2 Key E screw package(s)
1 x M.2 SSD screw package(s)
1 x M.2 Rubber Package(s)
1 x pack of cable tie
1 x ROG Strix stickers
1 x ROG Thank you card
User´s manual
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x Extension cable for Addressable LED

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Form Factor

9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
mATX Form Factor

Note

*1 PCIEX16_2 shares bandwidth with PCIEX1. When PCIEX16_2 runs x4 mode, PCIEX1 will be disabled. When PCIEX1 runs x1 mode, PCIEX16_2 runs x2 mode.

*2 The M.2_1 socket shares bandwidth with SATA6G_1 ports when using M.2 SATA mode device.
