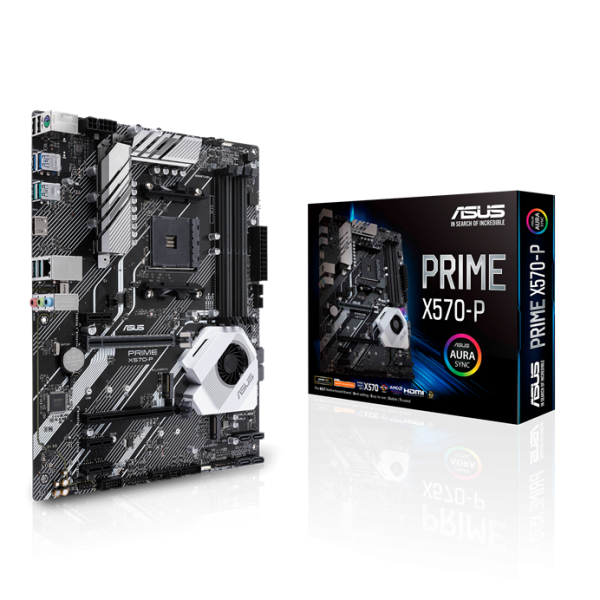

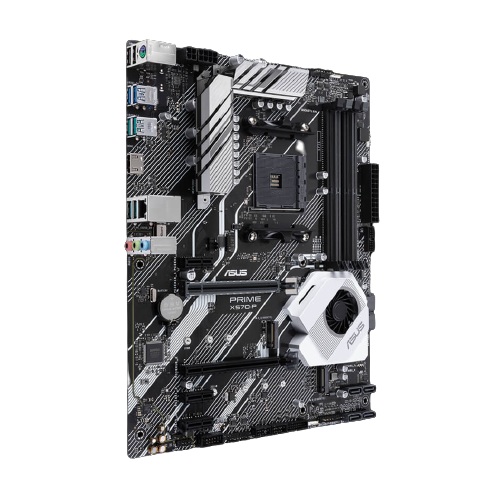

PRIME X570-P/CSM

SGD 375.23

Availability:Out Of Stock

  • AMD AM4 Socket: Ready for 3rd and 2nd Gen AMD Ryzen™/3rd, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Graphics Processors
  • ASUS Corporate Stable Model (CSM): A commercial program offers up to 36-month product lifecycle and 6-month EOL notice for product transitions
  • ASUS Control Center Express: A centralized server-grade management software for asset management, software deployment and monitoring and mobile control
  • Enhanced power solution: 8+4 DrMOS power stages, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
  • Industry-leading cooling options: Comprehensive controls for fans and AIO pump, via Fan Xpert 4 or the acclaimed UEFI
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
  • Next-gen connectivity: Supreme flexibility with PCIe 4.0, dual M.2, USB 3.2 Gen 2 ports
  • Aura Sync RGB header: Synchronize RGB header with a vast portfolio of compatible PC gear, including next-gen addressable RGB strip
Model
PRIME X570-P/CSM
CPU
AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors
* Refer to www.asus.com for CPU support list
* Due to CPU limitation, CPU cores supported varies by processors.
Chipset
AMD X570
Memory
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory capacity supported vary depending on the CPU you installed.
Graphic
Integrated Graphics in AMD Ryzen™ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors
VGA output support : HDMI port
– Supports HDMI 1.4b with max. resolution 4096  x 2160  @ 24  Hz
Multi-GPU Support
AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors
Supports AMD 2-Way CrossFireX™ Technology
Expansion Slots
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
1 x PCIe 4.0 x16 (x16 mode)
AMD RyzenTM 4000 G-Series / 2000 Series Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD RyzenTM 3000 G-Series / 2000 G-Series Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode)
3 x PCIe 4.0 x1
Storage
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
AMD Ryzen™ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
LAN
Realtek® RTL8111H
ASUS LAN Guard
Audio
Realtek S1200A 8-Channel High Definition Audio CODEC *
– Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback
– Front panel audio connector (AAFP)
Audio Feature :
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese-made audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports
AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors :
2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A *)
AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors :
2 x USB 3.2 Gen 1 port(s) (2 at back panel, blue, Type-A)
AMD X570 chipset :
2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A)
AMD X570 chipset :
4 x USB 3.2 Gen 1 port(s) (4 at mid-board)
AMD X570 chipset :
5 x USB 2.0 port(s) (2 at back panel, , 3 at mid-board)
* The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors.
Special Features
ASUS 5X Protection III :
– ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
– ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
– ASUS Overvoltage Protection: World-class circuit-protecting power design
– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
– ASUS DIGI+ VRM – Digital power design with Dr. MOS
– ASUS Enhanced DRAM Overcurrent Protection – Short circuit damage prevention
– ASUS ESD Guards – Enhanced ESD protection
ASUS SafeSlot – Protect your graphics card Investment
ASUS OptiMem:
– Improved DDR4 Stability
ASUS EPU :
– EPU
AURA :
– Aura RGB Strip Headers
– Aura Control
– Addressable Gen 2 Header
ASUS Exclusive Features :
– AI Suite 3
– Ai Charger
– Armoury Crate
ASUS Quiet Thermal Solution :

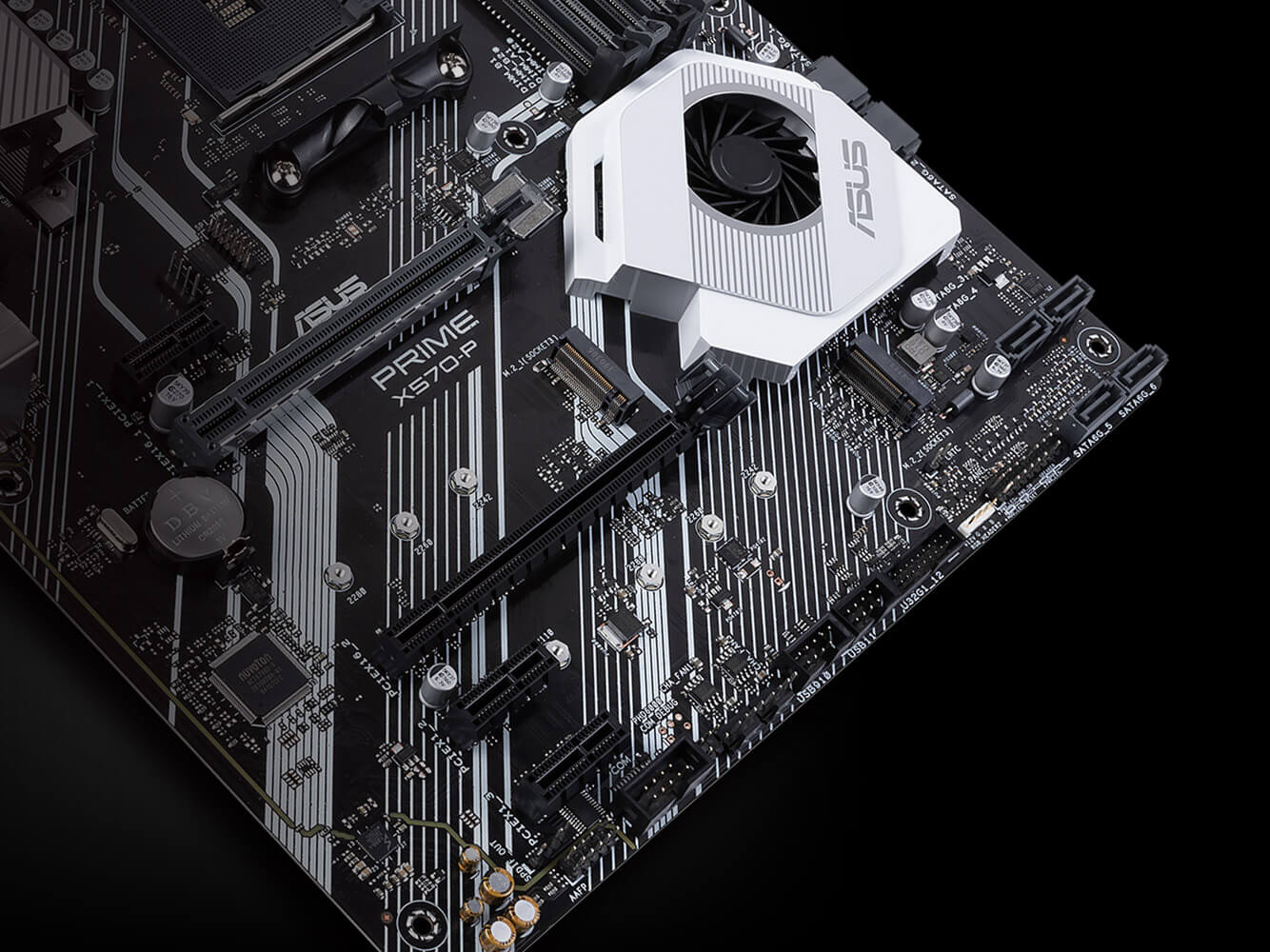

– Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink
– ASUS Fan Xpert 4
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
– ASUS Q-Slot
– ASUS Q-DIMM
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 2.0
3 x Audio jack(s)
2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A
4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x PCH_FAN (1 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x SPI TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports
Accessories
User´s manual
1 x ACC Express Activation Key Card
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x Extension cable for Addressable LED
BIOS
256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WOL by PME, PXE
Operating System
Windows® 10 64-bit
Form Factor
ATX Form Factor
12.0  inch x 9.6  inch ( 30.5  cm x 24.4  cm )
