• AM4 socket: Ready for AMD Ryzen™ 5000 Series / 4000 G-Series / 3000 Series desktop processors
  • Powerful I/O: Dual Thunderbolt 4 Type-C ports, dual 2.5G onboard Ethernet, USB 3.2 Gen 2 plus HDMI™ 2.1 and DisplayPort™ 1.2 output
  • Unthrottled Performance: PCI 4.0-ready, 12+2 power stages with high-quality alloy chokes and durable capacitors

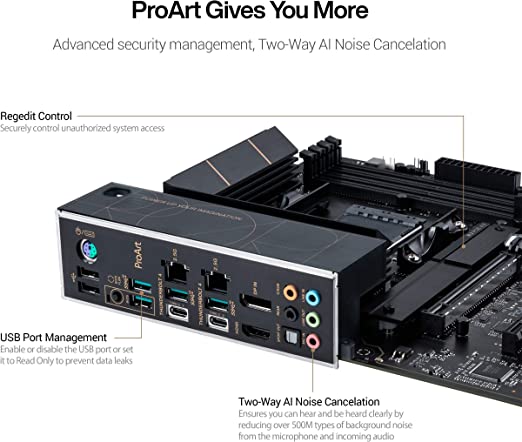

  • Advanced Security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
  • ProArt Gives You More: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control

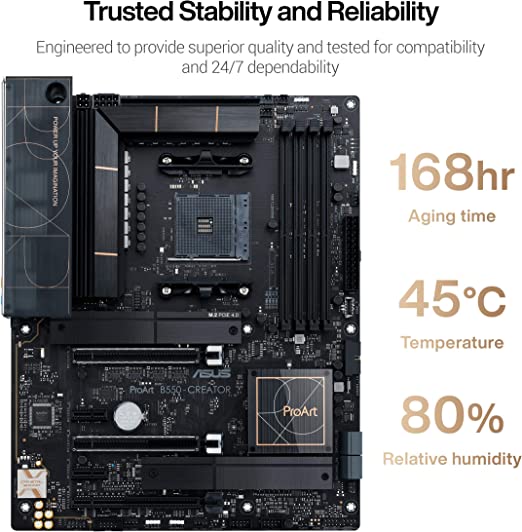

  • Trusted Stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot for enhanced durability
Model
ProArt B550-CREATOR
CPU
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

* Refer to www.asus.com for CPU support list.

Chipset
B550
Memory

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

DDR4

4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *”

AMD RyzenTM 4000 G-Series Processors

DDR4

5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory”

OptiMem II

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphics

1 x HDMI™ 2.1(4K@60HZ)

2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.2/1.4 and Thunderbolt™ video outputs *

* Output at TBT4_E1 and TBT4_E2, the USB Type-C® ports right under RJ45 ports, each requires a USB-C to DisplayPort adapter cable. Graphics specifications may vary between CPU types.

** VGA resolution support depends on processors’ or graphic cards’ resolution. For more details about the video input and output settings please refer to the user manual.

Expansion Slots

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

2 x PCIe 4.0 x16 (x16 or dual x8)*

AMD RyzenTM 4000 G-Series Processor

2 x PCIe 3.0 x16 (x16 or dual x8)*

AMD B550 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)**

2 x PCIe 3.0 x1 slots***

* Support PCIe bandwidth bifurcation for RAID on CPU function.

** PCIe 3.0 x4 will be switched from Thunderbolt™ 4 to PCIEX16_3 if the slot is populated; by then Thunderbolt™ 4 will have no output

*** These PCIe x1 slots share bandwidth with M.2_2, which runs at PCIe 3.0 x4 by default. You may go to BIOS setting to set M.2_2 to PCIe 3.0 x4 or x2 at will

Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

AMD RyzenTM 4000 G-Series Processor :

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

AMD B550 Chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Supports RAID 0, 1, 10

Ethernet
2 x Intel® 2.5Gb Ethernet

ASUS LANGuard

USB
Rear USB:Total 8 ports

2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support

4 x USB 3.2 Gen 2 port(s) (4 x Type-A)

2 x USB 2.0 port(s) (2 x Type-A)
Front USB:Total 7 ports

1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Audio

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*

– Impedance sense for front and rear headphone outputs

– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

– Supports up to 32-Bit/192 kHz playback*”

Audio Features

– Power pre-regulator reduces power input noise to ensure consistent performance

– Rear optical S/PDIF out port

– Premium Japanese audio capacitors

– Dedicated audio PCB layers

– Audio cover

– Unique de-pop circuit

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

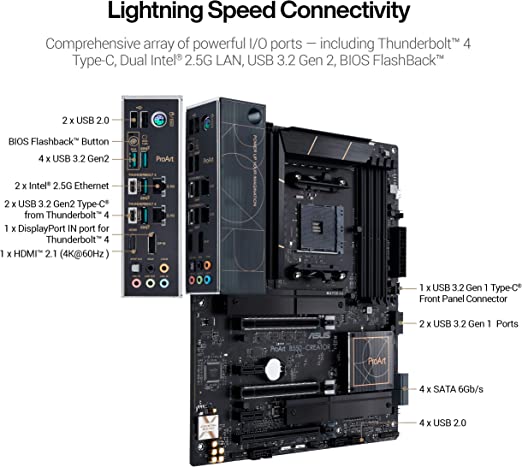

Back Panel I/O Ports

2 x Thunderbolt™ 4 USB Type-C® port(s)

4 x USB 3.2 Gen 2 port(s) (4 x Type-A)

2 x USB 2.0 port(s) (2 x Type-A)

1 x DisplayPort (Input only)

1 x HDMI™ port

2 x Intel® I225-V 2.5Gb Ethernet ports

5 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

4 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 header(s)

2 x AURA RGB header(s)

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 20-5 pin System Panel header

1 x Thermal Sensor header

Special Features

Extreme Engine Digi+

– 5K Black Metallic Capacitors

ASUS 5X PROTECTION III

– DIGI+ VRM (- Digital power design with Dr. MOS)

– Enhanced DRAM Overcurrent Protection

– ESD Guards

– LANGuard

– Overvoltage Protection

– SafeSlot Core

– Stainless-Steel Back I/O

ASUS Q-Design

– Q-DIMM

– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

– Q-Latch

– Q-Slot

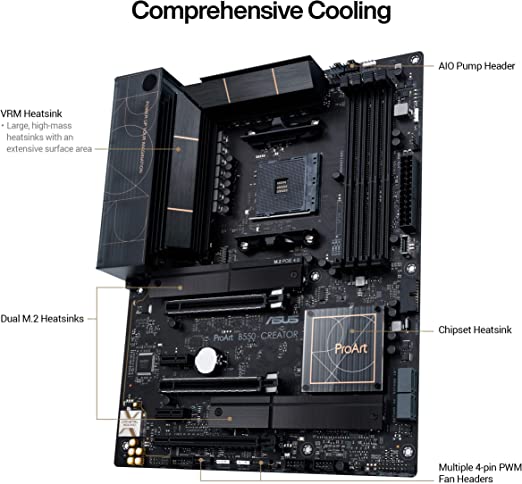

ASUS Thermal Solution

– M.2 heatsink

– VRM heatsink design

ASUS EZ DIY

– BIOS FlashBack™ button

– BIOS FlashBack™ LED

– Box Headers

– ProCool II

– Pre-mounted I/O shield

– SafeSlot

AURA Sync

– AURA RGB header(s)

– Addressable Gen 2 RGB header(s)

Bespoke Motherboard Design & Business Focused Features

– 24/7 Reliability

– Overcurrent Protection

Software Features

ASUS Exclusive Software

Armoury Crate

– AURA Creator

– AURA Sync

– Two-Way AI Noise Cancelation

AI Suite 3

– 5-Way Optimization by Dual Intelligent Processors 5

TPU

EPU

Digi+ VRM

Fan Xpert 4

Turbo app

– EZ update

ASUS CPU-Z

IT Management software supported

– ASUS Control Center Express(ACCE)

ProArt Creator Hub

AI Charger

DAEMON Tools

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

FlexKey

BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Accessories

Cables

2 x SATA 6Gb/s cables

1 x DP to DP cable for Thunderbolt™ 4

Miscellaneous

1 x M.2 Rubber Package(s)

Installation Media

1 x Support DVD

Documentation

1 x ACC Express Activation Key Card

1 x User manual

Operating System
Windows 10 64bit
Form Factor
ATX
30.5cm x 24.4cm
