- LGA1151 socket: Ready for 8th Gen Intel® Core™ desktop processors.

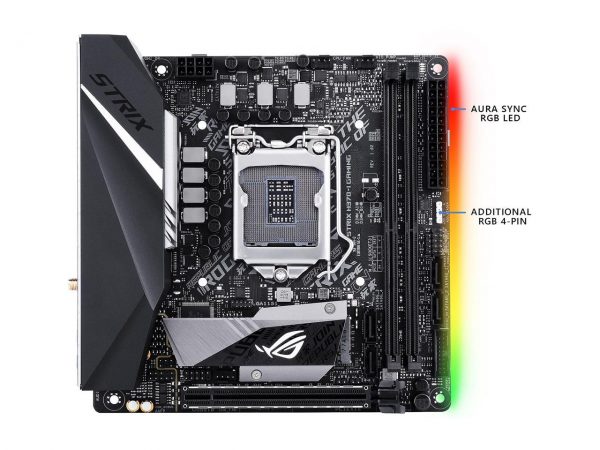

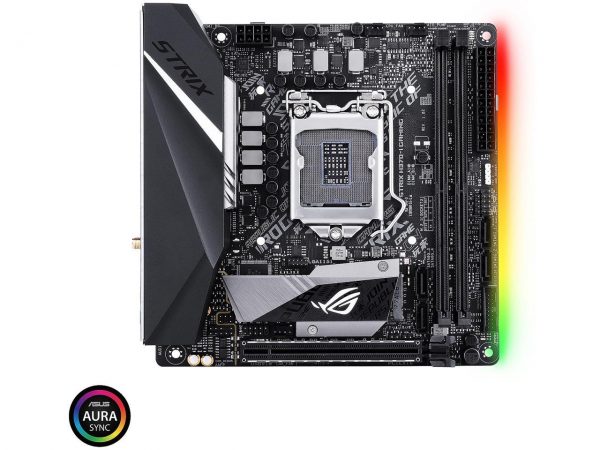

- Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips.
- Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for maximum endurance.

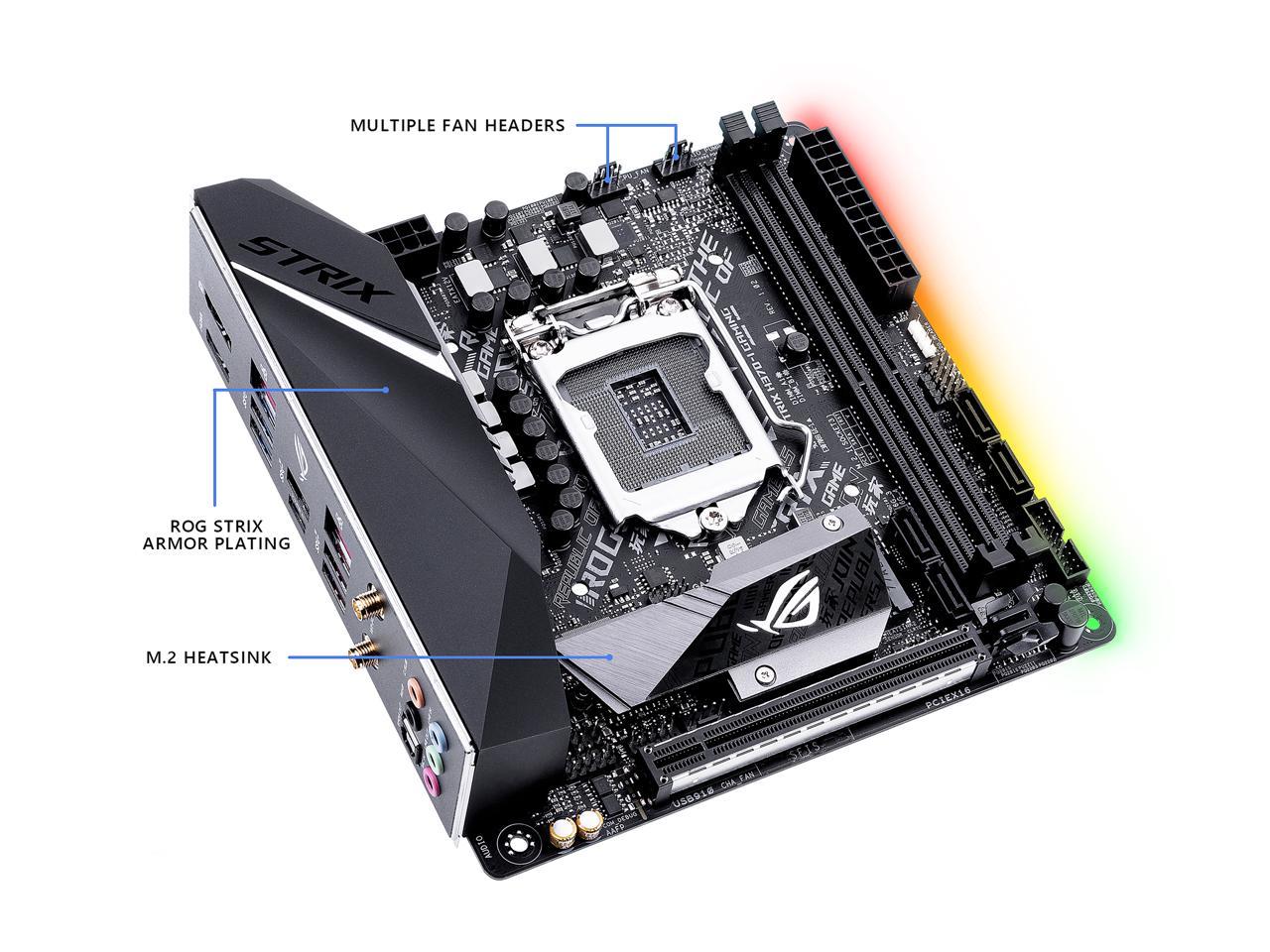

- Double-decker PCH and M.2 heatsinks design for optimal heat dissipation and gaming performance.
- Advanced cooling: Automated system-wide tuning and cooling profiles that are tailor-made for your rig.
- Gaming audio: SupremeFX S1220A teamed with Sonic Studio III creates immersive aural landscapes.
- Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A and Type-C™ connectors.
- Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst for smoother, safer, lag-free online play, plus integrated 2×2 802.11ac Wi-Fi with MU-MIMO support.
CPU
Build in Intel® 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
Chipset
Intel® H370
Memory
2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Supports Intel® Extreme Memory Profile (XMP)
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Dual Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic
Multi-VGA output support : HDMI/DisplayPort 1.2 ports
– Supports HDMI with max. resolution 4096 x 2160 @ 24Hz
– Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz
Integrated Graphics Processor- Intel® HD Graphics support
Maximum shared memory of 1024 MB (for iGPU exclusively)
Expansion Slots
1 x PCIe 3.0/2.0 x16
Storage
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*
Intel® Rapid Storage Technology 15 support*1
Intel® H370 Chipset :
Intel® Optane™ Memory Ready *2
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 5, 10
LAN
Realtek® RTL8111H, 1 x Gigabit LAN
Intel® I219V, 1 x Gigabit LAN Controller(s), Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
Anti-surge LANGuard
ROG GameFirst Technology
Wireless Data Network
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Bluetooth
Bluetooth® 5.0*3
Audio
ROG SupremeFX8-Channel High Definition Audio CODEC S1220A
– Supports up to 32-Bit/192kHz playback *3
– Dual OP Amplifiers
– Impedance sense for front and rear headphone outputs
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality120dBSNR stereo playback outputand113dBSNR recording input
– Sonic Radar III
– Sonic Studio III + Sonic Studio Link
Audio Feature :
– Optical S/PDIF out port(s) at back panel
USB Ports
3 x USB 3.1 Gen 1 port(s)
2 x USB 2.0 port(s)
Intel® H370 Chipset :
1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM)
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A)
ROG Exclusive Features
ROG RAMCache II
GameFirst IV
ROG CPU-Z
ROG CloneDrive
Overwolf
ROG Aura
Special Features
– ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
Performance Optimization :
– DIGI + VRM
Gamer´s Guardian:
– DRAM Overcurrent Protection
– Highly Durable components
– Digi+ VRM
– SafeSlot
– Aura Lighting Control
– Aura Addressable Strip Header(s)
Fan Xpert4
ASUS EPU :
– EPU
AURA :
ASUS Exclusive Features :
– AI Suite 3
– Ai Charger
ASUS Quiet Thermal Solution :
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
ASUS Q-Design :
– ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
– ASUS Q-Slot
– ASUS Q-DIMM

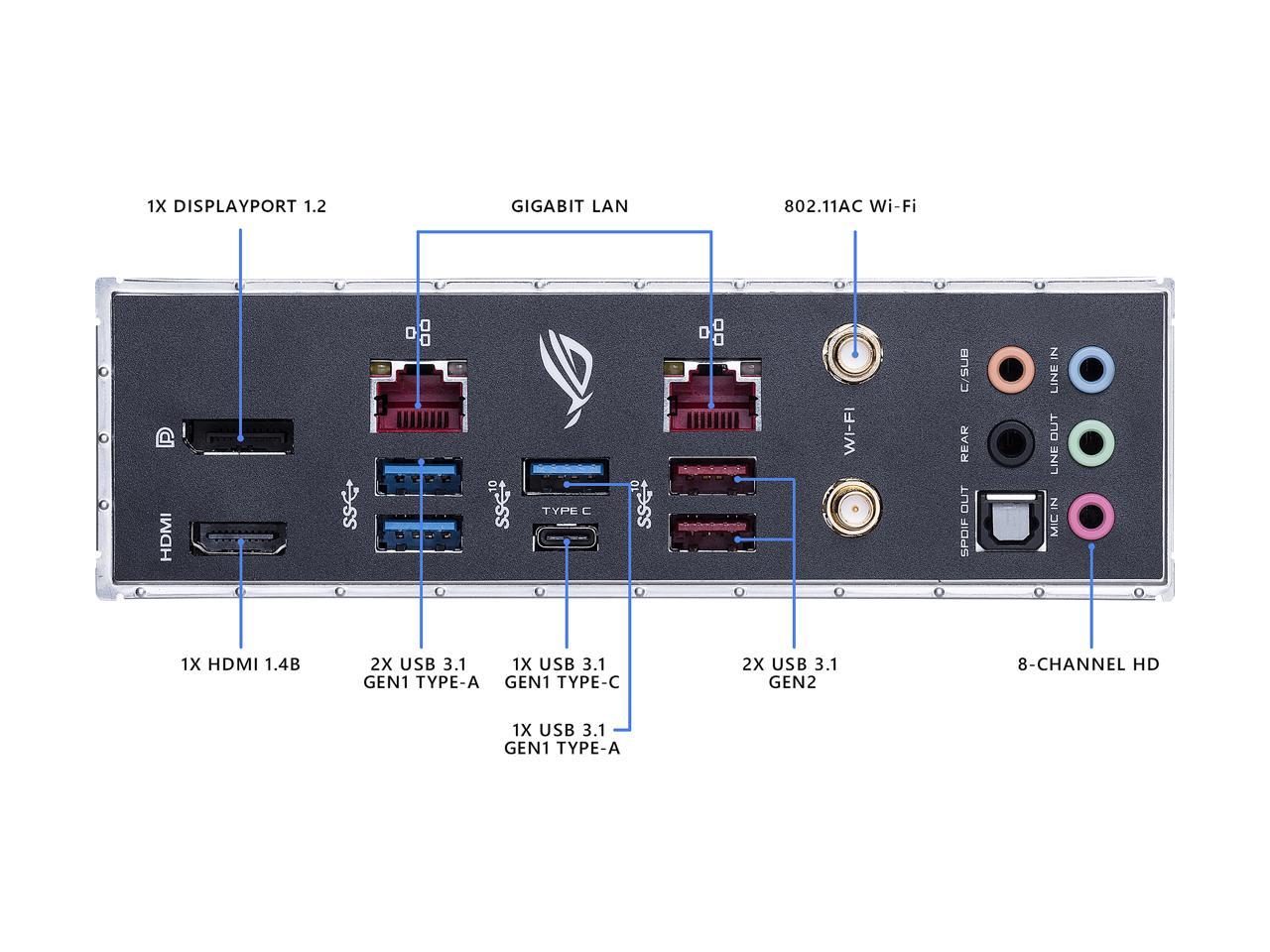

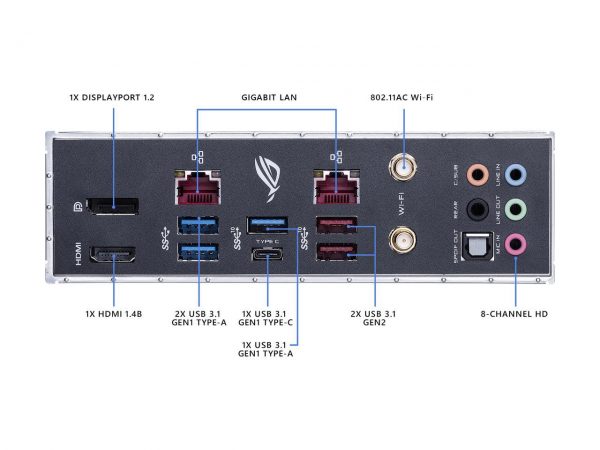

Back I/O Ports
1 x USB 3.1 Gen 1 (blue) USB Type-CTM
3 x USB 3.1 Gen 1
2 x USB 3.1 Gen 2
1 x Wi-Fi antenna port(s)
1 x DisplayPort
1 x HDMI
2 x LAN (RJ45) port(s)
1 x Optical S/PDIF out
5 x Audio jack(s)
Internal I/O Ports
1 x Internal speaker connector(s)
1 x Chassis Fan connector(s) (1 x 4-pin)
1 x Aura Addressable Strip Header(s)
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4-pin)
1 x AIO_PUMP connector (1 x 4-pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
Accessories
1 x pack of cable tie
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n compliant)
2 x M.2 screws
M.2 2242 mounting kit
1 x Panel cable
1 x ROG Strix stickers
1 x Extension Cable for RGB strips (80 cm)
User´s manual
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
BIOS
1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ RAID Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F4 AURA ON/OFF and F9 Search, Secure Erase, User Profile.
Operating System
Windows® 10 64-bit
Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Note
* For a 2242 storage device, use the bundled 2242 mounting kit.
*1 Bluetooth V5.0 will be supported on future versions of Windows. Refer to https://www.microsoft.com for updates on Windows OS Bluetooth support version.
*2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
