AX1800 Dual Band WiFi 6 (802.11ax) Router (574/1201 Mbps)
Ports:
Ports: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4,USB2.0,USB3.1G1
Antenna:
External Fixed x 2
Model
RT-AX56U
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps
AX technology
Yes
Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 433 Mbps
WiFi 5 (802.11ac) : up to 867 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps
Antenna
External antenna x 2
Memory
256 MB Flash
512 MB RAM
Boosts speed
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth
Operating Frequency
2.4G Hz / 5 GHz
Button
WPS Button, Reset Button, Power Switch
LED Indicator
Power x 1
2.4G x 1
5G x 1
LAN x 4
WAN x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2 A current

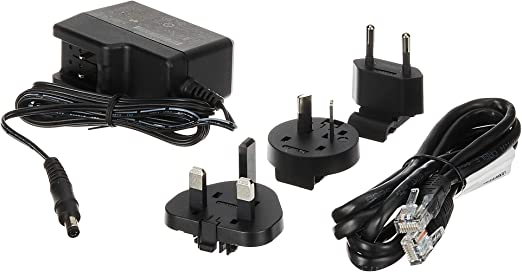

Package content
RT-AX56U
RJ45 x1
Adapter x1
QSG x1
Warranty Card x1
Product Weight (g)
456 g
AiMesh
AiMesh
Primary AiMesh router
AiMesh node
Router APP
ASUS Router APP
Alexa
Support Alexa skill
IFTTT
Support IFTTT
AiProtection
AiProtection Pro
AiProtection
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking
Parental Control
Parental Control
Parental Control Customized Internet schedule
Traffic Control
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule : 32
Traditional QoS
Maximum Traditional QoS rule : 32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Traffic analysis period : Daily, Weekly, Monthly
Website history
Wireless
IPv6
Wi-Fi Encryption : Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
UTF-8 SSID
Guest Network
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2-Personal
WPS
WiFi MAC address filter
Maximum MAC filters : 64
Wireless scheduler
Airtime fairness
RADIUS Client
Universal beamforming
Explicit beamforming
WAN
nternet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
3G/4G LTE dongle
Android tethering
Port forwarding
Maximum port forwarding rule : 64
Port triggering
Maximum port triggering rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
LAN
IPTV
Manually assign IP address
Maximum manually assign IP address rule : 64
VPN
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
3G/4G LTE dongle
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges
Administration
Operating mode : Access Point, AiMesh Node, Media Bridge, Repeater, Router
Operating system : ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
SSH
Wake on LAN (WOL)
Configuration backup and restore
Diagnosis tools
Feedback system
System log
