RT-AX89X

Model
RT-AX89X

Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

AX technology
Yes

Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 600 Mbps
WiFi 5 (802.11ac) : up to 1000 Mbps
WiFi 5 (802.11ac) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 1148 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps

Antenna
External antenna x 8

Transmit/Receive
2.4GHz 4×4
5GHz 8×8

Processor
2.2GHz quad-core processor

Memory
256 MB Flash, 1 GB RAM

Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access),
Beamforming: standard-based and universal,
1024-QAM high data rate,
20/40/80/160 MHz bandwidth,

Operating Frequency
2.4 GHz / 5 GHz

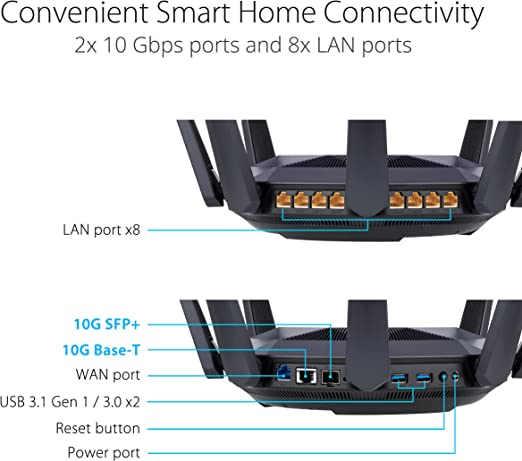

Ports
RJ45 for 10Gbps BaseT for WAN/LAN x 1, RJ45 for 1Gbps BaseT for LAN x 8, RJ45 for 1Gbps BaseT for WAN x 1
USB 3.1 Gen 1 x 2
SFP+ x 1

Button
WPS Button, Reset Button, Power Button, Wireless on/off Button, LED on/off Button

LED Indicator
Power x 1
Wi-Fi x 3
WAN x 1
LAN x 1
10GE x 1
SFP+ x 1

Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19V 3.42A

Package content
RJ45 x1
Adapter x1
QSG x1
Warranty Card x1
RT-AX89X x1

Product Weight (g)
1280 g

AiMesh
AiMesh
Primary AiMesh router
AiMesh node

Router APP
ASUS Router APP

Game
Game Boost / Acceleration

Alexa
Support Alexa skill

IFTTT
Support IFTTT

AiProtection
AiProtection Pro
AiProtection
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking

Parental Control
Parental Control
Parental Control Customized Internet schedule

Traffic Control
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule : 32
Traditional QoS
Maximum Traditional QoS rule : 32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Traffic analysis period : Daily, Weekly, Monthly
Website history

Wireless
IPv6
Wi-Fi Encryption : WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
UTF-8 SSID
Guest Network
Maximum Guest Network rule : 2.4GHzx3、5GHzx3
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2-Personal
WPS
WiFi MAC address filter
Maximum MAC filters : 64
Wireless scheduler
Airtime fairness
RADIUS Client
Universal beamforming
Explicit beamforming

WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
WAN Aggregation
3G/4G LTE dongle
Android tethering
Port forwarding
Maximum port forwarding rule : 64
Port triggering
Maximum port triggering rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
Let’s Encrypt

LAN
DHCP Server
IPTV
LAN Link Aggregation
Manually assign IP address
Maximum manually assign IP address rule : 64

VPN
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP

USB application
File System : FS_Tuxera_HFS+,FS_Tuxera_NTFS,FS_Tuxera_vFAT,FS_ext2,FS_ext3,FS_ext4
3G/4G LTE dongle
HDD hibernation
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges

Administration
Operating mode : Accesspoint, AiMeshnode, Mediabridge, Repeater, Router
Operating system : ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
SSH
Wake on LAN (WOL)
Configuration backup and restore
Diagnosis tools
Feedback system
System log
