RT-AX92U (1-PK)

Model
RT-AX92U

Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

Product Segment
AX6100 ultimate AX performance : 400 Mbps+ 867 Mbps+ 4804 Mbps

AX technology
Yes

Data Rate
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 4 (802.11n) TurboQAM : up to 400 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 867 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps

Antenna
External antenna x 4, Internal antenna X 2

Transmit/Receive
2.4GHz 2×2
5GHz-1 2×2
5GHz-2 4×4

Processor
1.8 GHz dual-core processor

Memory
256 MB Flash, 512 MB RAM

Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
20/40/80 MHz bandwidth

Operating Frequency
2.4G Hz, 5 GHz-1, 5 GHz-2

Ports
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 2.0 x 1
USB 3.0 x 1

Button
WPS Button, Reset Button, Power Button
LED Indicator
Power x 1
Wi-Fi x 3
WAN x 1
LAN x 1

Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current

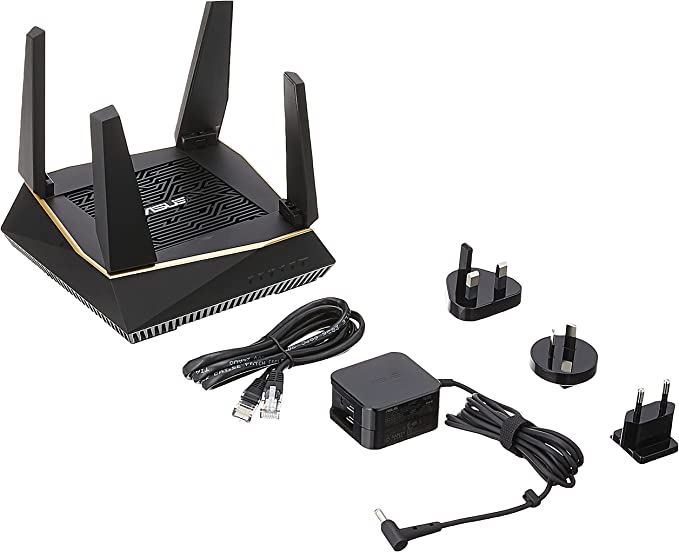

Package content
RJ-45 Cable x1
Power Adapter x1
QSG x1
Warranty Card x1
RT-AX92U x1

Product Weight (g)
651

AiMesh
AiMesh
Primary AiMesh router
AiMesh node

Router APP
ASUS Router APP

Game
Game Boost / Acceleration

Alexa
Support Alexa skill

IFTTT
Support IFTTT

AiProtection
AiProtection Pro
AiProtection
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking

Parental Control
Parental Control
Parental Control Customized Internet schedule

Traffic Control
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule : 32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Traffic analysis period : Daily, Weekly, Monthly
Website history

Wireless
IPv6
Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
UTF-8 SSID
Guest Network
Maximum Guest Network rule : 2.4GHz x2, 5GHz-1 x2,5GHz-2 x4
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2-Personal
WPS
WiFi MAC address filter
Maximum MAC filters : 64
Wireless scheduler
Airtime fairness
RADIUS Client
Universal beamforming
Explicit beamforming

WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
WAN Aggregation
3G/4G LTE dongle
Android tethering
Port forwarding
Maximum port forwarding rule : 64
Port triggering
Maximum port triggering rule : 32
DMZ
DDNS
NAT Passthrough : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
Let’s Encrypt

LAN
DHCP Server
IPTV
LAN Link Aggregation
Manually assign IP address
Maximum manually assign IP address rule : 64

VPN
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP

USB application
File System : FS_Tuxera_HFS+,FS_Tuxera_NTFS,FS_Tuxera_vFAT,FS_ext2,FS_ext3,FS_ext4
3G/4G LTE dongle
HDD hibernation
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges

Administration
Operating mode : Accesspoint, AiMeshnode, Mediabridge, Repeater, Router
Operating system : ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
SSH
Wake on LAN (WOL)
Configuration backup and restore
Diagnosis tools
Feedback system
System log
