SST-EX500-B

SGD 99.08

Availability:Out Of Stock

Supports standard SFX form factor and ATX via included bracket

500W 24/7 continuous power output with 40℃ operating temperature

Silent running 92 mm fan with 18dBA minimum

Japanese primary capacitor

High efficiency with 80 PLUS Bronze certification

Class-leading single +12V rail

PCIe 8-Pin and PCIe 6-Pin connectors support

Product No.
SST-EX500-B

Model (safety certification)
SST-SX0500FCBR-A

Color
Black (lead-free paint)

Max. DC Output
500W

Power density
630W per liter

Load Range

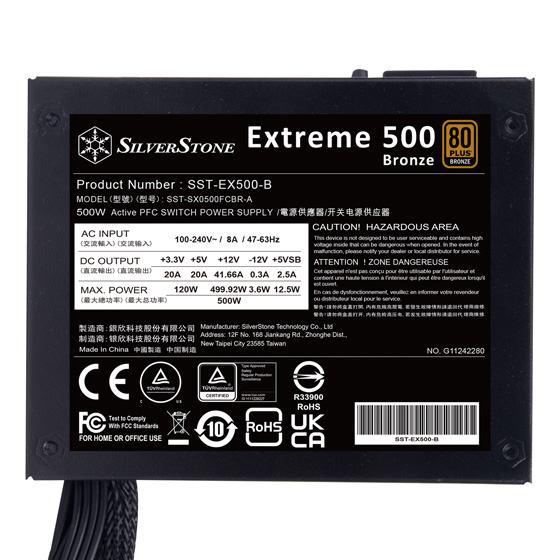

Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 20A 41.66A 2.5A 0.3A
Min.(Amps) 0.0A 0.0A 0.0A 0.0A 0.0A
Range (%) ±5% ±5% ±5% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV

Combined +3.3V & +5V
120W

Combined +12V
499.2W

Input Voltage
90 ~ 264 Vrms

Input Frequency Range
47Hz ~ 63Hz

PFC
Active PFC（PF>0.9 at Full Load）

Efficiency
82% ~ 85% at 20% ~ 100% loading

MTBF
100,000 hours

Operating temperature
0°C ~ 40°C

Protection
Over Current Protection

Over Power Protection

Over Voltage Protection

Short Circuit Protection

Over Temperature Protection

Connectors
1 x 24 / 20-Pin motherboard connector

1 x 8-Pin EPS / ATX 12V connector

1 x 8 / 4-Pin EPS / ATX 12V connector

2 x 8 / 6-Pin PCIe connectors

3 x SATA connectors

2 x 4-Pin Peripheral connectors

1 x 4-Pin Floppy connector

Cooling System

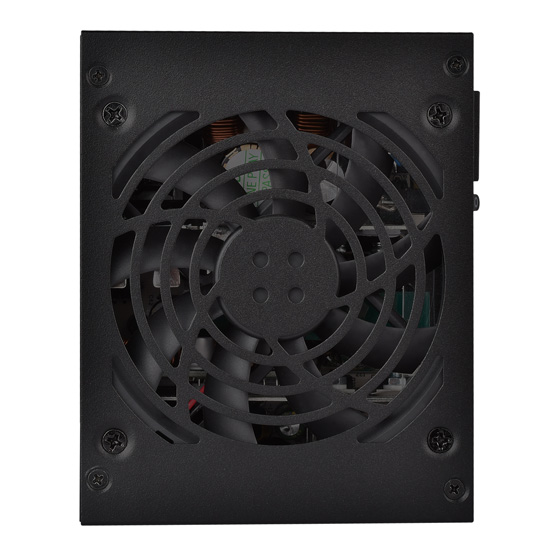

Silent 92mm fan

Noise Level
18 dBA minimum

Certification
80 PLUS Bronze

Form factor
SFX

Dimension
125 mm (W) x 63.5 mm (H) x 100 mm (D)

Weight
1.02 kg

Other
GPU Support list
