Supports 12VHPWR PCIe connector with ATX 3.0 and PCIe Gen 5 standard
High efficiency with Cybenetics Platinum certification
Super flexible black flat cables
100% modular cables
24/7 continuous power output with 50℃ operating temperature
All Japanese electrolytic capacitors

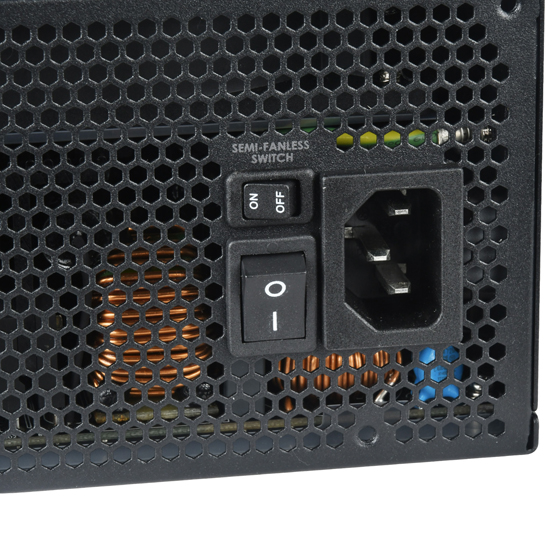

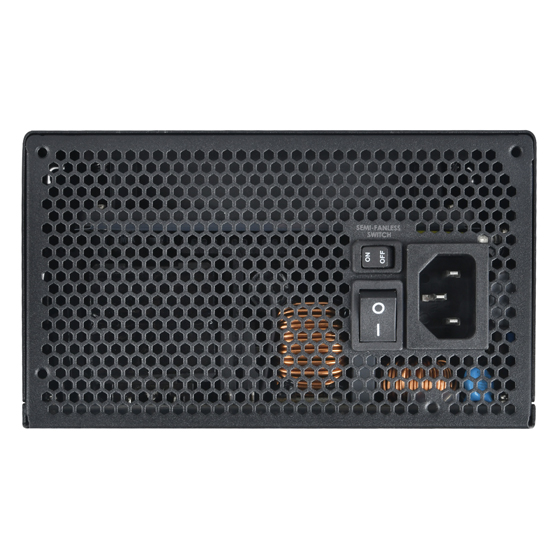

Silent running 120mm FDB fan with semi-fanless and delayed shut-off function
180° angled SATA connectors designed for stack mounted hard drives

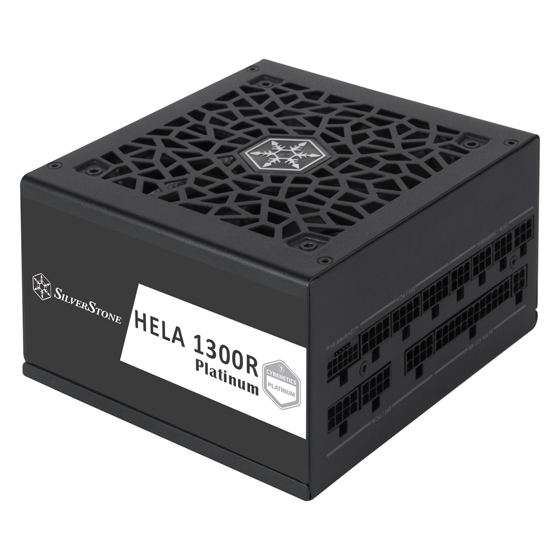

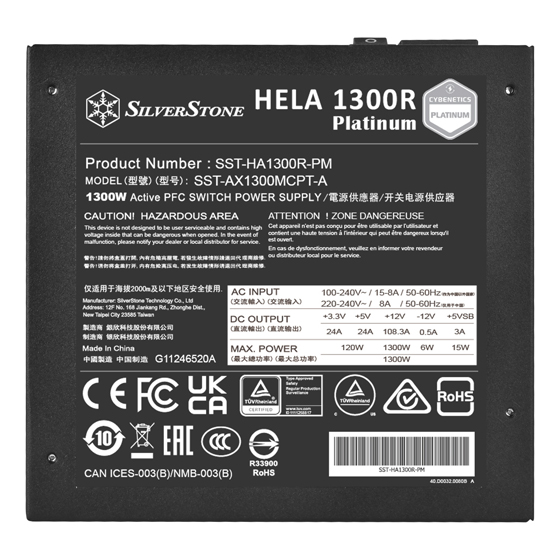

Product No.
SST-HA1300R-PM
Model (safety certification)
SST-AX1300MCPT-A
Color
Black (lead-free paint)
Max. DC Output
1300W
Power density
720W per liter
Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 24A 24A 108.3A 3.0A 0.5A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±5% ±5% +5/-7% ±5% ±5%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 40mV 40mV 80mV 40mV 80mV
Combined +3.3V & +5V
120W
Combined +12V
1300W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
≥89% & <91% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Over Temperature Protection
Short Circuit Protection
Under Voltage Protection
No load operation

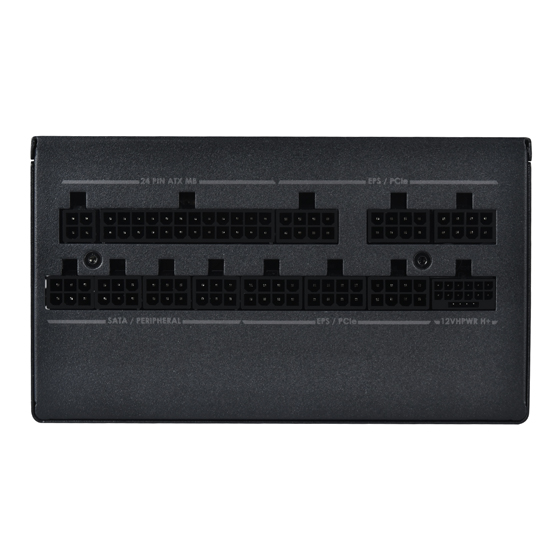

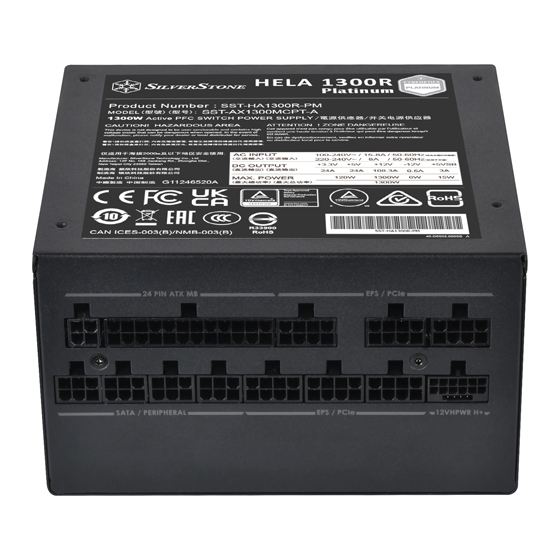

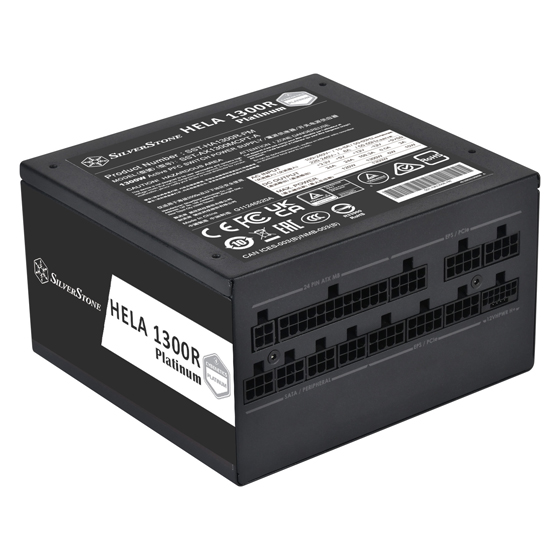

Connectors
1 x 24 / 20-Pin motherboard connector
2 x 4-Pin + 4-Pin ATX 12V connector
1 x 12+4-Pin 12VHPWR connector
8 x 8 / 6-Pin PCIe connectors
8 x SATA connectors
6 x 4-Pin Peripheral connectors
2 x 4-Pin Floppy connectors
Cooling System

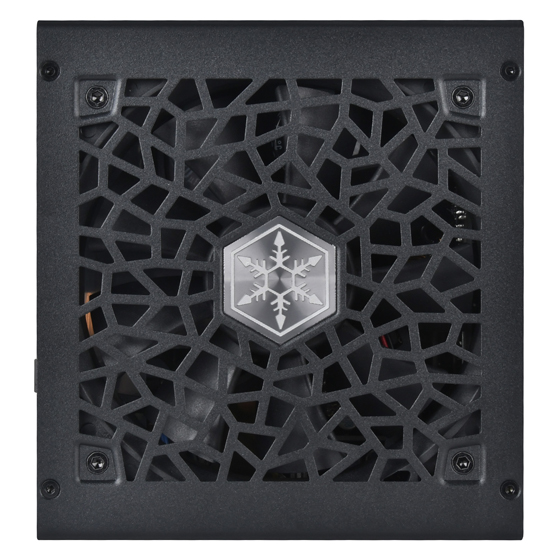

Silent 120mm FDB fan
Noise Level
0 dBA minimum
Certification
Cybenetics Platinum
Form factor
ATX (PS2)
Dimension
150mm (W) x 86mm (H) x 140mm (D)
Weight
2.93 kg
