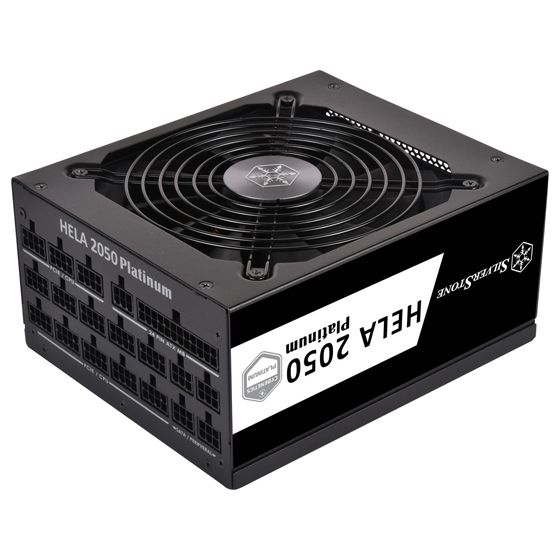

SST-HA2050-PT

SGD 677.06

Availability:Out Of Stock

Compact and high density design with a depth of 180mm for easy integration

Intel ATX12V 2.52 support

Built-in MCU semi-fanless mode to achieve optimized cooling performance

2050W 24/7 continuous power output with 50℃ operating temperature

Super flexible black flat cables

100% modular cables

12-Pin GPU connector support

Product No.
SST-HA2050-PT

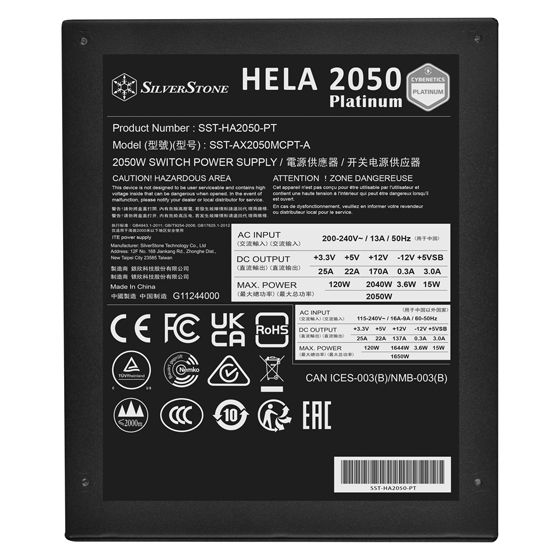

Model (safety certification)
SST-AX2050MCPT-A

Color
Black (lead-free paint)

Max. DC Output
2050W

Power density
882W per liter

Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 25A 22A 170A 3.0A 0.3A
Min.(Amps) 0.0A 0.0A 0.0A 0.0A 0.0A
Range (%) ±3% ±3% ±3% ±5% ±5%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 30mV 30mV 60mV 30mV 60mV

Combined +3.3V & +5V
120W

Combined +12V
2040W

Input Voltage
2050W: 200~240 Vrms | 1650W: 103 ~ 264 Vrms

Input Frequency Range
47Hz ~ 63Hz

PFC
Active PFC (PF>0.95 at full load)

Efficiency
≥89% & <91% overall efficiency

MTBF
100,000 hours

Operating temperature
0°C ~ 50°C

Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection

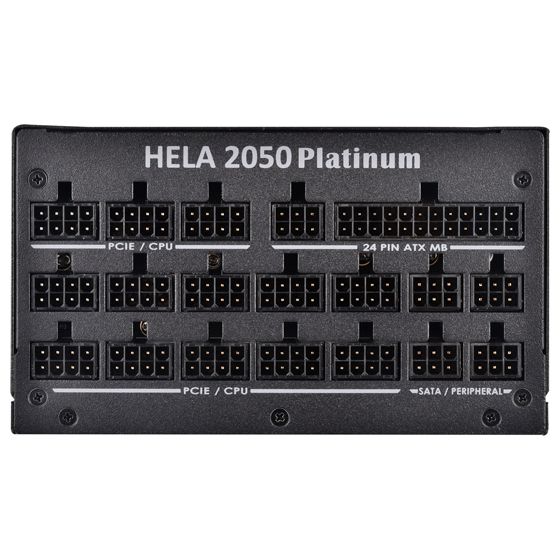

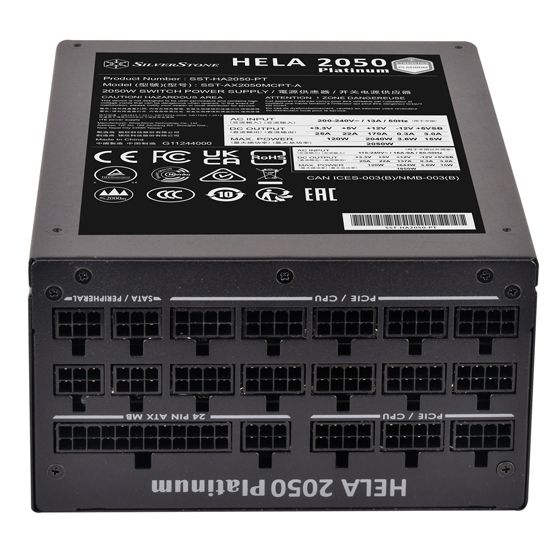

Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connectors
1 x 12-Pin GPU connector
18 x 8 / 6-Pin PCIe connectors
12 x SATA connectors
3 x 4-Pin Peripheral connectors
1 x 4-Pin Floppy connector

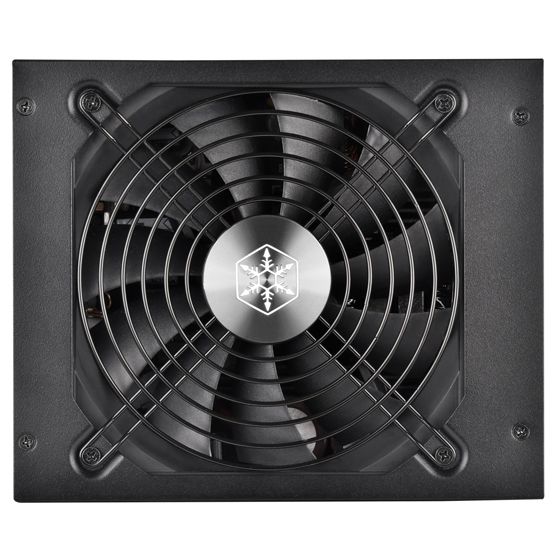

Cooling System
135mm dual ball bearing fan

Noise Level
0 dBA minimum

Certification
Cybenetics Platinum

Form factor
ATX (PS2)

Dimension
150 mm (W) x 86 mm (H) x 180 mm (D)

Weight
4.34 kg

Other

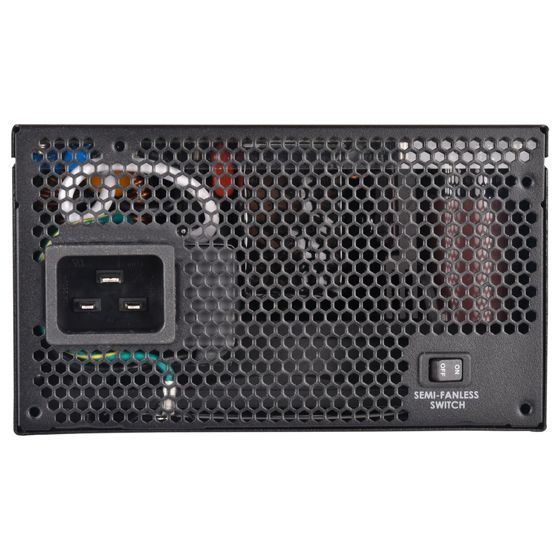

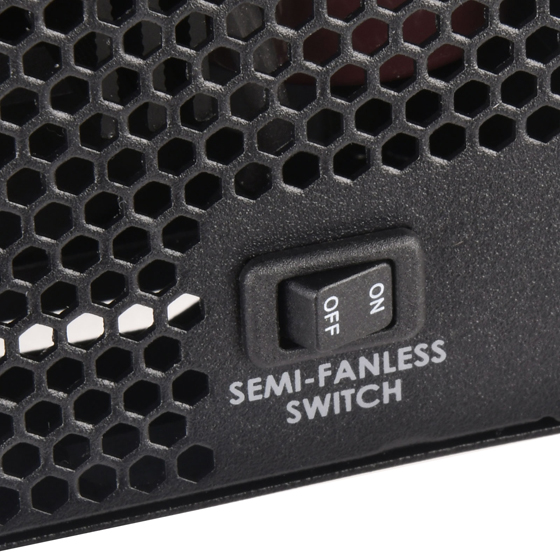

Switch on rear side to activate / de-activate semi-fanless mode
