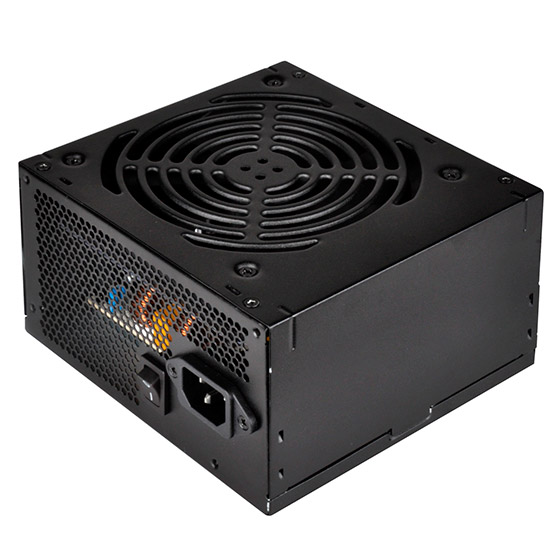

SST-ET650-B V1.4

SGD 100.00

Availability:Out Of Stock

Description

Essential 750W 80 Plus Bronze Single +12V Rail, All Black FLAT cable design

Product No.
SST-ET650-B

Color
Black（Lead-Free Paint）

Max. DC Output
650W

Power density
360W per liter

Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 17A 50A 2.5A 0.3A
Peak (Amps) / / / 3.0A /
Min.(Amps) 0.1A 0.2A 0.5A 0A 0A
Range (%) ±5% ±5% ±5% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV

Combined +3.3V & +5V
120W

Combined +12V
600W

Input Voltage
90 ~ 264 Vrms

Input Frequency Range
47Hz ~ 63Hz

PFC
Active PFC（PF>0.9 at full load）

Efficiency
82% ~ 85% @ 20% ~ 100% loading

MTBF
100,000 hours

Operating temperature
0°C ~ 40°C

Protection
Over current protection

Over power protection

Over voltage protection

Short circuit protection

Over temperature protection

Connectors
V1.1

1 x 24 / 20-Pin motherboard connector（500mm）

1 x 8 / 4-Pin EPS / ATX 12V connector (750mm)

4 x 8 / 6-Pin PCIE connector（”500mm / 150mm” x 2）

6 x SATA connector（”500mm / 150mm / 150mm” x 2）

3 x 4-Pin Peripheral connector（500mm / 150mm / 150mm）

1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm）

V1.4

1 x 24 / 20-Pin motherboard connector（500mm）

*1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (750mm / 150mm)

4 x 8 / 6-Pin PCIE connector（”500mm / 150mm” x 2）

6 x SATA connector（”500mm / 150mm / 150mm” x 2）

3 x 4-Pin Peripheral connector（500mm / 150mm / 150mm）

1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm）

Cooling System

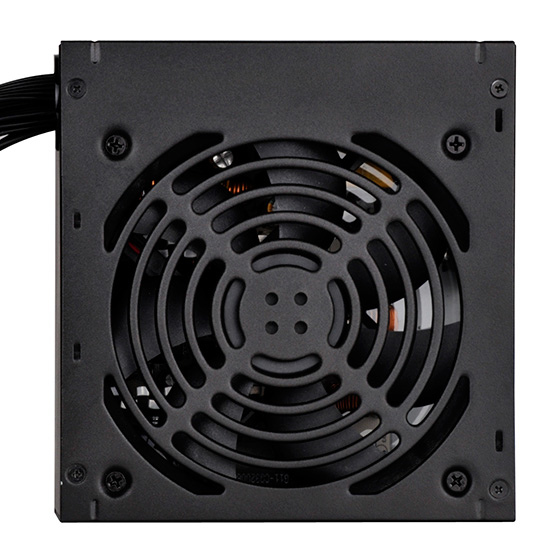

Single 120mm silent fan

Noise Level
18dBA minimum

Certification
80 PLUS Bronze

Form factor
ATX

Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)

Weight
1.59 Kg

Other
GPU Support list
