SST-RM400

SGD 246.79

Availability:Out Of Stock

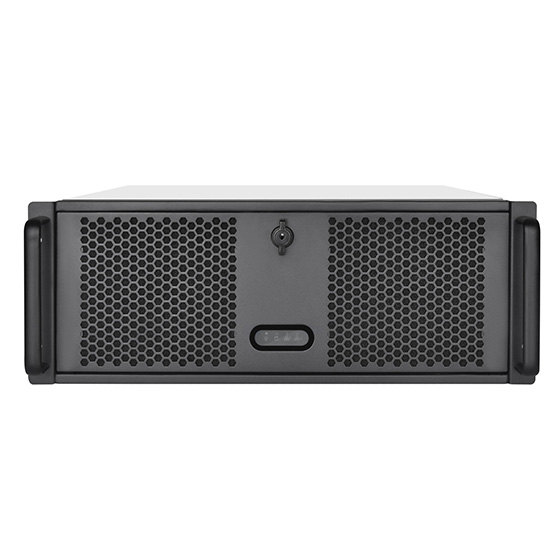

4U RACKMOUNT CHASSIS support up to SSI-CEB MB

Model No.
SST-RM23-502-MINI

Chassis form factor
2U

Model No.
SST-RM400

Chassis form factor
4U

Motherboard
CEB (12″ x 10.5″), ATX (12″ x 9.6″), Micro ATX (9.6″ x 9.6″), Mini-ITX (6.7″ x 6.7″)

Material
SGCC

Main metal thickness
1.2mm

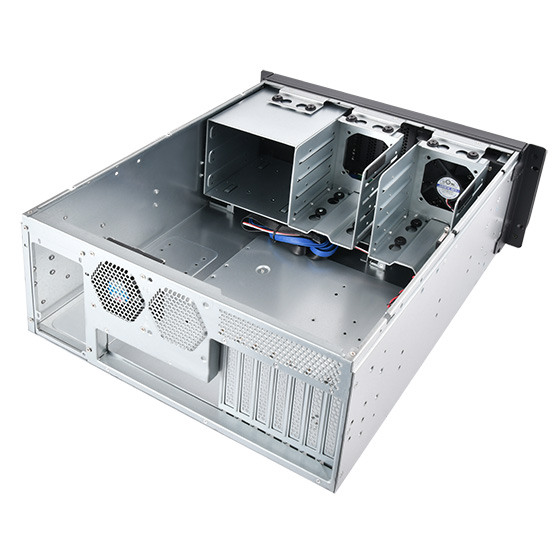

Drive Bay
External
5.25″ drive bay x 3
Internal
8 x 3.5″
2 x 2.5” (up to 15mm)
1 x 2.5” (up to 15mm) or slim optical (12.7mm)

Power Supply
PS2 / ATX / Mini Redundant (supports up to 200mm)

Cooling system

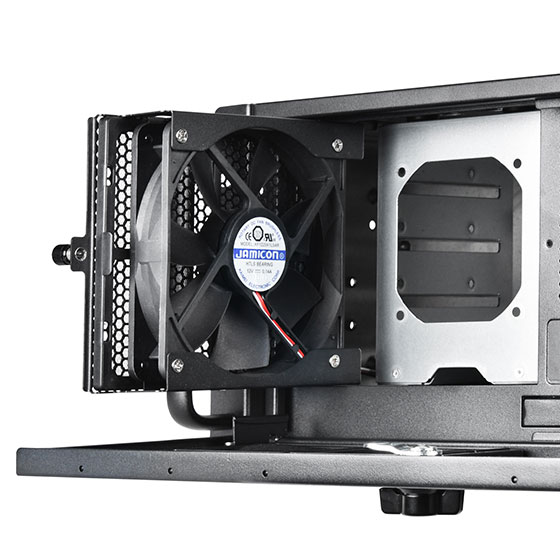

Front
120 x 25mm fan x 1
80 x 25mm fan x 1(fan not included)

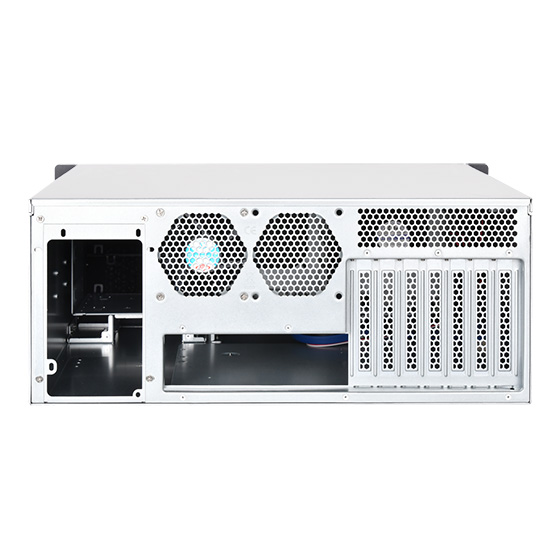

Rear
80 x 25mm fan x 2 (one fan included)

Limitation of CPU cooler
130mm

Expansion card
Compatible up to 8.6” (220mm) in length
Compatible up to 13.3”(339mm) in length with no drives in 3.5” drive cage

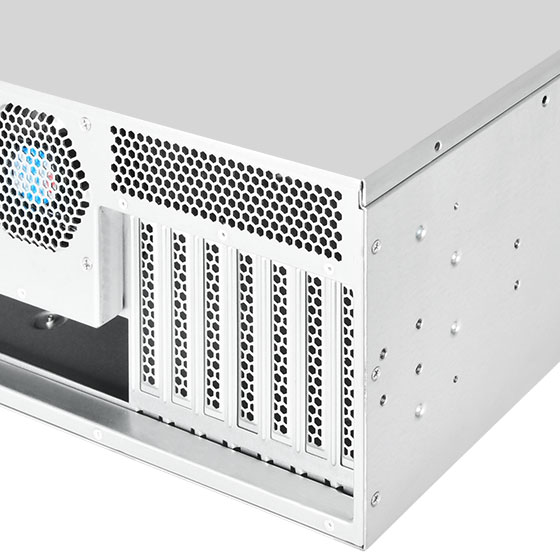

Expansion Slot
Standard profile PCI / PCIe x 7

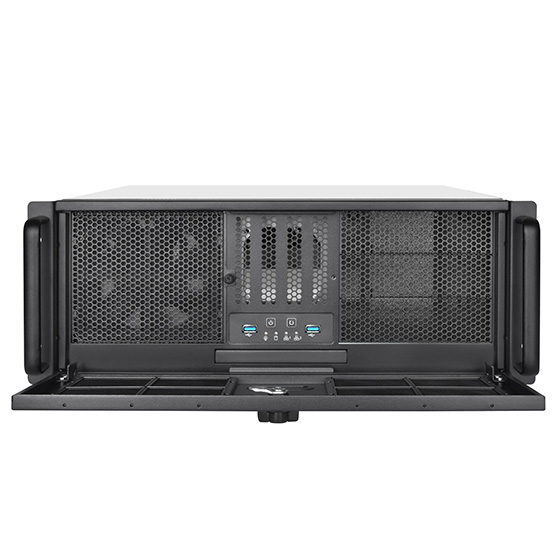

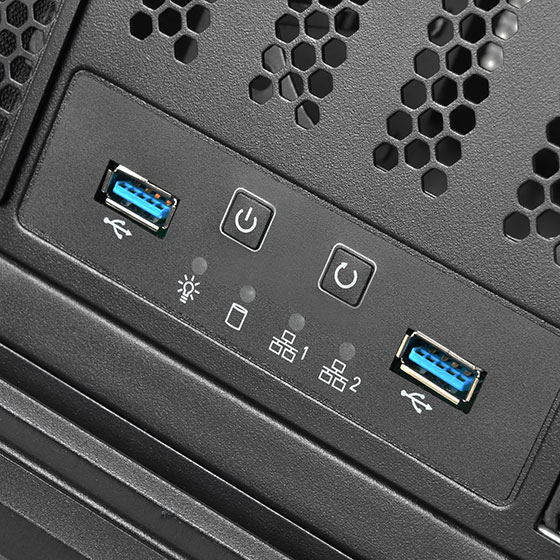

Front I/O Port
USB 3.1 Gen1 Type-A x 2

Front buttons
Power On / Off, system reset

Indicators
Power status x 1, HDD activity x 1, LAN activity x 2

Dimension
430mm (W) x 176mm (H) x 469mm (D)

Net Weight
10.8 kg
