SST-ST1500-GS

SGD 439.45

Availability:Out Of Stock

Description
  • High efficiency with 80 PLUS Gold certification
  • 100% modular cables
  • 24/7 continuous power output with 40℃ operating temperature
  • 1600W peak power
  • Strict ±3% voltage regulation and low ripple & noise
  • Silent running 135mm fan with 18dBA minimum
  • Supports Eight PCI-E 8/6pin connectors
  • Compact design with a depth of 180mm for easy integration

Product No.
SST-ST1500-GS

Color
Black (scratch resistant and lead-free paint)

Max. DC Output
1500W (Peak 1600W)

Power density
646W per liter

Load Range
Output +3.3V +5V +12V1 +12V2 +5VSB -12V
Max.(Amps) 25A 25A 70A 70A 3.5A 0.3A
Peak (Amps) / / / / / /
Min.(Amps) 0.2A 0.2A 0.2A 0.2A 0A 0A
Range (%) ±3% ±3% ±3% ±3% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1% ±2%
Ripple(mVp-p) 50mV 50mV 120mV 120mV 50mV 120mV

Combined +3.3V & +5V
150W

Combined +12V
1440W/120A

Input Voltage
90V~264V

Input Frequency Range
47Hz ~ 63Hz

PFC
Active PFC（PF>0.95 at Full Load）

Efficiency
87%~90%（at 20%~100% loading）

MTBF
100,000 hours

Operating temperature
0°C ~ 40°C

Protection
Over current protection

Over power protection

Over voltage protection

Over temperature protection

Under voltage protection

Short circuit protection

No load operation

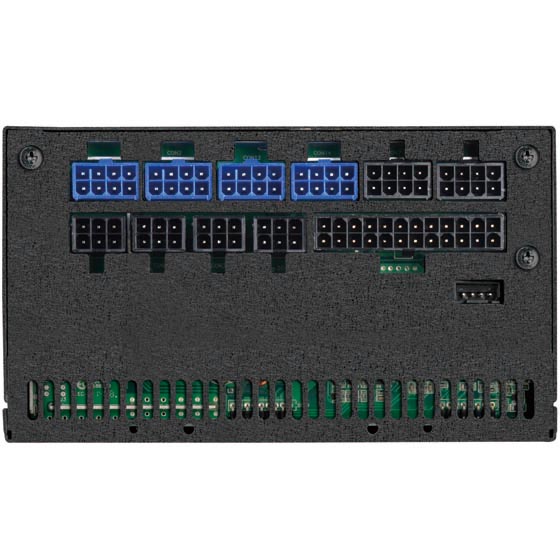

Connectors
1 x 24 / 20-Pin motherboard connector（550mm）

1 x 8 / 4-Pin EPS / ATX 12V connector（750mm）

1 x 8 / 4-Pin EPS / ATX 12V connector（550mm）

8 x 8 / 6-Pin PCIE connector（”550mm / 150mm” x4）

16 x SATA connector（”600mm / 150mm / 150mm / 150mm” x4）

6 x 4-Pin Peripheral connector （”600mm / 150mm / 150mm” x 2）

2 x 4-Pin Floppy connector（”600mm / 150mm / 150mm / 150mm” x 2）

Cooling System

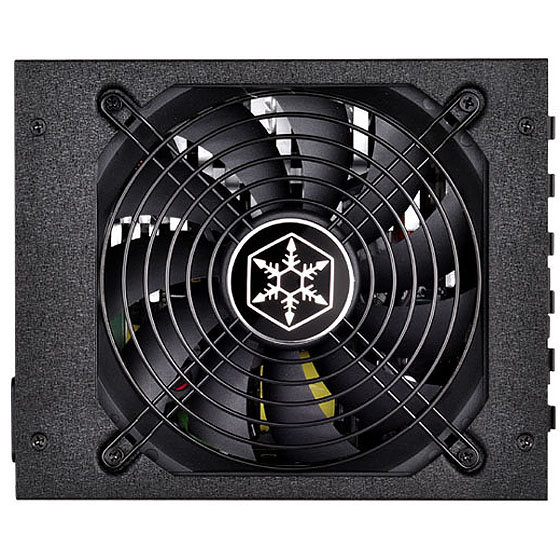

Silent 135mm fan

Noise Level
18dBA-34dBA

Certification
80 PLUS Gold

Form factor
ATX PS/2

Dimension
150 mm (W) x 86 mm (H) x 180 mm (D)

Weight
3.2Kg

Other
GPU Support list
