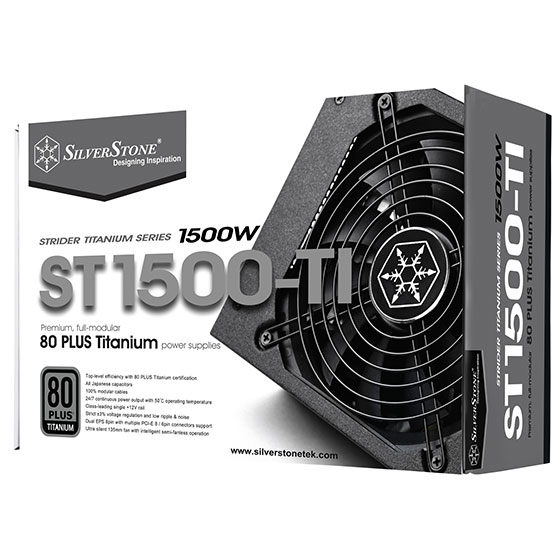

SST-ST1500-TI

SGD 494.50

Availability:Out Of Stock

Description
  • Top-level efficiency with 80 PLUS Titanium certification
  • Japanese electrolytic capacitors
  • 100% modular cables
  • 24/7 continuous power output with 50℃ operating temperature
  • Class-leading single +12V rail
  • Strict ±3% voltage regulation and low ripple & noise
  • Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support
  • Ultra silent 135mm fan with intelligent semi-fanless operation

Product No.
SST-ST1500-TI

Color
Black (lead-free paint)

Max. DC Output
1500W (Peak 1600W)

Power density
646W per liter

Load Range
Output +3.3V +5V +12V1 +12V2 +5VSB -12V
Max.(Amps) 25A 22A 125A / 3.0A 0.3A
Peak (Amps) / / / / / /
Min.(Amps) 0A 0A 0.15A / 0A 0A
Range (%) ±3% ±3% ±3% / ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% / ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV / 50mV 120mV

Combined +3.3V & +5V
120W

Combined +12V
1500W

Input Voltage
90 ~ 264 Vrms

Input Frequency Range
47Hz ~ 63Hz

PFC
Active PFC (PF>0.9 at full load)

Efficiency
90% ~ 94% at 10% ~ 100% loading

MTBF
100,000 hours

Operating temperature
0 ~ 50°C

Protection
Over current protection

Over power protection

Over voltage protection

Short circuit protection

Under voltage protection

Over temperature protection

Connectors
1 x 24 / 20-Pin motherboard connector (550mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (750mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (550mm)
8 x 8 / 6-Pin PCIE connector (“550mm” x 8)
16 x SATA connector (“600mm / 150mm / 150mm / 150mm” x 4)
6 x 4-Pin Peripheral connector (“600mm / 150mm / 150mm” x 2)
1 x 4-Pin Floppy adapter connector (100mm)

Cooling System
Single 135mm silent fan

Noise Level
0 ~ 36 dBA

Certification
80 PLUS Titanium

Form factor
ATX

Dimension
150 mm (W) x 86 mm (H) x 180 mm (D)

Weight
3.96 kg

Other
GPU Support list
