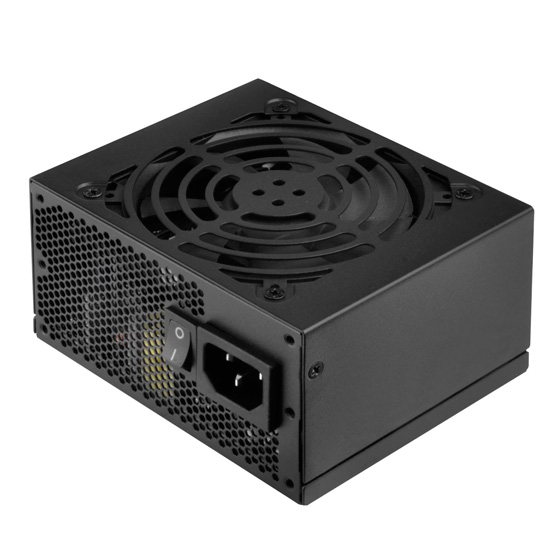

SST-ST30-SF

SGD 81.65

Availability:Out Of Stock

Description
  • Intelligent semi-fanless operation (V1.0 only)
  • Supports standard SFX form factor and ATX via included bracket
  • 300W continuous power output at 50℃ temperature rated for 24/7 operation (V1.0)
  • 300W continuous power output at 40℃ temperature rated for 24/7 operation (V2.0)
  • 80 PLUS Bronze level efficiency (82% ~ 85% efficiency at 20% ~ 100% loading)
  • Class-leading single +12V rail
  • Silent running 80mm fan (V1.0)

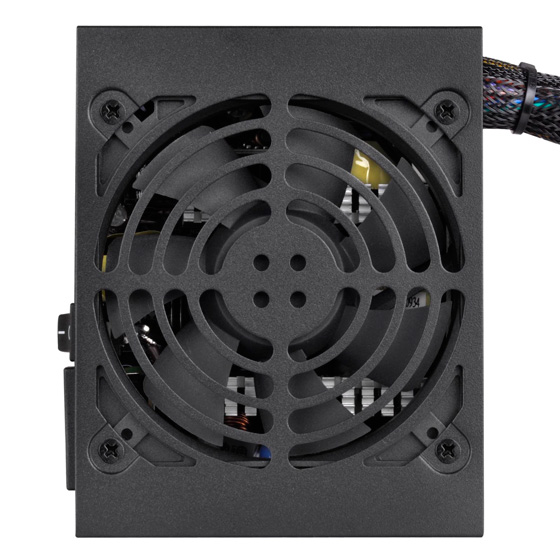

  • Silent running 92mm fan (V2.0)
  • Single PCI-E 6pin connectors support
  • Active PFC

Product No.
SST-ST30SF

Color
Black（Lead-Free Paint）

Max. DC Output
300W

Power density
378W per liter

Load Range
SST-ST30SF (V1.0)

Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 21A 20A 22A 2.5A 0.5A
Peak (Amps) / / / / /
Min.(Amps) 0.1A 0.2A 0.5A 0A 0A
Range (%) ±5% ±5% ±5% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV

Load Range
SST-ST30SF (V2.0)

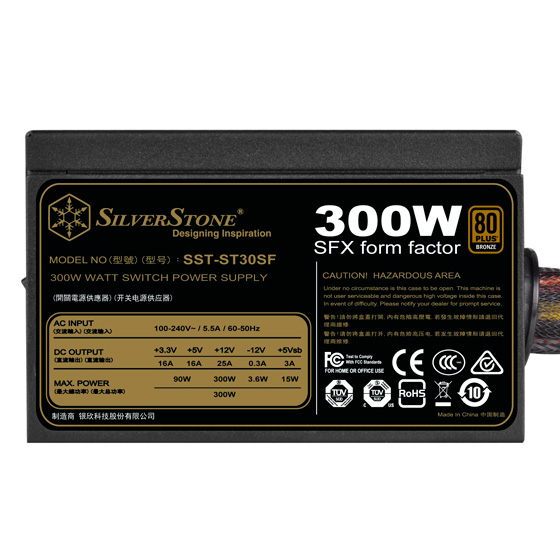

Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 16A 16A 25A 3A 0.3A
Min.(Amps) 0A 0A 0.3A 0A 0A
Range (%) ±5% ±5% ±5% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV

Combined +3.3V & +5V
90W (V2.0)
103W (V1.0)
Combined +12V
300W / 25A (V2.0)

264W / 22A (V1.0)

Input Voltage
90 – 264 Vrms

Input Frequency Range
47Hz ~ 63Hz

PFC
Active PFC（PF>0.9 at Full Load）

Efficiency
82%~85%（20% to 100% loading）

MTBF
100,000 hours

Operating temperature
0 ~ 40℃(V2.0)
10°C ~ 50°C (V1.0)

Protection
Over current protection

Over voltage protection

Short circuit protection

Over power protection (V2.0 only)

Under voltage protection (V2.0 only)

Connectors
1 x 24 / 20-Pin motherboard connector（300mm）

1 x 8 / 4-Pin EPS / ATX 12V connector（400mm）

1 x 6-Pin PCIE connector（400mm）

3 x SATA connector （300mm / 200mm / 100mm）

2 x 4-Pin Peripheral connector （300mm / 200mm）

1 x 4-Pin Floppy connector（300mm / 200mm / 200mm）

Cooling System
Single 92mm silent fan (V2.0)

Single 80mm silent fan (V1.0)

Noise Level
18dBA minimum (V2.0)

0 ~ 38 dBA (V1.0)

Certification
80 PLUS Bronze

Form factor
SFX

Dimension
125 mm (W) x 63.5 mm (H) x 100 mm (D)

Weight
1.0 kg (V2.0)

0.8 kg (V1.0)

Other
Includes SFX to ATX bracket for use in ATX case
