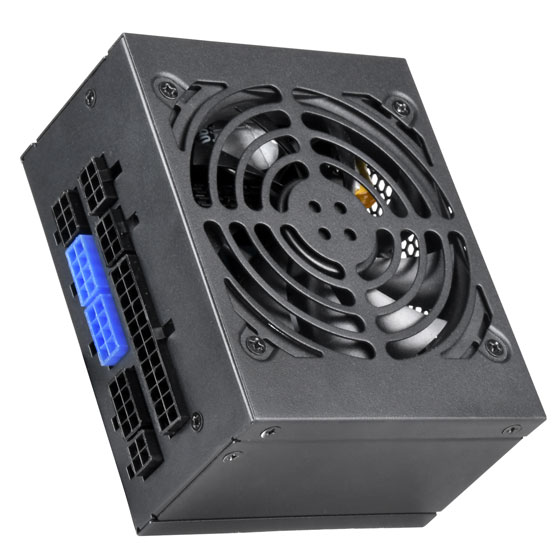

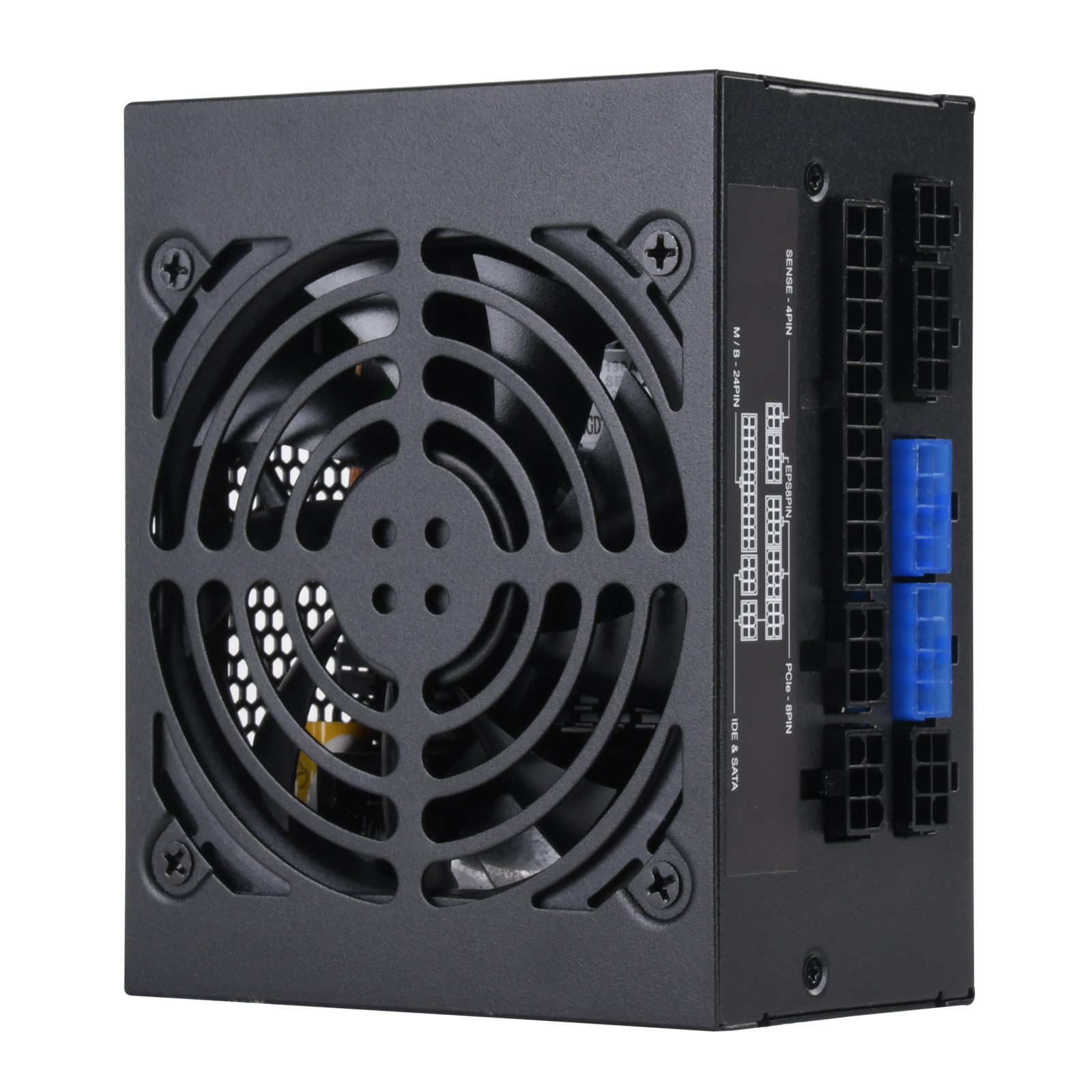

SST-SX500-G V1.1

SGD 127.52

Availability:Out Of Stock

Support standard SFX form factor
Silent running 92mm FDB fan with 18 dBA minimum
All Japanese capacitors
High efficiency with 80 PLUS Gold certification
Class-leading single +12V rail
Strict ±3% voltage regulation and low ripple & noise
100% modular cables
All cables made with flexible flat arrays
Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support (V1.1)

Product No.
SST-SX500-G

Color
Black (Lead-Free Paint)

Max. DC Output
500W

Power density
630W per liter

Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 22A 22A 41.7A 2.5A 0.3A
Peak (Amps) / / / / /
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV

Combined +3.3V & +5V
110W

Combined +12V
500W

Input Voltage
90 ~ 264 Vrms

Input Frequency Range
47Hz ~ 63Hz

PFC
Active PFC (PF>0.9 at full load)

Efficiency
87%~90%（20% to 100% loading）

MTBF
100,000 hours

Operating temperature
0°C ~ 40°C

Protection
Over current protection

Over power protection

Over voltage protection

Short circuit protection

Under voltage protection

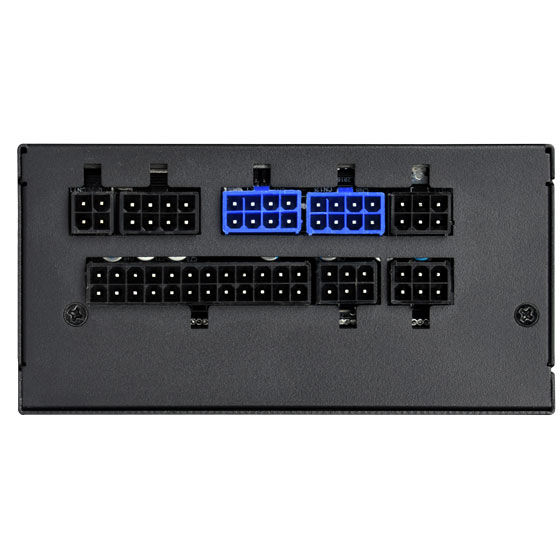

Connectors
V1.0

1 x 24 / 20-Pin motherboard connector (300mm)

1 x 8 / 4-Pin EPS / ATX 12V connector (400mm)

1 x 8 / 6-Pin PCIE connector (400mm)

1 x 8 / 6-Pin PCIE connector (550mm)

6 x SATA connector (“300mm / 220mm / 100mm” x 2)

3 x 4-Pin Peripheral connector (300mm / 200mm / 200mm)

1 x 4-Pin Floppy connector (100mm)

V1.1

1 x 24 / 20-Pin motherboard connector (300mm)

*1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (400mm / 150mm)

1 x 8 / 6-Pin PCIE connector (400mm)

1 x 8 / 6-Pin PCIE connector (550mm)

6 x SATA connector (“300mm / 220mm / 100mm” x 2)

3 x 4-Pin Peripheral connector (300mm / 200mm / 200mm)

1 x 4-Pin Floppy connector (100mm)

Cooling System

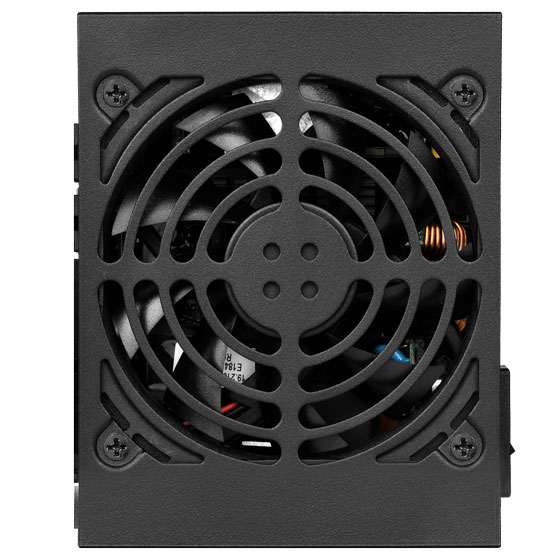

Single 92mm FDB silent fan

Noise Level
18 dBA minimum

Certification
80 PLUS Gold

Form factor
SFX

Dimension
125 mm (W) x 63.5 mm (H) x 100 mm (D)

Weight
1.35 kg

Other
GPU Support list
