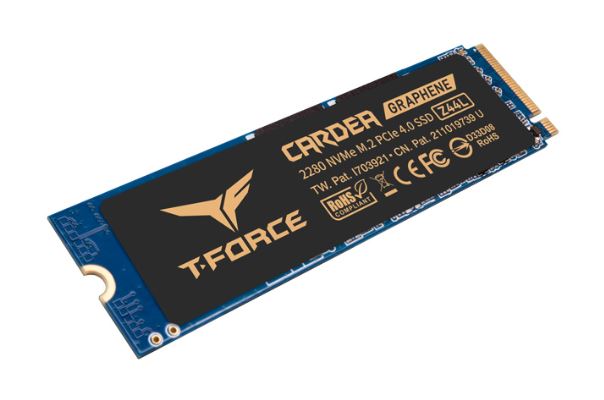

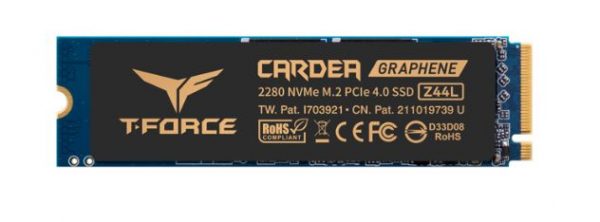

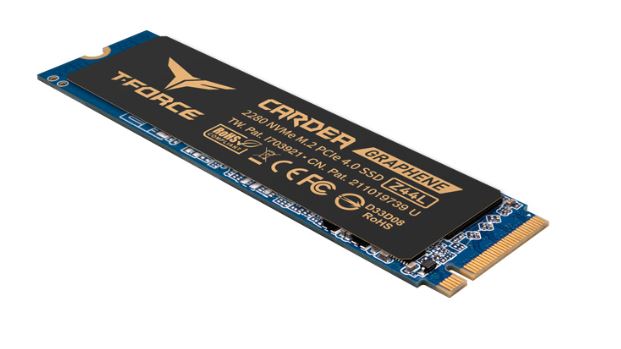

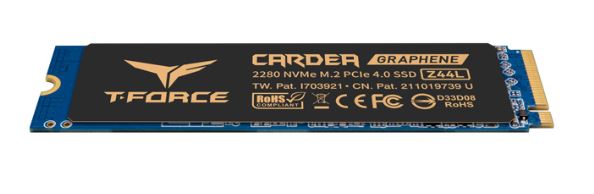

TEAM M.2 PCIe Gen4x4 CARDEA Z44L 1TB

SGD 111.93

Availability:Out Of Stock

Enjoy the read/write performance of PCIe Gen4x4

It supports the latest PCIe Gen4x4 with up to 3500/3200 MB/s[1], offering superior performance which is 7 times faster than typical SATA SSD, while also downward compatible with PCIe 3.0 specification.

Patented ultra-thin graphene heat spreader

The use of patented ultra-thin graphene heat spreader provides the best thermal conductivity material and assembly flexibility, allowing gamers to easily DIY on their own, and any motherboard heat spreader can be supported without interference.

Not only faster but also more stable and durable

Supporting SLC Cache technology and smart algorithm management mechanism can help ensure operational efficiency and maximize the performance of SSD. It is a reliable and trustworthy choice for data storage.

Supports the latest NVMe 1.4 standard

By supporting the latest NVMe 1.4 specification and optimizing the work division mechanism of NVM Sets and PLM (Predictable Latency Mode), it can effectively reduce latency time and the write loss and improve the QoS of the system. The use of the latest RRL (Read Recovery Level) technology can also improve the service life of SSD.

SSD smart monitoring software

TEAMGROUP provides an exclusive SSD smart monitoring software. It can keep track of the status of the products at any time, monitor their quality and performance, and then perform quick and easy related setup and testing.

Five-year warranty offers you peace of mind

The T-FORCE lab has conducted rigorous quality tests and provides a five-year warranty, so you can use it with peace of mind.



Model
CARDEA Z44L

Interface
PCIe Gen4x4 with NVMe

Capacity
1TB

Voltage
DC +3.3V

Operation Temperature
0˚C ~ 70˚C

Storage Temperature
-40˚C ~ 85˚C

DRAM Cache
NO

Terabyte Written (TBW)
1TB – 600TBW

Performance
Crystal Disk Mark:
1TB Read/Write: up to 3500/3000 MB/s

IOPS:
1TB Read/Write: 263K/382K IOPS Max

Weight
7g (PCBA)

Dimensions
80.0(L) x 22.0(W) x 3.7(H) mm

Humidity
RH 90% under 40°C (operational)

Vibration
80Hz~2,000Hz/20G

Shock
1,500G/0.5ms

MTBF
3,000,000 hours

Operating System
System Requirements:
Windows 11 / 10 / 8.1 / 8 / 7 / Vista[4]
Linux 2.6.33 or later

Warranty
5-year limited warranty
