ARM-based SBC with enhanced and better compatibility

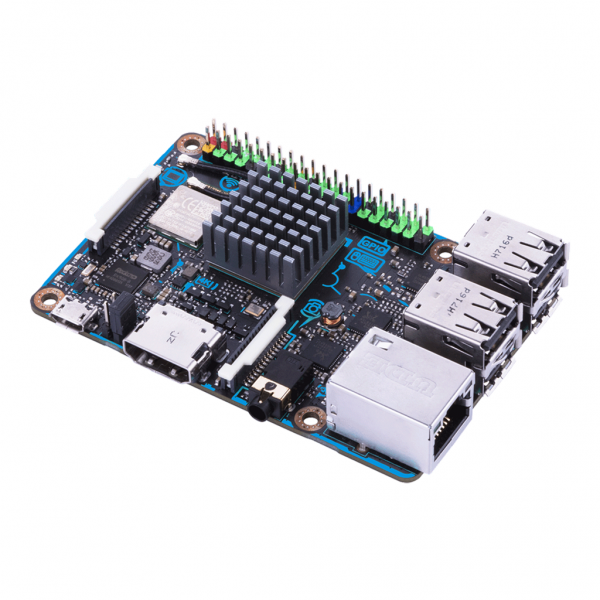

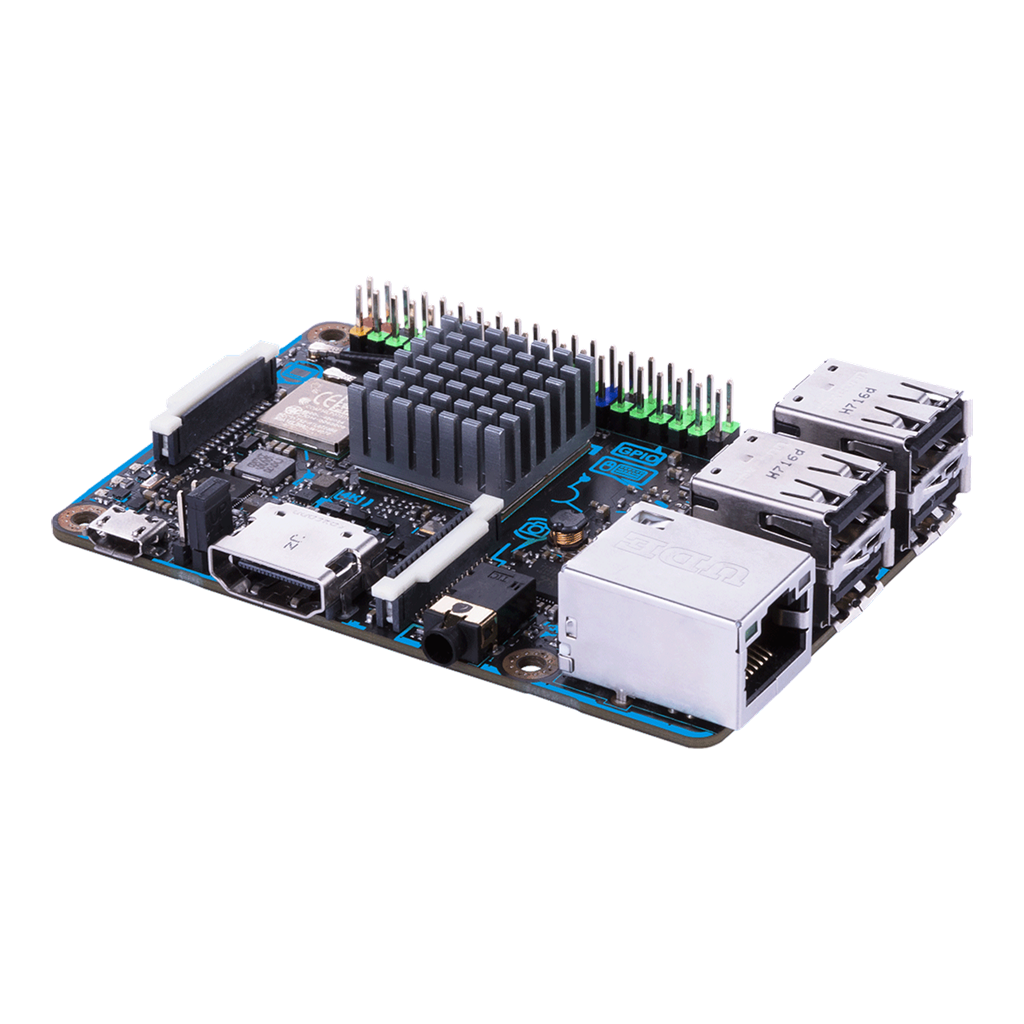

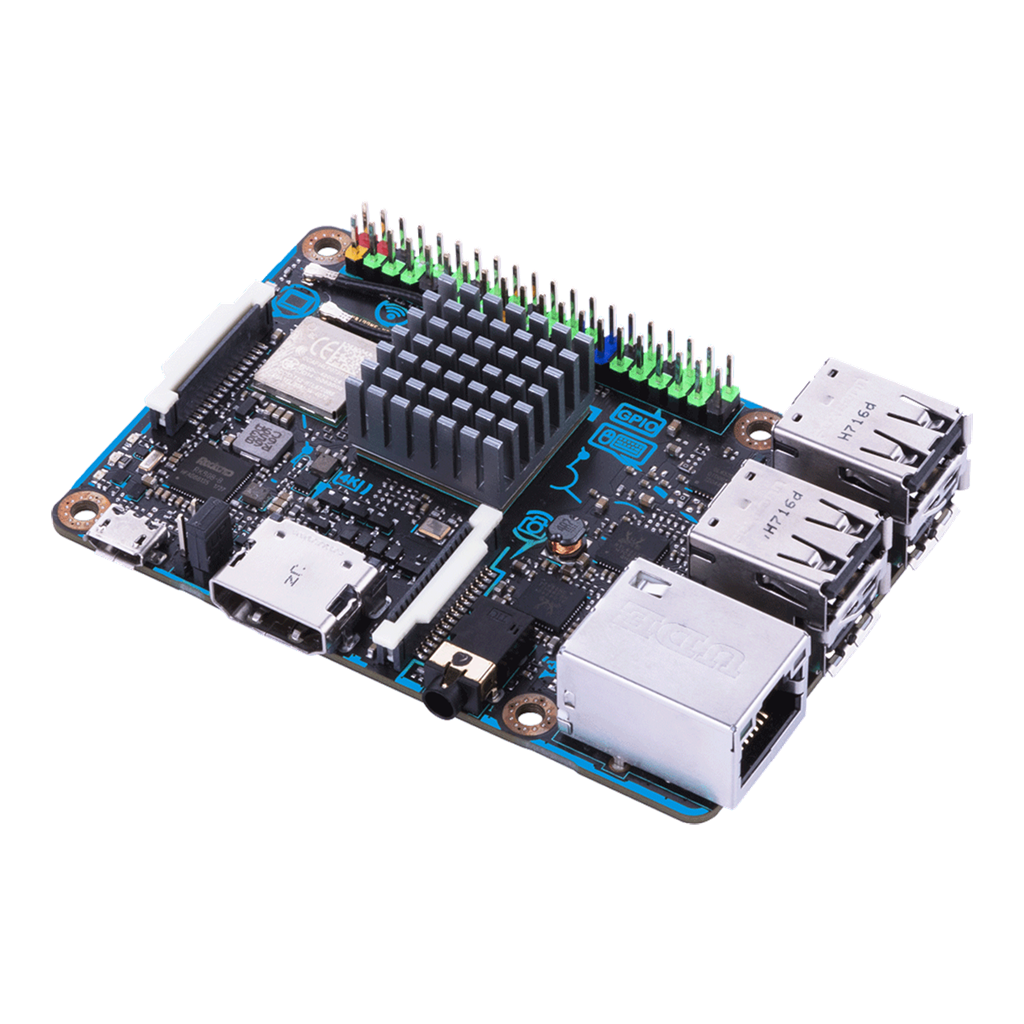

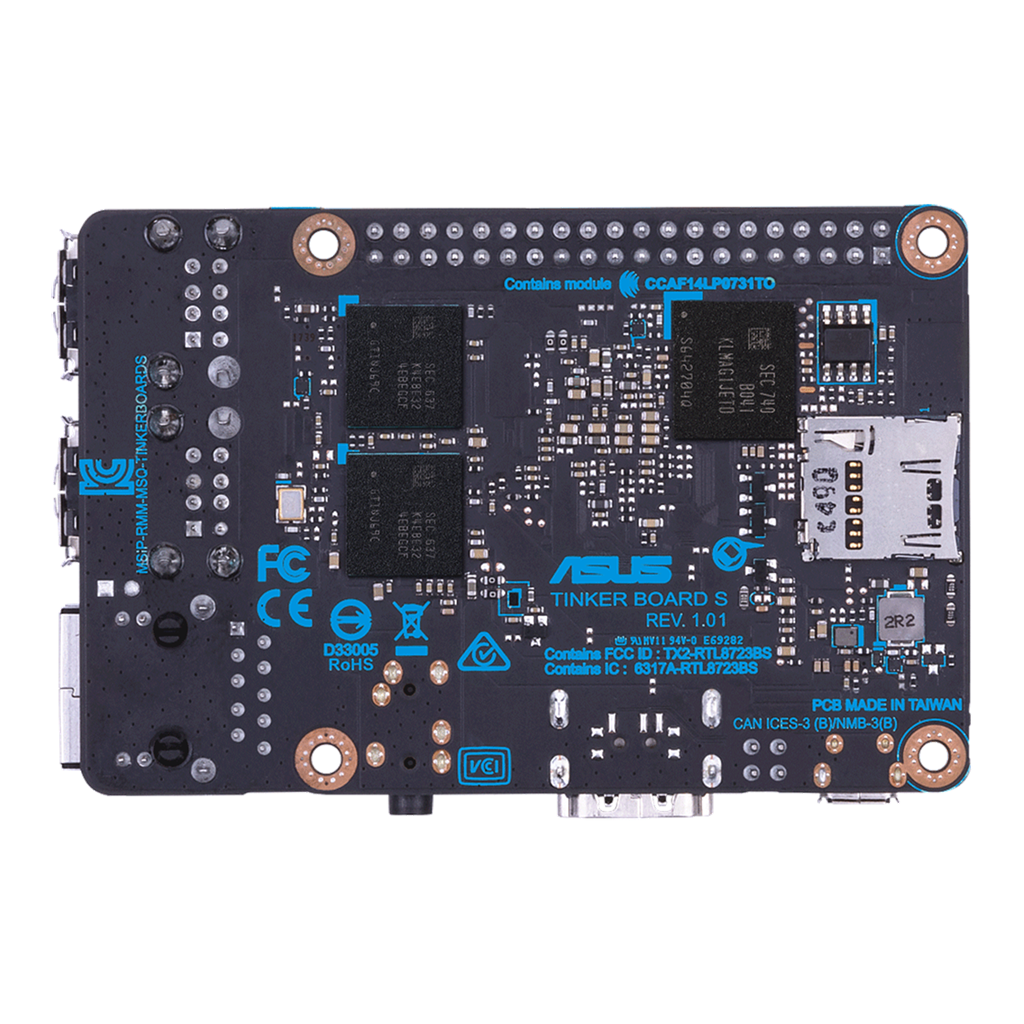

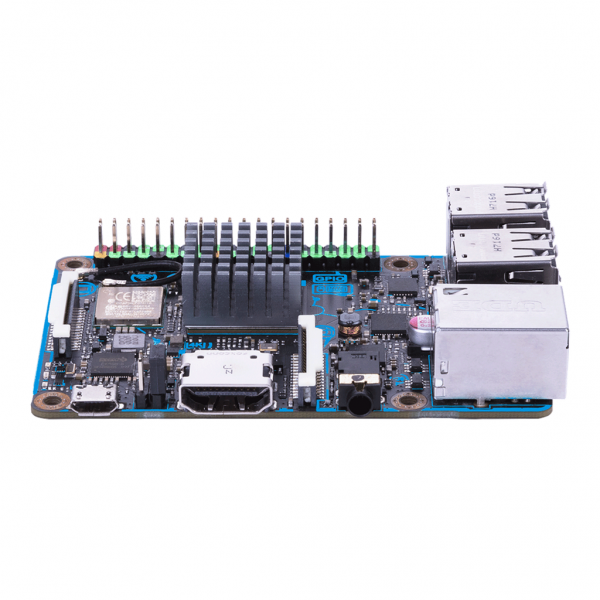

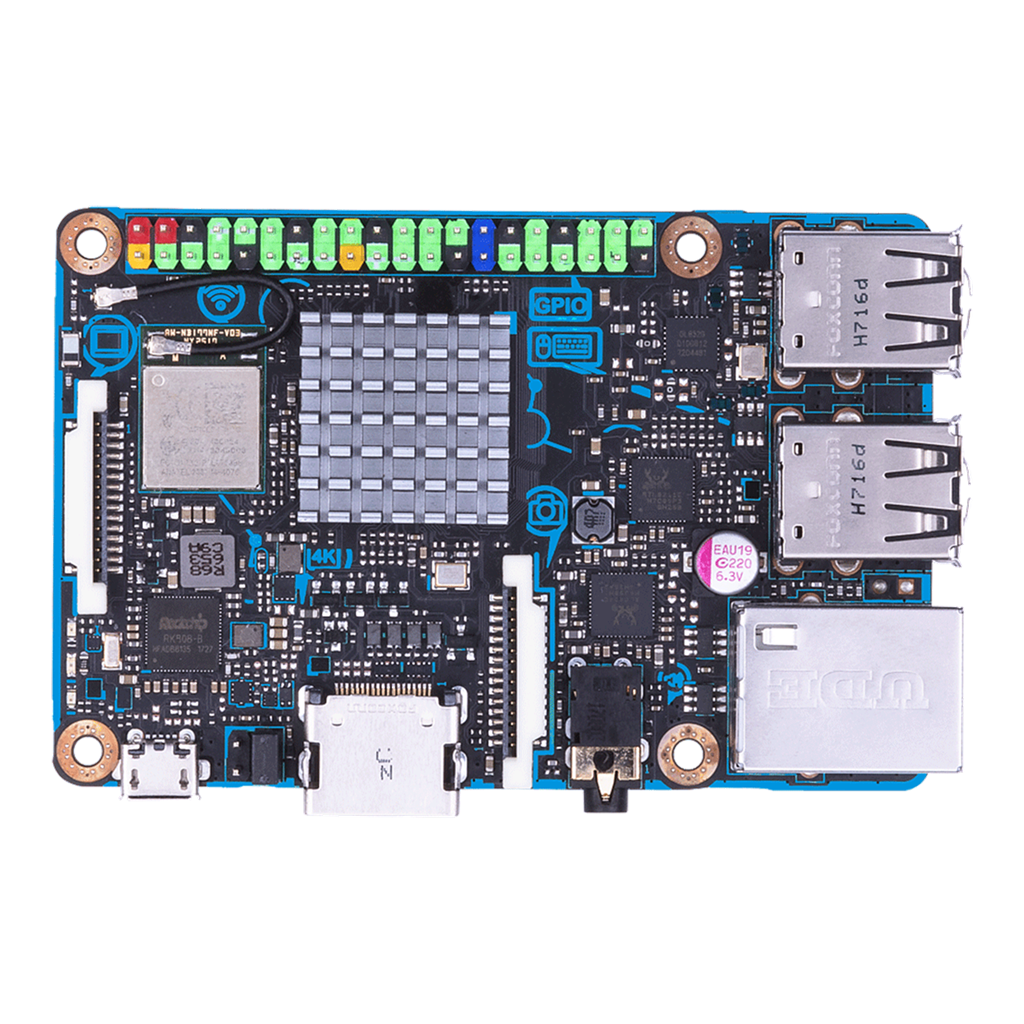

The new and improved Tinker Board S is a single board computer (SBC) that offers greater durability, better stability and an overall improved user experience for DIY enthusiasts and makers everywhere.
CPU
Rockchip Quad-Core RK3288 processor
Memory
2GB Dual Channel DDR3
Graphic
Integrated Graphics Processor
ARM® Mali™-T764 GPU*1
Storage
16GB eMMC
Micro SD(TF) card slot
LAN
RTL GB LAN
Wireless
Data Network 802.11 b/g/n, Bluetooth V4.0 + EDR
Audio
RTL ALC4040 CODEC
USB Ports
4 x USB 2.0
Internal I/O Ports
1 x 40-pin header :
– up to 28 x GPIO pins
– up to 2 x SPI bus
– up to 2 x I2C bus
– up to 4 x UART
– up to 2 x PWM
– up to 1 x PCM/I2S
– 2 x 5V power pins
– 2 x 3.3V power pins
– 8 x ground pins
1 x 2-pin contact pin :
– 1 x PWM
– 1 x S/PDIF
1 x 15-pin MIPI DSI
1 x 15-pin MIPI CSI
Accessories
Passive heatsink*2
User manual
Form Factor
3.37 inch x 2.125 inch ( 8.55 cm x 5.4 cm )
Weight
55g
Environment
Operation temperature: 0℃ ~ 60℃ Non operation temperature: -40℃ ~ 80℃ Non operation humidity: 0% ~ 85% (Non condensing)
Note
*1. The ARM® Quad-Core Mali GPU supports max. resolution of 4K@30hz with H.264/H.265 hardware decoder. *2. Do not touch the SoC or heatsink surface directly to prevent possible burn injury.
